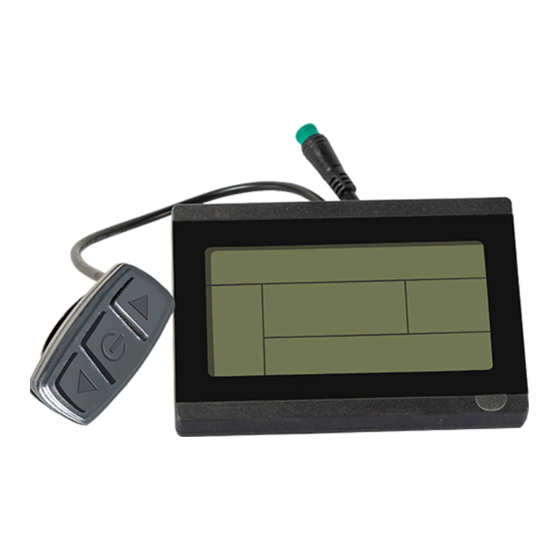

KT-LCD3 Computer User Manual
This bike computer user manual is only for Cyrusher xf 800 operations setting reference.
If you are using other Cyrusher or Lankeleisi Ebikes models, please contact Cyrusher Sports
Team for help.
Bike Computer Screen:
1 / 18
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Cyrusher KT-LCD3
Summary of Contents for Cyrusher KT-LCD3
- Page 1 KT-LCD3 Computer User Manual This bike computer user manual is only for Cyrusher xf 800 operations setting reference. If you are using other Cyrusher or Lankeleisi Ebikes models, please contact Cyrusher Sports Team for help. Bike Computer Screen:...
- Page 2 Cyrusher Sports Team www.cyrusher.com info@cyrusher.com Technical Symbol Definition： There are total 3 Levels Operation Setting: Regular/P Levels/ C Levels, you can only follow Regular > P Levels > C Levels setting. You can not jump one of them and direct go the P or C Levels setting.
- Page 3 Cyrusher Sports Team www.cyrusher.com info@cyrusher.com Regular Operation Setting： 1. Turn on/ Turn off bike computer: Press for seconds to turn or turn off the bike computer; if the motor stops over 5 minutes without any movement and the bike computer will automatically shut down.
- Page 4 Cyrusher Sports Team www.cyrusher.com info@cyrusher.com 4. Increase/ Decrease PAS Level: After turning on the bike computer and press to increase the PAS Level (Assist 1-5) and Press to decrease PAS level (Assist 1-5). 5. Active Cruise Control Mode(Optional): If bike motor speed is greater than 7 km/ h, hold for 3 seconds button to active the cruise control.
- Page 5 Cyrusher Sports Team www.cyrusher.com info@cyrusher.com Single Riding Time Single Riding Distance Total Riding Time Total Riding Distance 5 / 18...
- Page 6 Cyrusher Sports Team www.cyrusher.com info@cyrusher.com Single Riding Average Speed Single Riding Max Speed Motor Working Voltage 7. Clear Single Trip Distance and Riding Time Press together for 2 seconds after turning on bike computer over 5 seconds. When you see LCD image-TM and DST are flashing as below and press to clear the TM and DST data.
- Page 7 Cyrusher Sports Team www.cyrusher.com info@cyrusher.com 8. Set Max Speed Limit Range: 1-72KM XF800 default setting code is 72KM ( which means no limit on speed) Press together for 2 seconds after turning on bike computer within 5 seconds. When see the max speed is flashing as image below and press to change the Max speed setting.
- Page 8 Cyrusher Sports Team www.cyrusher.com info@cyrusher.com the rim data is flashing, press to change the data of rim diameter. 10. Speed Unit Preference Setting After setting wheel rim diameter, press to switch speed unit changes setting. When you see the MPH/ Km/H and Mil/Km are flashing, press to change Speed Unit you prefer.
- Page 9 Cyrusher Sports Team www.cyrusher.com info@cyrusher.com This technical setting is only for engineer setting, do not modify or change the setting. P2: Wheelset Speed Pulse Setting Rage:0-16, XF800 default code is 1; press to change data required. Press switch to P2, This technical setting is only for engineer setting, do not modify or change the setting.
- Page 10 Cyrusher Sports Team www.cyrusher.com info@cyrusher.com This technical setting is only for engineer setting, do not modify or change the setting. P4: Throttle Active Mode Setting (Zero boost or Non-Zero Boost Setting) Range: 0-1, 0 means zero boost; 1 means non zero boost.
- Page 11 Cyrusher Sports Team www.cyrusher.com info@cyrusher.com Press switch to P5, press to change data required. This technical setting is only for engineer setting, do not modify or change the setting. Please note above setting from 8 to 10, need to press one time or hold on for 2 seconds to turn off after each setting to save changed data.
- Page 12 Cyrusher Sports Team www.cyrusher.com info@cyrusher.com C3.PAS Restart Memory Setting Range: 0-8, XF800 default code is 8; 0— Restart Memory at PAS0; 1— Restart Memory at PAS1; 2— Restart Memory at PAS2; 3— Restart Memory at PAS3; 4— Restart Memory at PAS4;...
- Page 13 Cyrusher Sports Team www.cyrusher.com info@cyrusher.com C5. Controller Max Current Setting. Range:0-10, XF800 default code is 10; press to change data required. Press switch to C5, Those technical setting are only for engineer setting, do not modify or change the setting.
- Page 14 Cyrusher Sports Team www.cyrusher.com info@cyrusher.com Range: 0-1，XF800 default code is 0; 0- Inactive cruise control function, 1-active cruise control function; press to change data required. Press switch to C7, C8. Motor Working Temperature Setting. Range: 0-1 ， XF800 default code is 0;...
- Page 15 If you forget your password, it may require extra tool and cost to help to restart the bike computer and Cyrusher will not take any responsibility for the password setting made by customer. We highly recommend you do not active the password protection by other methods to protect your e-bike.
- Page 16 Cyrusher Sports Team www.cyrusher.com info@cyrusher.com If C10= y, Remember you need to press for 2 seconds to confirm the saved data and restart the bike computer. If C10= n, press switch to C11, for other setting. C11. LCD Feature Setting.
- Page 17 Cyrusher Sports Team www.cyrusher.com info@cyrusher.com C13. Controller ABS Braking /Anti - Reverse Charge Setting. Range:0-5, XF800 default code is 0, This technical setting is only for engineer setting, do not modify or change the setting. C14. PAS Adjustment Setting. Range:1-3, XF800 default code is 2, This technical setting is only for engineer setting, do not modify or change the setting.
- Page 18 Cyrusher Sports Team www.cyrusher.com info@cyrusher.com Error Codes: 18 / 18...
