SERVICE MANUAL
®
Rocket
CRAFT™
and
DUOVAC™
Oocyte Aspiration Pumps

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CRAFT and is the answer not in the manual?

Questions and answers

Related Manuals for Rocket Medical CRAFT

Summary of Contents for Rocket Medical CRAFT

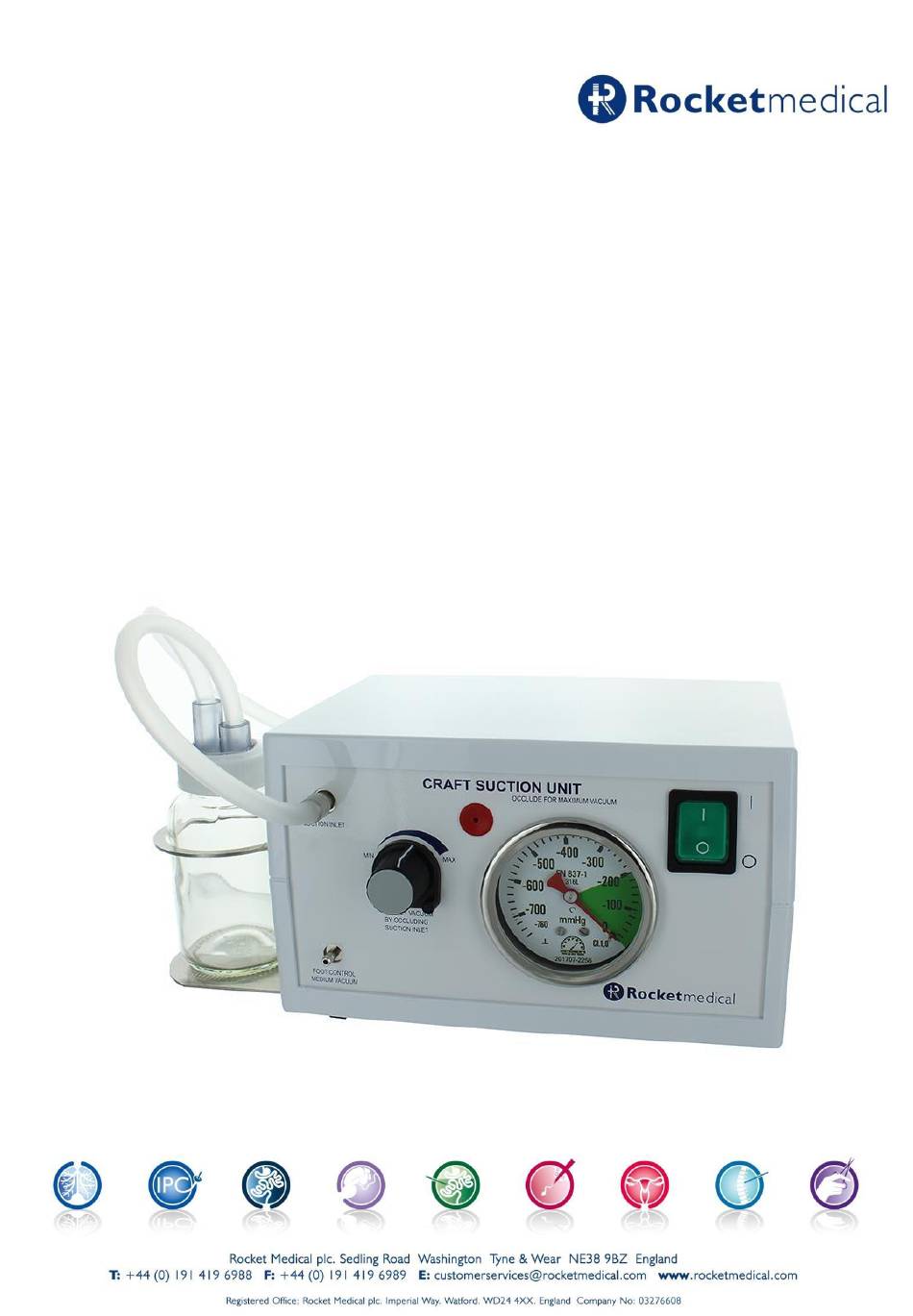

  • Page 1 SERVICE MANUAL ® Rocket CRAFT™ DUOVAC™ Oocyte Aspiration Pumps...

  • Page 2: Table Of Contents

    2. GENERAL ASSEMBLY .............................. 3 2.1. Rocket CRAFT™ DUO-VAC Suction Pump ......................3 2.2. Rocket CRAFT™ DUO-VAC Suction Pump – Internal View ................4 2.3. Rocket CRAFT™ Suction Pump .......................... 5 2.4. Rocket CRAFT™ Suction Pump – Internal View ....................6 3.

  • Page 3: General Assembly

    3. Vacuum Display mmHg 4. Footswitch connection ports 5. Water trap connection port – recommended for use with R57685 Rocket Craft Pump Water Trap Sets 6. Water Trap Set comprising glass bottle, bung, angled connectors, silicone tube set. Recommended for use with R57685 Rocket Craft Pump Water Trap Sets 7.

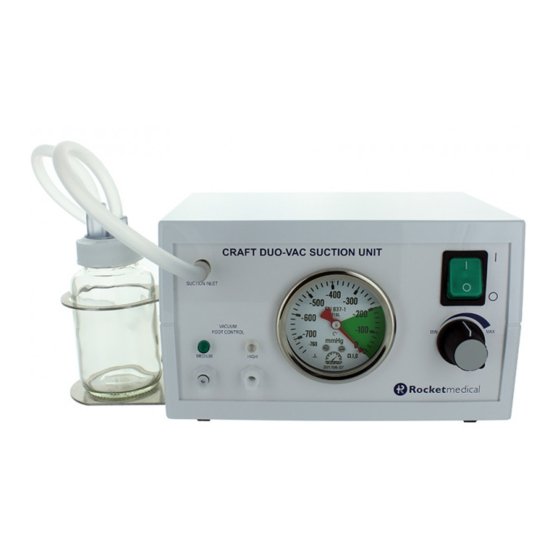

  • Page 4: Rocket Craft™ Duo-Vac Suction Pump - Internal View

    Rocket CRAFT™ Oocyte Aspiration Pumps – Service Manual 2.2. Rocket CRAFT™ DUO-VAC Suction Pump – Internal View 1. Vacuum gauge 0-700mmHg – normal range 50-440mmHg 2. Illuminated O/I Mains Power On/Off 3. Motor 220VAC 50Hz, 110VAC 60Hz – model dependant 4.

  • Page 5: Rocket Craft™ Suction Pump

    Rocket CRAFT™ Oocyte Aspiration Pumps – Service Manual 2.3. Rocket CRAFT™ Suction Pump 1. Illuminated O/I Mains Power On/Off 2. Vacuum Display mmHg 3. High Vacuum (440mmHg-1) control button 4. Vacuum Control – clockwise to increase, anticlockwise to decrease the set value 5.

  • Page 6: Rocket Craft™ Suction Pump - Internal View

    Rocket CRAFT™ Oocyte Aspiration Pumps – Service Manual 2.4. Rocket CRAFT™ Suction Pump – Internal View 1. Vacuum gauge 0-700mmHg – normal range 50-440mmHg 2. Illuminated O/I Mains Power On/Off 3. Motor 220VAC 50Hz, 110VAC 60Hz – model dependant 4. Vacuum outlet port 5.

  • Page 7: General Description

    3.3. REFERENCES: Craft I, McLeod F. Edmonds K, ‘Human embryo transfer technique’. Lancet 1961 ii 1104-5 Craft I, Diahanbakch O. McLeod F et al ‘Human pregnancy following oocyte and sperm transfer to the uterus.’ Lancet 1992 i 1031-3 Craft I, (1984) ‘Clinical Methodology’ British Journal of Hospital Medicine 90-102...

  • Page 8: General Information

    Rocket CRAFT™ Oocyte Aspiration Pumps – Service Manual 4. GENERAL INFORMATION 4.1. COPYRIGHT WARNING: This manual contains information that is subject to copyright. All rights reserved. READ THIS MANUAL CAREFULLY: Please This manual should not be photocopied, duplicated or distributed completely or in part familiarise yourself with without the written approval of Rocket Medical plc.

  • Page 9: Service Agents

    Rocket CRAFT™ Oocyte Aspiration Pumps – Service Manual 4.5. SERVICE AGENTS: Rocket Craft™ Pumps typically require only annual maintenance; however it is recommended they are serviced and calibrated annually at an approved Rocket Medical plc service facility. Failure to service the pump at the indicated intervals may invalidate the Warranty.

  • Page 10: Supply Voltage Selection

    4.9. POSITIONING and PLACEMENT of the DEVICE WARNING: ELECTRIC SHOCK Rocket CRAFT™ Oocyte Aspiration Pumps must be placed on a secure, level surface, HAZARD. away from sources of heat, water splashes, mists or cooling vents. Do not expose to direct Do not immerse the sunlight.

  • Page 11: Symbols Used On Craft Suction & Duo-Vac Pumps

    Rocket CRAFT™ Oocyte Aspiration Pumps – Service Manual 4.10. SYMBOLS USED ON CRAFT SUCTION & DUO-VAC PUMPS. These tables describe their respective meanings. Mains Power ON/OFF This device is Type B CE Mark 4.11. SYMBOLS USED ON R57685 PATIENT CONNECTION SET.

  • Page 12: General Information

    For short term operation only. This device is not indicated for continuous drainage. 5.4. References: Craft I, McLeod F. Edmonds K, ‘Human embryo transfer technique’. Lancet 1961 ii 1104-5 Craft I, Diahanbakch O. McLeod F et al ‘Human pregnancy following oocyte and sperm transfer to the uterus.’ Lancet 1992 i 1031-3 Craft I, (1984) ‘Clinical Methodology’...

  • Page 13: Annual Service

    Rocket CRAFT™ Oocyte Aspiration Pumps – Service Manual 6. ANNUAL SERVICE 6.1 Replacing the filter element 1. Lay the pump on a clean surface, protecting the casing from scratches. 2. Remove 4 screws from the casing underside and WARNING: retain ELECTRIC SHOCK HAZARD.
  • Page 14 Rocket CRAFT™ Oocyte Aspiration Pumps – Service Manual 6. Life out the filter assembly and remove the filter. 7. Fit new replacement filter P/N: E05-000 8. Replace filter, ensuring the top seats securely into the chamber. 9. Avoid trapping or pinching the ‘O’...

  • Page 15: Replacing The Pump Valve & Diaphragm Set

    Rocket CRAFT™ Oocyte Aspiration Pumps – Service Manual Replacing the pump valve & diaphragm set 1. Locate the pump silencer housing  and carefully remove with a gentle twisting movement. 2. Using a diagonal method, remove the 4 screws securing the pump valve head.
  • Page 16 Rocket CRAFT™ Oocyte Aspiration Pumps – Service Manual 4. Undo and remove the centre Pozi drive screw to release the valve plate. 5. Carefully remove valve plate from head moulding with a twisting motion to separate the two halves 6. Valve gasket and valve plate.
  • Page 17 Rocket CRAFT™ Oocyte Aspiration Pumps – Service Manual 8. Undo and remove the centre Pozi drive screw from the pump diaphragm retaining plate 9. Retain retaining plate and screw, discard old diaphragm 10. Replace diaphragm with P/N: DO1-053 11. Re-assemble and tighten sufficient to secure the retaining plate.

  • Page 18: Reassembling The Valve Set

    Rocket CRAFT™ Oocyte Aspiration Pumps – Service Manual Reassembling the valve set 1. Ensure the valve plates are orientated as in the image (right). VERY IF THIS ORIENTATION IS IMPORTANT REVERSED, THE VALVE AND PUMP WILL FAIL TO OPERATE 2. Replace the valve gasket...
  • Page 19 Rocket CRAFT™ Oocyte Aspiration Pumps – Service Manual 4. Reseat the pump head gasket P/N: GO1-001 5. Replace the valve head assembly onto the gasket, ensure the holes are correctly aligned and the gasket with seated correctly. 6. Tighten the valve head...

  • Page 20: Repairs & Replacements

    Rocket CRAFT™ Oocyte Aspiration Pumps – Service Manual 7. REPAIRS & REPLACEMENTS Replacing the DUO-VAC Footswitch Connectors The front panel connectors of the DUO-VAC can be subject to damage through misuse or repeated over-stressing of the retaining clips on connection of the footswitch.

  • Page 21: Replacing The Gauge In Duo-Vac & Suction Pump Models

    Rocket CRAFT™ Oocyte Aspiration Pumps – Service Manual Replacing the gauge in DUO-VAC & Suction Pump models: 1. Remove upper casing. (See Section 6) 2. Lift the front panel out of the retaining grooves on the lower case 3. Loosen and remove the securing nuts or screws (ringed right).

  • Page 22: Bottle Bracket Replacement Using Service Kit B02-190S

    Rocket CRAFT™ Oocyte Aspiration Pumps – Service Manual Bottle Bracket Replacement using Service Kit B02-190S IMPORTANT Copyright© 2012-19 Rocket Medical plc. . All rights reserved. ZDOCK226 Rev:9 25/02/19...

  • Page 23: Final Testing

    Rocket CRAFT™ Oocyte Aspiration Pumps – Service Manual 8. FINAL TESTING: 1. Final testing should be completed with a validated and independently calibrated electronic vacuum gauge or similar device. 2. Required operating scale: 10-500mmHg in 1mmHg increments 3. Attach the vacuum test...

  • Page 24: Fuse Replacement

    Rocket CRAFT™ Oocyte Aspiration Pumps – Service Manual 9. FUSE REPLACEMENT: WARNING: ELECTRIC SHOCK 1. Two 0.5A fuses are HAZARD. located in the main power The equipment is to be socket mounted on the used only with electrical rear panel...

  • Page 25: Cleaning The Pump Casing

    Rocket CRAFT™ Oocyte Aspiration Pumps – Service Manual 10. CLEANING THE PUMP CASING At the end of each clinical session, turn off the device at the front panel  and disconnect the device from mains power supply WARNING: Using an aqueous solution of 70% alcohol (IMS or isopropyl BP), moisten a cloth and wipe ELECTRIC SHOCK all external surfaces of the device.

  • Page 26: Storage

    Rocket CRAFT™ Oocyte Aspiration Pumps – Service Manual 13. STORAGE: The device must be stored and operated in temperatures +5°C to +35°C The device must be stored in a clean, dry condition, ideally in its original packaging which should be retained to return the unit for servicing Protect the device from ingress of liquid.

  • Page 27: Warranty

    The foregoing warranties shall not apply if the Products have been repaired other than by Rocket Medical plc. or other than in accordance with written instructions provided by Rocket Medical plc., or altered by anyone other than Rocket Medical plc., or if the Products have been subject to misuse, negligence, or accident.

  • Page 28: Technical Specifications

    Rocket CRAFT™ Oocyte Aspiration Pumps – Service Manual 16. TECHNICAL SPECIFICATIONS 16.1.CLASSIFICATION IEC 60601-1 Degree of protection against electric shock: Type B 16.2. SPECIFICATIONS Power Input to Pump: 220-240 VAC @ 50Hz. 0.12A Maximum current: 2.5A Consumption: 0.6KW/h Environmental conditions: ...

  • Page 29: Drawings

    Rocket CRAFT™ Oocyte Aspiration Pumps – Service Manual 17. DRAWINGS 17.1. GENERAL ASSEMBLY: Copyright© 2012-19 Rocket Medical plc. . All rights reserved. ZDOCK226 Rev:9 25/02/19...

  • Page 30: General Electrical

    Rocket CRAFT™ Oocyte Aspiration Pumps – Service Manual 17.2. GENERAL ELECTRICAL: Copyright© 2012-19 Rocket Medical plc. . All rights reserved. ZDOCK226 Rev:9 25/02/19...

  • Page 31: General Installation

    Rocket CRAFT™ Oocyte Aspiration Pumps – Service Manual 17.3. GENERAL INSTALLATION: Copyright© 2012-19 Rocket Medical plc. . All rights reserved. ZDOCK226 Rev:8 25/02/19...
