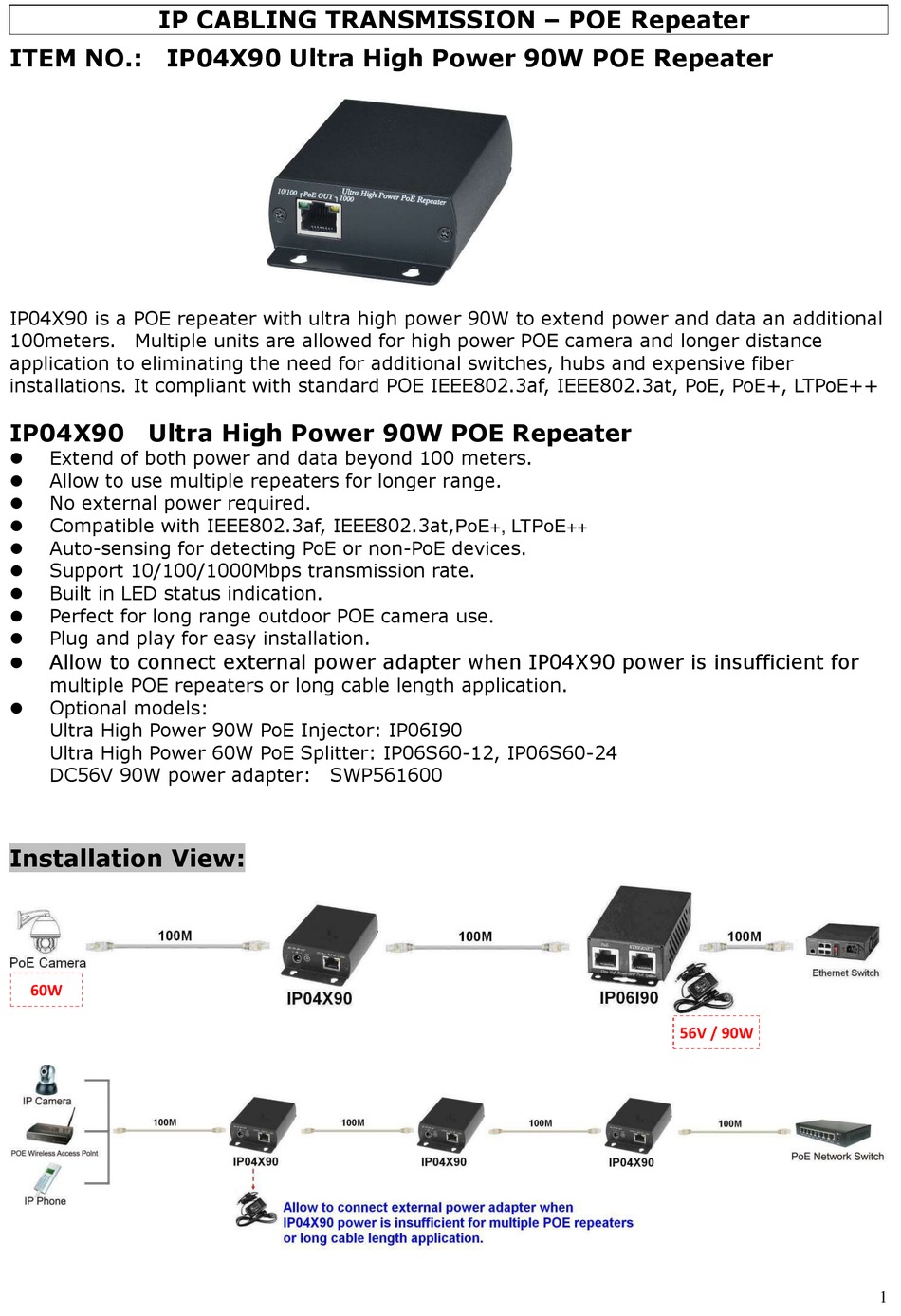

IP CABLING TRANSMISSION – POE Repeater
ITEM NO.: IP04X90 Ultra High Power 90W POE Repeater
IP04X90 is a POE repeater with ultra high power 90W to extend power and data an additional
100meters. Multiple units are allowed for high power POE camera and longer distance
application to eliminating the need for additional switches, hubs and expensive fiber
installations. It compliant with standard POE IEEE802.3af, IEEE802.3at, PoE, PoE+, LTPoE++
IP04X90 Ultra High Power 90W POE Repeater
Extend of both power and data beyond 100 meters.

Allow to use multiple repeaters for longer range.

No external power required.

Compatible with IEEE802.3af, IEEE802.3at,PoE+, LTPoE++

Auto-sensing for detecting PoE or non-PoE devices.

Support 10/100/1000Mbps transmission rate.

Built in LED status indication.

Perfect for long range outdoor POE camera use.

Plug and play for easy installation.

Allow to connect external power adapter when IP04X90 power is insufficient for

multiple POE repeaters or long cable length application.
Optional models:

Ultra High Power 90W PoE Injector: IP06I90
Ultra High Power 60W PoE Splitter: IP06S60-12, IP06S60-24
DC56V 90W power adapter: SWP561600
Installation View:
60W
56V / 90W
