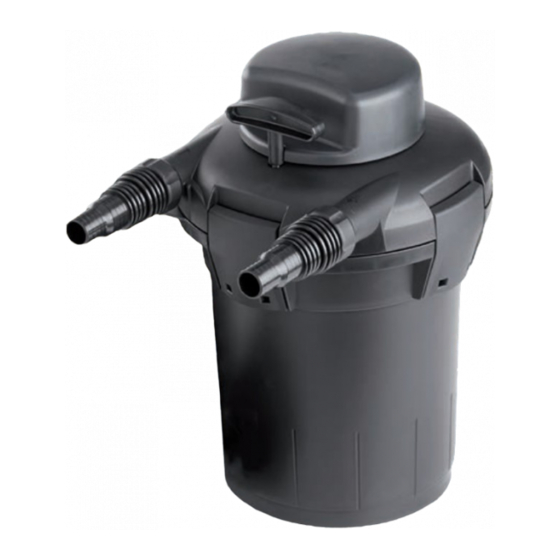

SimplyClear
Pressurized
Filter
Product Manual
For Model:
• SimplyClear™ 1250
™
(Item #130040)
TM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ThePondguy SimplyClear Filter 1250
Summary of Contents for ThePondguy SimplyClear Filter 1250
-
Page 1: Table Of Contents
SimplyClear ™ Pressurized Filter Product Manual For Model: • SimplyClear™ 1250 (Item #130040) Table of Contents: Important Information......2 Package Contents. -
Page 2: Important Information
UVC and will NOT be covered under warranty. IMPORTANT: The Pond Guy® is not responsible for equipment damage or failure, losses, injury or death resulting from failure to follow safety precautions, misuse or abuse of equipment. thepondguy.com | 866-POND-HELP (766-3435) -
Page 3: Package Contents
Package Contents SIMPLYCLEAR FILTER: ™ SimplyClear Series ™ SimplyClear™ Filter Fitting Kit TECHNICAL SPECS: PLUMBING SIZE POWER MAX FLOW MAX POND SIZE MODEL POWER (STEP DOWN BARB CORD DIMENSIONS RATE (GALLONS) FITTING) LENGTH SimplyClear™ 120V / 60 Hz 7 Watts 1,250 GPH 1,250 3/4”... -
Page 4: How It Works
UV bulb, which is protected by a quartz sleeve, maximizing exposure time to the ultraviolet light. The ultraviolet light then goes to work to clear and polish the pond water. Water exits the UV chamber and proceeds back into your pond or waterfall. thepondguy.com | 866-POND-HELP (766-3435) - Page 5 Operating with a pump conditions. Disconnect, drain and store the larger than recommended can reduce the SimplyClear™ Filter in a protected area. Watch a video of the SimplyClear™ Filter installation online @ www.thepondguy.com/simplyclear Tools Required: • Shovel • Phillips Screwdriver • Hacksaw...
-
Page 6: Installing Your Simplyclear Filter
SimplyClear™ UV Filter into a GFCI protected outlet. Protect Your Investment The Pond Guy® SimplyClear™ Rock Cover To camouflage and protect the SimplyClear™ Filter from the outside elements, use a SimplyClear™ Rock Cover. Available in greystone (#130048) and sandstone (#130049). thepondguy.com | 866-POND-HELP (766-3435) -
Page 7: Maintaining Your Simplyclear Filter
™ WARNING: Before performing any maintenance, always unplug the SimplyClear™ Filter from the power source. Watch a video of the SimplyClear™ Filter maintenance online @ www.thepondguy.com/simplyclear Tools Required: • #2 Phillips Screwdriver • Replacement UV Bulb • Soft, damp cloth •... - Page 8 Restore power to both your pump and filter. REPLACING THE FILTER MEDIA: We recommend that filter pads be replaced yearly or when pads show signs of wear and tear. Step 1 Remove Cap Remove filter cap and unscrew T-Handle. thepondguy.com | 866-POND-HELP (766-3435)
- Page 9 MAINTAINING YOUR SIMPLYCLEAR FILTER: ™ REPLACING THE FILTER MEDIA: (CON’T) Step 2 Unhook Clamps Unhook the 4 clamps securing the filter top and remove. Step 3 Remove Media Base Separate the top from the filter canister. Next, separate the filter media base and discard worn filter media pads. Note: There are two black o-rings that need to stay on the rod.
- Page 10 UV straight up to remove it from the filter housing. Step 3 Remove Security Screw Remove the screw securing the compression nut. Step 4 Unscrew Compression Nut Unscrew the compression nut and gently pull out the quartz sleeve. thepondguy.com | 866-POND-HELP (766-3435)
- Page 11 MAINTAINING YOUR SIMPLYCLEAR FILTER: ™ REPLACING UV BULB & CLEANING OR REPLACING THE QUARTZ SLEEVE: (CON’T) Step 5 Remove Bulb Pull gently, straight out, on the base of the UV bulb to remove it. Step 6 Insert New Bulb Insert the new bulb taking care not to touch the bulb as the oils from your hands can cause damage.
- Page 12 Insert the UV back into the filter top, twist to lock into place, and replace the filter cap. WINTER STORAGE The SimplyClear™ Filter should not be operated during freezing temperatures and should be disconnected, drained, cleaned and stored for the winter. thepondguy.com | 866-POND-HELP (766-3435)
-
Page 13: Troubleshooting
MAINTAINING YOUR SIMPLYCLEAR FILTER: ™ TROUBLESHOOTING: If water is not clear, check the following: • Check that the UVC Filter is operating. If the UVC lamp has overheated due to lack of water flow it will automatically turn off. Allow lamp to cool then reconnect. •... -
Page 14: Replacement Parts
REPLACEMENT PARTS: DIAGRAM DESCRIPTION PART # Transformer Cover 130041 7 Watt UV Bulb 110408 Quartz Sleeve 130063 Quartz Sleeve Hardware Kit 130043 Fitting Set 130046 Filter Pad Set 130045 Canister O-Ring 130044 Canister Clamp (single clamp) 130042 thepondguy.com | 866-POND-HELP (766-3435) - Page 15 NOTES : 15425 Chets Way | Armada, MI 48005...
-
