Summary of Contents for Atlantic 63607076

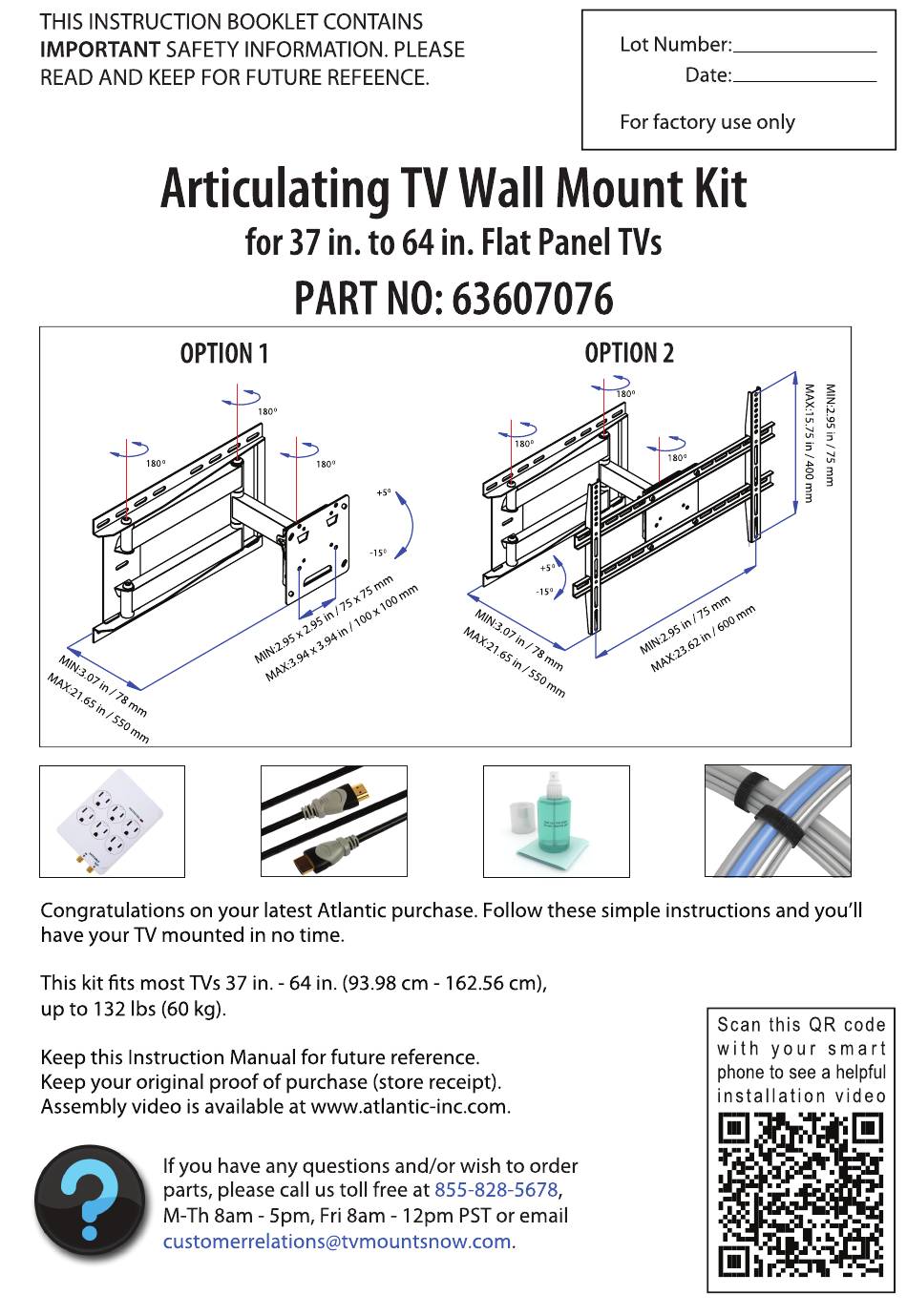

- Page 2 Before proceeding please make sure your kit has the following items. 1 x One Arm TV Mount (two assembly options) 8.66 in. (220 mm) Velcro Cable Ties 3D+Ethernet 1 x 6 ft. HDMI 1 x 9 ft. HDMI 3D+Ethernet 1 x Cleaning Spray Bottle (6.8 oz.) with 1 x 8 in.
-
Page 3: Parts List
TV Wall Mount Parts List Part # Item Part # Item Parts A and B are pre-assembled at the factory. Hardware List Part # Item Part # Item M8X16 mm M4/M5 washer M6X12 mm M6/M8 washer M5X12 M8/M6 spacer M4X12 M4/M5 spacer M8X40 M6X35... - Page 4 TV Wall Mount Tools Needed (not included) Safety Glasses 1/4”or 7 mm Wood Drill Bit ¼ in or 7 mm Drill Stud Finder Phillips Screwdriver...
-
Page 5: Assembly Tips
TV Wall Mount Assembly Tips: 1. This TV mount is designed for use on a vertical wall that is constructed with wood studs. 2. Become familiar with the instructions and all parts. 3. Make sure that all parts are in the box and in good condition. 4. - Page 6 TV Wall Mount Step 1 Disassembling parts Remove TV mounting plate (B) from wall bracket (A). Step 2 Installing wall bracket stud finder DO NOT use wall anchors This mount is designed to be attached into wood studs. . Seek the assis- tance of a professional installer to mount your TV without using wood studs.
- Page 7 TV Wall Mount OPTION 1 2.95 x 2.95 in/3.94 x 3.94 in (75 x 75 mm/100 x 100 mm) Choose best installation option based on TV back panel hole spacing. See OPTION 2 on next page. Step 3a Attaching mounting plate Carefully lay your TV on a rug or at carton.
- Page 8 TV Wall Mount OPTION 2 (7.87 to 23.6 in) x 15.7 in (200 to 600) mm x 400 mm Choose best installation option based on TV back panel hole spacing. Step 3b Assembling TV mount Measure the hole spacing on the back of your TV. Position two TV mounts (C) onto horizontal attachment arms (D) at the same spacing you measured.
- Page 9 TV Wall Mount OPTION 2 Step 5b Installing TV on wall bracket safety screws We strongly recommend two people, one on each side, lift the TV. Carefully position TV over the wall bracket (A) until it locks in place. Tighten both safety screws. If you want to remove TV from the wall plate at a later time, you will need two people.
-
Page 10: Surge Protector
Surge Protector Operation Instructions: Caution: Plug Surge Protector into wall outlet rst, and then plug in electrical equipment and connect coax cables. Disconnect all electrical equipment before removing Surge Protector from wall outlet. Technical Speci cations: Electrical Rating: 15A, 120 VAC, 60 Hz, 1800 Watts Surge Lines Protected: 3-Line (L-N, L-G, N-G) UL Clamping Voltage:... - Page 11 Surge Protector Information/Functions: Surge Protection LED Indicator Each outlet has a Protected Indicator - Red light cover that swivels indicates your Surge Protection is to protect from working properly. electrical shock. This wall tap surge protector is designed to protect your electronic equipment from AC power surges up to a certain level.
-
Page 12: First Aid Measures
HDMI Cables Information: This Kit includes 2 HDMI™ cables The cables are 6 feet (1.83 m) and 9 feet (2.74 m) in length. Technical Speci cations: 1.4 Version Supports Ethernet and 3D O.D.: 6.0mm Double molding Cleaning Spray and Cloth Instructions: The Screen Cleaning Kit in this package includes: 1 Bottle of Anti-Run Anti-Static Screen Cleaning Gel and... -
Page 13: Product Warranty
U.S. and Canada. This warranty gives you speci c legal rights and you may also have other rights which vary from State to State. The warranty duration is one year from date of purchase. Made in China R1.0 120810 #63607076...
