San Diego, CA 92110 USA
www.ecr4kids.com
Organize and Play
Storage Cabinet
Model# ELR-17256
WARNING:
Adult Assembly Required.
Two adults recommended.
- Contains small parts, sharp points and edges.
- Do not stand, sit, kneel, climb, lean or pull on
unit for support.
- Never leave children unattended.
- Do not place unit near high heat or moisture.
- Adult supervision recommended.
Children climbing on furniture
can lead to death or serious
injury due to tipping secure unit
to wall using appropriate
hardware
A
B
C
TOOLS INCLUDED
Hex Tool (1)
D
TOOLS NEEDED
Phillips Screwdriver
E
Drill Driver
+ Drill Bits

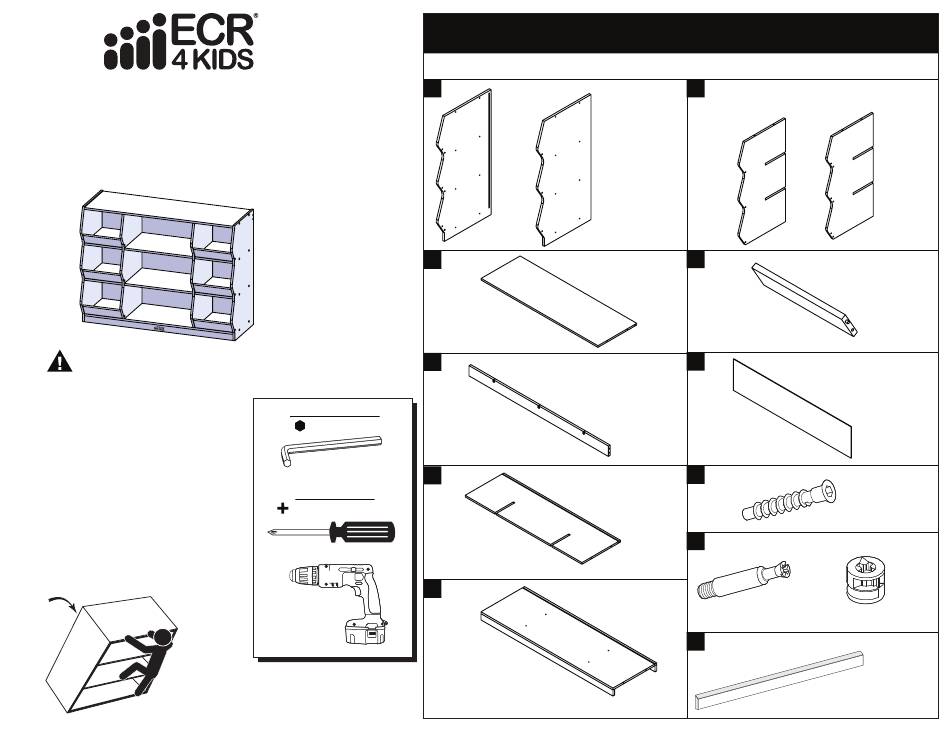

Parts List
BEFORE ASSEMBLING, MAKE SURE YOU HAVE ALL THE PARTS
Left & Right
Side Panels (1/1)
A1
A2
Top Panel (1)
Anchor Bar (1)
Middle Shelf (2)
Bottom Shelf (1)
Batch ID Sticker
located on underside
F
Side Dividers (1/1)
F1
G
Back Panel (3)
H
Hex Screws (34)
I
Cam Posts & Cam Locks (4/4)
J
J1
J2
Wall Mount (1)
K
Must be drilled to mount to wall
per individual installation application
Left &Right
F2
Shelf Bar(6)
Use the
Hex Tool
Use a Phillips
Screwdriver
Advertisement
Related Manuals for ECR 4 Kids ELR-17256
Summary of Contents for ECR 4 Kids ELR-17256
- Page 1 San Diego, CA 92110 USA Left &Right Left & Right www.ecr4kids.com Side Dividers (1/1) Side Panels (1/1) Organize and Play Storage Cabinet Model# ELR-17256 Top Panel (1) Shelf Bar(6) WARNING: Back Panel (3) Anchor Bar (1) Adult Assembly Required. Two adults recommended.
- Page 2 Connect Lower Shelf to Lower DIviders Install Shelves to the Dividers Place three Cam Locks (J2) into the recessed holes on the Anchor Bar (C). Align the slits on the Left and RIght Dividers (F) with the slits on Middle Shelves (D) as Install three Cam Posts (J1) into the threaded plastic inserts on the underside of Top Panel (B) shown and slide together until seated.
- Page 3 Install Shelf Bars Insert the Back Panels Align pre-installed dowels on six Shelf Bars (G) with holes on Left & Right Dividers (F) and Slide the Back Panels (H) into the grooves on the Top Panel (B), Middle Shelves (D) & Bottom push into place.
- Page 4 Clean wood with a damp cloth or sponge Save this sheet in an accessible place. using warm water and mild soap. Wipe dry. Model Number: ELR-17256 Do not place near heat, moisture or vaporizer which may cause wood to warp Factory Code: and peel.
