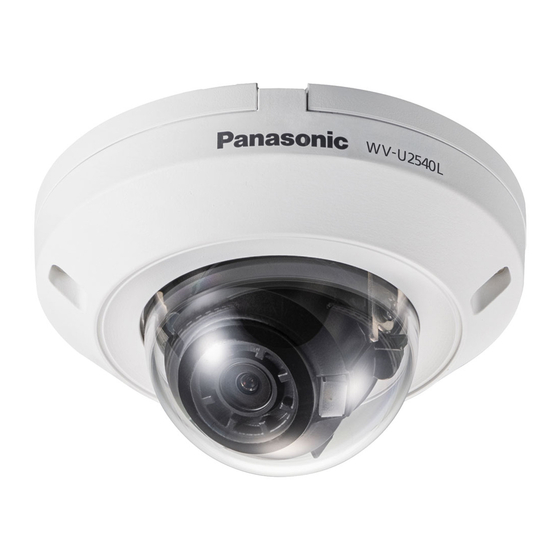

WV-U2540L, WV-U2530L
Model No.
WV-U2140L, WV-U2130L
About the user manuals
Product documentation is composed of the following documents.
• Installation Guide (accessory): Provides information about "Precautions", "Precautions for
installation" and the installation method.
• Basic Information (this document): Provides information about "Precautions for use" and "Detail
specifications".
• Operating Instructions (in the following website): Explains how to perform the settings and
how to operate this camera.
https://security.panasonic.com/training_support/documentation_database/
"<Control No.: C****>" used in these documents should be used to search for information on our sup-
port website (https://security.panasonic.com/training_support/support/info/) and will guide you to the
right information.
• microSDXC/ microSDHC/ microSD memory card is described as microSD
memory card.
• The external appearance and other parts shown in this manual may differ
from the actual product within the scope that will not interfere with normal
use due to improvement of the product.
WV-U2540L
Basic Information
Network Camera
WV-U2140L
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Panasonic WV-U2540L
Summary of Contents for Panasonic WV-U2540L
- Page 1 "<Control No.: C****>" used in these documents should be used to search for information on our sup- port website (https://security.panasonic.com/training_support/support/info/) and will guide you to the right information. • microSDXC/ microSDHC/ microSD memory card is described as microSD memory card.
-
Page 2: Table Of Contents
Contents Limitation of liability ........................3 Disclaimer of warranty ........................3 About notations ..........................4 System requirements for a PC ...................... 4 Network security ........................... 5 Precautions for use ........................6 Troubleshooting ..........................9 Detail specifications ........................10... -
Page 3: Limitation Of Liability
IMPROVEMENTS OF THIS PUBLICATION AND/OR THE CORRESPONDING PRODUCT (S). Disclaimer of warranty IN NO EVENT SHALL Panasonic i-PRO Sensing Solutions Co., Ltd. BE LIABLE TO ANY PARTY OR ANY PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT, FOR THE CASES, INCLUDING BUT NOT LIMITED TO BELOW:... -
Page 4: About Notations
The following notations are used when describing the functions limited for specified models. The functions without the notations are supported by all models. U2540 The functions with this notation are available when using the model WV-U2540L. U2530 The functions with this notation are available when using the model WV-U2530L. -
Page 5: Network Security
Network security As you will use this unit connected to a network, your attention is called to the following security risks. q Leakage or theft of information through this unit w Use of this unit for illegal operations by persons with malicious intent e Interference with or stoppage of this unit by persons with malicious intent It is your responsibility to take precautions such as those described below to protect yourself against the above network security risks. -
Page 6: Precautions For Use
Precautions for use When the product is accessible from the About the automatic status detection Internet function To prevent unauthorized access, note the When this product malfunctions due to exoge- following. nous noise, etc. for 30 seconds or more, the •... - Page 7 About the CMOS image sensor AVC Patent Portfolio License • When continuously shooting a bright light THIS PRODUCT IS LICENSED UNDER THE source such as a spotlight, the color filter AVC PATENT PORTFOLIO LICENSE FOR THE of the CMOS image sensor may become PERSONAL USE OF A CONSUMER OR deteriorated and this may cause discolor- OTHER USES IN WHICH IT DOES NOT...
- Page 8 Router When connecting this product to the Internet, use a broadband router with the port forward- ing function (NAT, IP masquerade). Refer to the Operating Instructions for further information about the port forwarding function. Time & date setting It is necessary to set the time & date before putting this product into operation.
-
Page 9: Troubleshooting
Troubleshooting Before asking for repairs, check the symptoms with the following table. Contact your dealer if a problem cannot be solved even after checking and trying the solution in the table or a problem is not described below. Reference Symptom Cause/solution pages •... -
Page 10: Detail Specifications
Detail specifications • Basic WV-U2540L/WV-U2530L WV-U2140L/WV-U2130L Power source* PoE (IEEE802.3af compliant) Power consumption* PoE DC 48 V: 110 mA/ Approx. 5.3 W (Class 2 device) U2540 U2140 PoE DC 48 V: 100 mA/ Approx. 4.8 W (Class 2 device) U2530... - Page 11 • Camera Image sensor: Approx. 1/2.7 type CMOS image sensor U2540 U2140 Approx. 1/3 type CMOS image sensor U2530 U2130 Effective pixels: Approx. 5.2 megapixels U2540 U2140 Approx. 2.4 megapixels U2530 U2130 Scanning area: U2540 U2140 5.38 mm (H)×3.02 mm (V) {7/32 inches (H) × 1/8 inches (V)} U2530 U2130 5.28 mm (H)×2.97 mm (V) {7/32 inches (H) ×...
- Page 12 Fog compensation: On/Off The level can be set in the range of 0 to 8. (only when Intelligent Auto / auto contrast adjust: Off) Light control mode setting: ELC/ Indoor scene (50 Hz)/ Indoor scene (60 Hz) Maximum shutter: [30 fps mode] Max.
- Page 13 • Lens Zoom ratio: Optical zoom Extra optical zoom U2540 U2140 max 4.0 x (1.0x – 1.3 x when resolution is 1920x1080) (1.0x – 4.0 x when resolution is 640x360) U2530 U2130 max 3.0 x (1.0x – 1.5x when resolution is 1280x720) (1.0x –...
- Page 14 • Network Network: 10BASE-T/100BASE-TX, RJ45 connector Resolution: U2540 U2140 H.265 [16:9 mode*] *[4:3 mode] is not supported. JPEG (MJPEG) 2560×1440/ 1920×1080/ 640×360/ 320×180 U2530 U2130 [16:9 mode] 1920×1080/ 1280×720/ 640×360/ 320×180 [4:3 mode] 1600×1200/ 1280×960/ VGA/ QVGA Image compression method: H.265* Transmission priority: Constant bit rate/ VBR/ Frame rate/ Best effort...
- Page 15 14* (Number of sessions that can connect to cameras at the same time) * Depends on network conditions access number: Compatible microSD memory Manufactured by Panasonic (microSD speed class 6 or higher) card* microSDXC memory card: 64 GB microSDHC memory card: 32 GB...
- Page 16 Fukuoka, Japan Panasonic Canada Inc. 5770 Ambler Drive, Mississauga, Ontario, L4W 2T3 Canada Authorised Representative in EU: 1-877-495-0580 https://www.panasonic.com/ca/ Panasonic Testing Centre Panasonic Marketing Europe GmbH Winsbergring 15, 22525 Hamburg, Germany © Panasonic i-PRO Sensing Solutions Co., Ltd. 2020 N0720-0 PGQP2968ZA...
