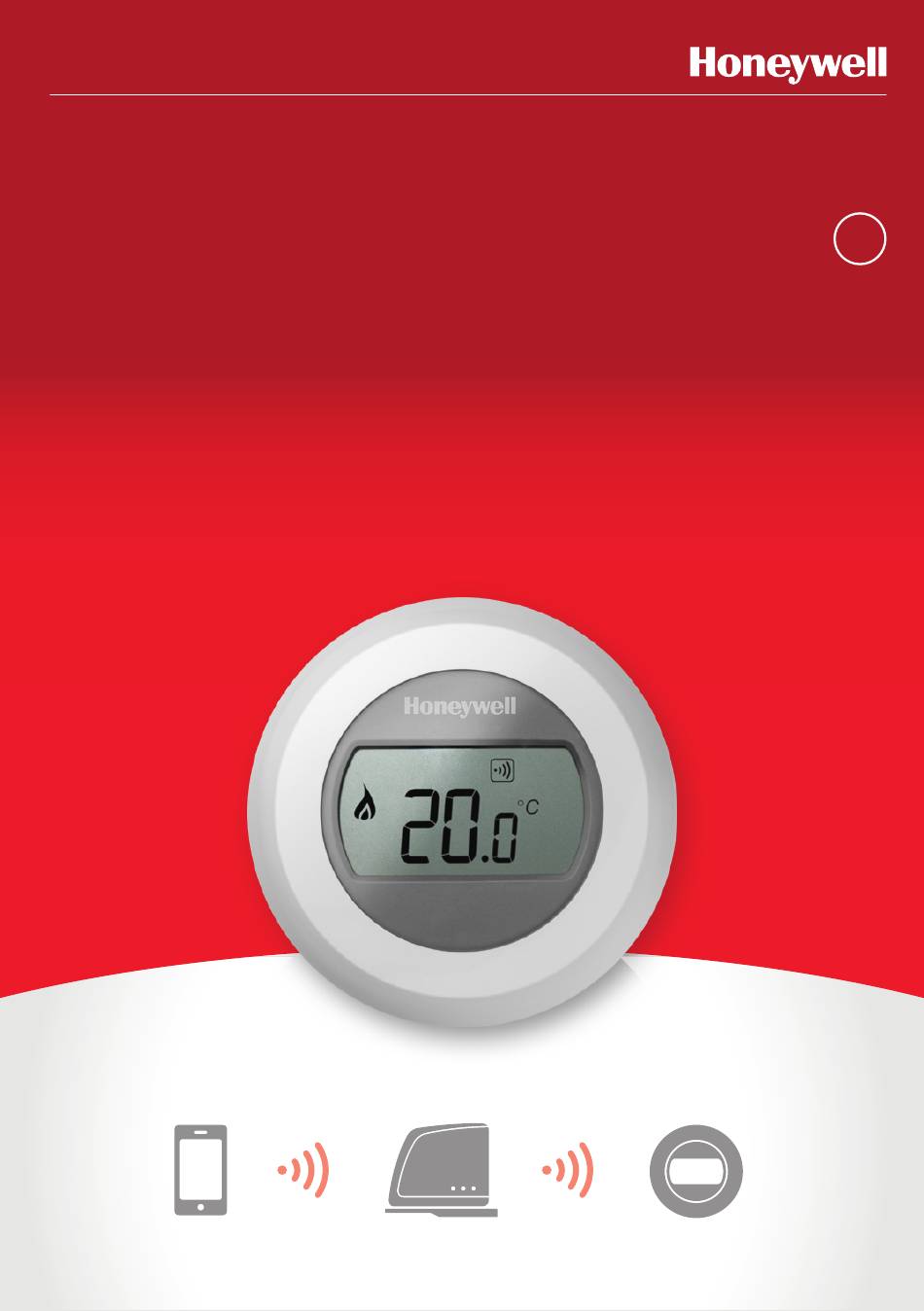

- Page 1 Single Zone Thermostat Remote Access Setup Guide...
- Page 2 Connect Remote Access Gateway to power Set-up account and download the app LED Status LED Status Visit www.mytotalconnectcomfort.com to create an account and register the Remote Access Gateway. You will need the MAC ID and CRC which can be found on the base of the Remote Access Gateway: Connect Gateway to home internet router LED on Gateway should turn solid green when...
- Page 3 Conforms to protection requirements of the following directives: EMC: 2004/108/EC LVD: 2006/95/EC R&TTE: 1999/05/EC Hereby, Honeywell, declares that this Remote Access Gateway is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Honeywell Control Systems Ltd.
- Page 4 Single Zone Thermostat Remote Access Setup Guide for connecting 2 zones...
- Page 6 2-zone system example... HOME Smartphone Remote Access ZONE 1 ZONE 2 Gateway 18.0° 21.0° Boiler Zone 1 Zone 2 BDR91 BDR91 Zone-1 Zone-2 Thermostat Thermostat Zone Zone Valve Valve Boiler/Pump switched from Zone Valve end-switches • Two Thermostats per Gateway - Only two Thermostats can be connected to a single Remote Access Gateway at one time.
- Page 7 Bind Zone-1 Thermostat to Zone-1 Zone Valve Controller (BDR91) Press Press 15sec 5sec Install and power BDR91 Press and hold the button Put BDR91 into BIND mode Zone Valve Controller (see for 15 seconds (until the red by pressing the button BDR91 instructions).
- Page 8 Connect Gateway to home internet router Bind Gateway to Zone-1 Thermostat Press Press 1sec 10sec Put Gateway into BIND Put Zone-1 Thermostat into mode by pressing BIND BIND mode by pressing button on base. below and right of display. Press once Send BIND signal by pressing LED on Gateway should turn...
- Page 9 Set-up account and download the app LED Status Visit www.mytotalconnectcomfort.com to create an account and register the Remote Access Gateway. You will need the MAC ID and CRC which can be found on the base of the Remote Access Gateway: LED on Gateway should turn solid green when successfully registered...
-
Page 10: Troubleshooting
Troubleshooting Gateway Status Solution Lost communication with one Check both Thermostats are powered and within RF or both zone Thermostats range of the Gateway (see guidelines in instructions) The Gateway will not allow a third Thermostat to be Two Thermostats already bound. - Page 11 Conforms to protection requirements of the following directives: EMC: 2004/108/EC LVD: 2006/95/EC R&TTE: 1999/5/EC Hereby, Honeywell, declares that this Remote Access Gateway is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Honeywell Control Systems Ltd.
