QBVS110L
OWNER'S MANUAL
MANUEL DE L'UTILISATEUR
MANUAL DEL USARIO
PLEASE READ AND SAVE THESE INSTRUCTIONS • INSTALLER: PLEASE LEAVE THIS GUIDE WITH THE HOME OWNER.
LISEZ ET CONSERVEZ CES INSTRUCTIONS • INSTALLATEUR: LAISSEZ CE GUIDE AU PROPRIÉTAIRE.
LEA Y GUARDE ESTAS INSTRUCCIONES • INSTALADOR: ENTREGUE ESTA GUÍA AL PROPIETARIO DE LA VIVIENDA.

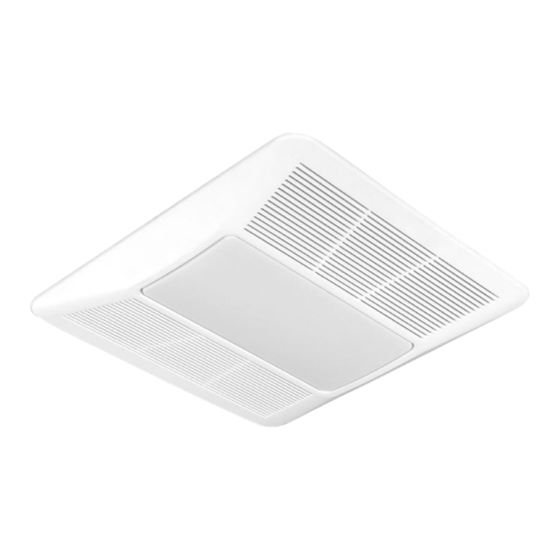

ULTRA QUIET HIGH AIRFLOW BATHROOM EXHAUST FAN WITH LIGHT
VENTILATEUR D'ÉVACUATION ULTRA SILENCIEUX ET HAUT DÉBIT AVEC
ÉCLAIRAGE DE SALLE DE BAIN
VENTILADOR DE EXTRACCIÓN ULTRASILENCIOSO Y ALTO FLUJO DE AIRE
CON LUZ PARA BAÑO
REV.20200113
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Aria QBVS110L
Summary of Contents for Aria QBVS110L
- Page 1 ULTRA QUIET HIGH AIRFLOW BATHROOM EXHAUST FAN WITH LIGHT VENTILATEUR D’ÉVACUATION ULTRA SILENCIEUX ET HAUT DÉBIT AVEC QBVS110L ÉCLAIRAGE DE SALLE DE BAIN VENTILADOR DE EXTRACCIÓN ULTRASILENCIOSO Y ALTO FLUJO DE AIRE CON LUZ PARA BAÑO OWNER’S MANUAL MANUEL DE L’UTILISATEUR MANUAL DEL USARIO REV.20200113...
-
Page 2: Table Of Contents
12 . Use an ON/OFF switch to operate this ventilation fan . Use of speed controls may damage the motor . 13 . If using a fluorescent light bulb, do not use dimmer switch to control light. Floor 14 . DO NOT INSTALL IN A WALL . QBVS110L... -
Page 3: Warranty
Warranty ONE YEAR LIMITED WARRANTY A thorough inspection must be made before installation and any damage must be promptly reported . We will not be liable for failures or damage that could have been discovered or avoided by proper inspection and testing prior to installation . Conglom Inc . -
Page 4: Pre-Installation
*For best performance use 4" round metal ducting . Other ducting is acceptable but may impact performance . Use of existing metal ducting will require a short flexible duct connector. If your ducting is other than 4” in diameter, a duct adapter is required to make an air tight connection . QBVS110L... -
Page 5: Package Contents
Pre-Installation (continued) PACKAGE CONTENTS Carefully check this product for damage and/or missing parts prior to installation . If there is any damage or if you are missing parts, do not proceed with the installation . Report damage and/or missing parts immediately to our customer service team at cs@conglomkb.com or 1-877-333-0098 (Service available in English and French, Monday - Friday from 8:30 am - 5:00 pm EST). -
Page 6: Typical Installation
Pre-Installation (continued) TYPICAL INSTALLATION Roof Cap* Insulation* Ventilation Fan Power Cable* Round or Flexible Duct Connector* Aluminum Wall Cap* Elbows* Foil Tape* * Not Included Fig .1 QBVS110L... -
Page 7: Installation
Installation REPLACING AN EXISTING FAN WARNING: Before removing the existing ventilation fan, switch WARNING: Always wear safety goggles and gloves during power off at service panel and lock the service disconnecting installation to prevent personal injury . means to prevent power from being switched on accidentally . When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel . - Page 8 . DO NOT use an extension cord or adapter plug with this appliance . The ventilation fan must be connected with copper wire only . Fig . 8 QBVS110L...
- Page 9 Installation (continued) 10 . The ventilation fan should be connected directly to the switch through flexible, armoured or nonmetallic sheathed copper cable. Allow some slack in the cable so the appliance can be moved if servicing is ever necessary . 11 .
- Page 10 - Secure the fan housing to the ceiling joist with screws . Motor mounting Ensure the housing is fastened securely . Reinstall the motor assembly mounting assembly with tabs and screw . Plug motor into the Fig . 15 receptacle. See figure 15. QBVS110L...
- Page 11 Installation (continued) SECURING THE FAN TO THE CEILING JOIST - NOTE: Duct and electrical connections not shown for clarity. UNFINISHED CEILINGS DANGER: Turn off the power circuit breaker or the power switch on the junction box before installing this unit . Touching circuitry inside the ventilation fan while it is energized will result in death or serious injury .
- Page 12 Fig . 21 - Squeeze the springs on the grille together, and insert the springs into the slots of the housing assembly . Firmly push the grille up against the ceiling. See figure 23. Fig . 22 Ceiling Fig . 23 QBVS110L...
-
Page 13: Operation
Operation TURNING ON/OFF THE UNIT WARNING: To Reduce The Risk Of Fire Or Electric - This ventilation fan with light can be operated with an external Shock, Do Not Use This Fan With Any Solid-State Speed Control Device . switch . - To operate the ventilation fan and light at the same time, use a single pole (on/off) switch . -
Page 14: Troubleshooting
- Check that the power is turned on at the junction box or circuit breaker . - Check that the light bulb is not broken . Do this by installing a light bulb that you know is working . QBVS110L... -
Page 15: Specifications
Specifications Model QBVS110L Air Delivery (CFM - Cubic Feet Per Minute) 110 ± 10% Lound Level (Sones) 0 .9 Duct Size 4" (10 .16 cm) Motor Power (W) Voltage / Frenquency 120 VAC / 60Hz Light 10W MAX Housing Dimensions 11 3/8"... -
Page 16: Service Parts
1-877-333-0098 (8:30 am – 5 pm, EST, Monday–Friday) . Identify the required part(s) and have the part number(s) ready . Part Description Code Quantity Motor QHB183 Fan Blade QHB191 Damper QHB193 Grille QHB180 Motor Bracket QHB186 Hanger Channel Set QHB195 Light Cover QHB198 Hardware Pack QHB197 QBVS110L... -
Page 17: Manuel De L'utilisateur
Imported by / Importé par / Importado por : St-Laurent, Québec, H4S 2C3 1-877-333-0098 | cs@conglomkb.com (service available in English and French, Monday - Friday from 8:30 am - 5 pm EST) (service disponible en anglais et français, du lundi au vendredi, 8h30 à 17h, H.N.E.) (servicio disponible en inglés y francés, de lunes a viernes, de 8:30 am a 5:00 pm, hora del Este ) www.conglomkb.com...
