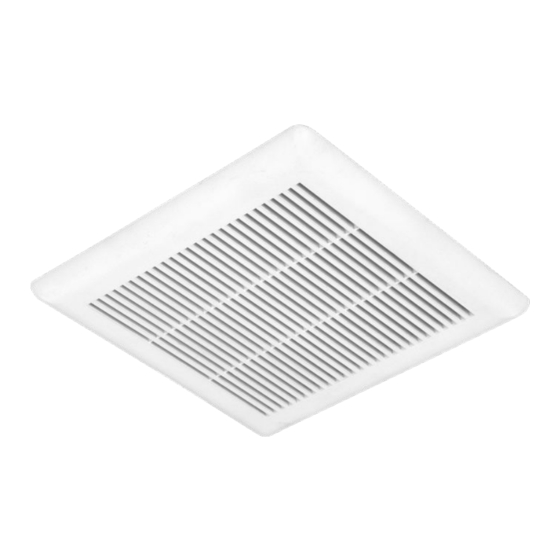

ULTRA QUIET BATHROOM EXHAUST FAN
VENTILATEUR ULTRA SILENCIEUX POUR SALLE DE BAIN
VENTILADOR ULTRA SILENCIOSO PARA CUARTO DE BAÑO
REV.20191219
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Aria QBV100
Summary of Contents for Aria QBV100
- Page 1 ULTRA QUIET BATHROOM EXHAUST FAN QBV100 VENTILATEUR ULTRA SILENCIEUX POUR SALLE DE BAIN VENTILADOR ULTRA SILENCIOSO PARA CUARTO DE BAÑO OWNER’S MANUAL MANUEL DE L’UTILISATEUR REV.20191219 MANUAL DEL USARIO PLEASE READ AND SAVE THESE INSTRUCTIONS • INSTALLER: PLEASE LEAVE THIS GUIDE WITH THE HOME OWNER.
-
Page 2: Table Of Contents
11 . Do not install ventilation fan in a ceiling thermally insulated to a value greater than R40 . 12 . Use an ON/OFF switch to operate this ventilation fan . Use of speed controls may damage the motor . Floor 13 . DO NOT INSTALL IN A WALL . QBV100... -
Page 3: Warranty
Warranty ONE YEAR LIMITED WARRANTY A thorough inspection must be made before installation and any damage must be promptly reported . We will not be liable for failures or damage that could have been discovered or avoided by proper inspection and testing prior to installation . Conglom Inc . -
Page 4: Pre-Installation
*For best performance use 4" round metal ducting . Other ducting is acceptable but may impact performance . Use of existing metal ducting will require a short flexible duct connector. If your ducting is other than 4” in diameter, a duct adapter is required to make an air tight connection . QBV100... -
Page 5: Package Contents
Pre-Installation (continued) PACKAGE CONTENTS Carefully check this product for damage and/or missing parts prior to installation . If there is any damage or if you are missing parts, do not proceed with the installation . Report damage and/or missing parts immediately to our customer service team at cs@conglomkb.com or 1-877-333-0098 (Service available in English and French, Monday - Friday from 8:30 am - 5:00 pm EST). -
Page 6: Typical Installation
Pre-Installation (continued) TYPICAL INSTALLATION Roof Cap* Insulation* Ventilation Fan Power Cable* Round or Flexible Duct Connector* Aluminum Wall Cap* Elbows* Foil Tape* * Not Included Fig .1 QBV100... -
Page 7: Installation
Installation REPLACING AN EXISTING FAN WARNING: Before removing the existing ventilation fan, switch WARNING: Always wear safety goggles and gloves during power off at service panel and lock the service disconnecting installation to prevent personal injury . means to prevent power from being switched on accidentally . When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel . - Page 8 10 . The ventilation fan should be connected directly to the switch through flexible, armoured or nonmetallic sheathed copper cable . Allow some slack in the cable so the appliance can be moved if servicing is ever necessary . Fig . 8 QBV100...
- Page 9 Installation (continued) 11 . A UL listed or CSA approved conduit connector must be provided at each end of the power supply cable . 12 . Wire size must conform to all local codes and ordinances . The latest edition requirements of the National Electrical Code ANSI/ NFPA 70, or the latest edition CSA Standards C22.1-94, Canadian Electrical Code Part 1 and C22.2 No.
- Page 10 15. Motor mounting assembly - Ensure the housing is fastened securely, then reinstall the Fig . 16 motor mounting assembly . Plug the motor into the receptacle . See figure 16. QBV100...
- Page 11 Installation (continued) SECURING THE FAN TO THE CEILING JOIST - NOTE: Duct and electrical connections not shown for clarity. UNFINISHED CEILINGS DANGER: Turn off the power circuit breaker or the power switch on the junction box before installing this unit . Touching circuitry inside the ventilation fan while it is energized will result in death or serious injury .
-
Page 12: Operation
. During construction or remove dust and debris . renovation, cover the fan . - Combustible products used for cleaning such as acetone, alcohol, ether, or benzol are highly explosive and should never be used close to the fan . QBV100... -
Page 13: Troubleshooting
Troubleshooting DANGER: Turn off the power circuit breaker or the power switch on the junction box before performing maintenance . Touching circuitry inside the ventilation fan while it is energized may result in serious injury or death . WARNING: Failure to maintain basic standards of care and cleaning of the ventilation fan increases the risk of fire, electric shock, or injury to persons. -
Page 14: Specifications
Specifications Model QBV100 Air Delivery (CFM - Cubic Feet Per Minute) 100 ± 10% Lound Level (Sones) 0 .8 Duct Size 4" (10 .2 cm) Motor Power (W) Voltage / Frenquency 120 VAC / 60Hz Housing Dimensions 9" x 9" x 5 3/4" (22 .9 cm x 22 .9 cm x 14 .6 cm) Grille Dimensions 11 13/16"×11 7/16"... -
Page 15: Service Parts
Service Parts If you are missing parts or if you require replacement parts, please contact our customer service team at cs@conglomkb.com or 1-877-333-0098 (8:30 am – 5 pm, EST, Monday–Friday) . Identify the required part(s) and have the part number(s) ready . Part Description Code Quantity... -
Page 16: Manuel De L'utilisateur
Imported by / Importé par / Importado por : St-Laurent, Québec, H4S 2C3 1-877-333-0098 | cs@conglomkb.com (service available in English and French, Monday - Friday from 8:30 am - 5 pm EST) (service disponible en anglais et français, du lundi au vendredi, 8h30 à 17h, H.N.E.) (servicio disponible en inglés y francés, de lunes a viernes, de 8:30 am a 5:00 pm, hora del Este ) www.conglomkb.com...
