Kaba Terminal 9420 MID
User manual
Doc. no.: k1evo706en-2011-07
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9420 MID and is the answer not in the manual?

Questions and answers

Related Manuals for Kaba 9420 MID

Summary of Contents for Kaba 9420 MID

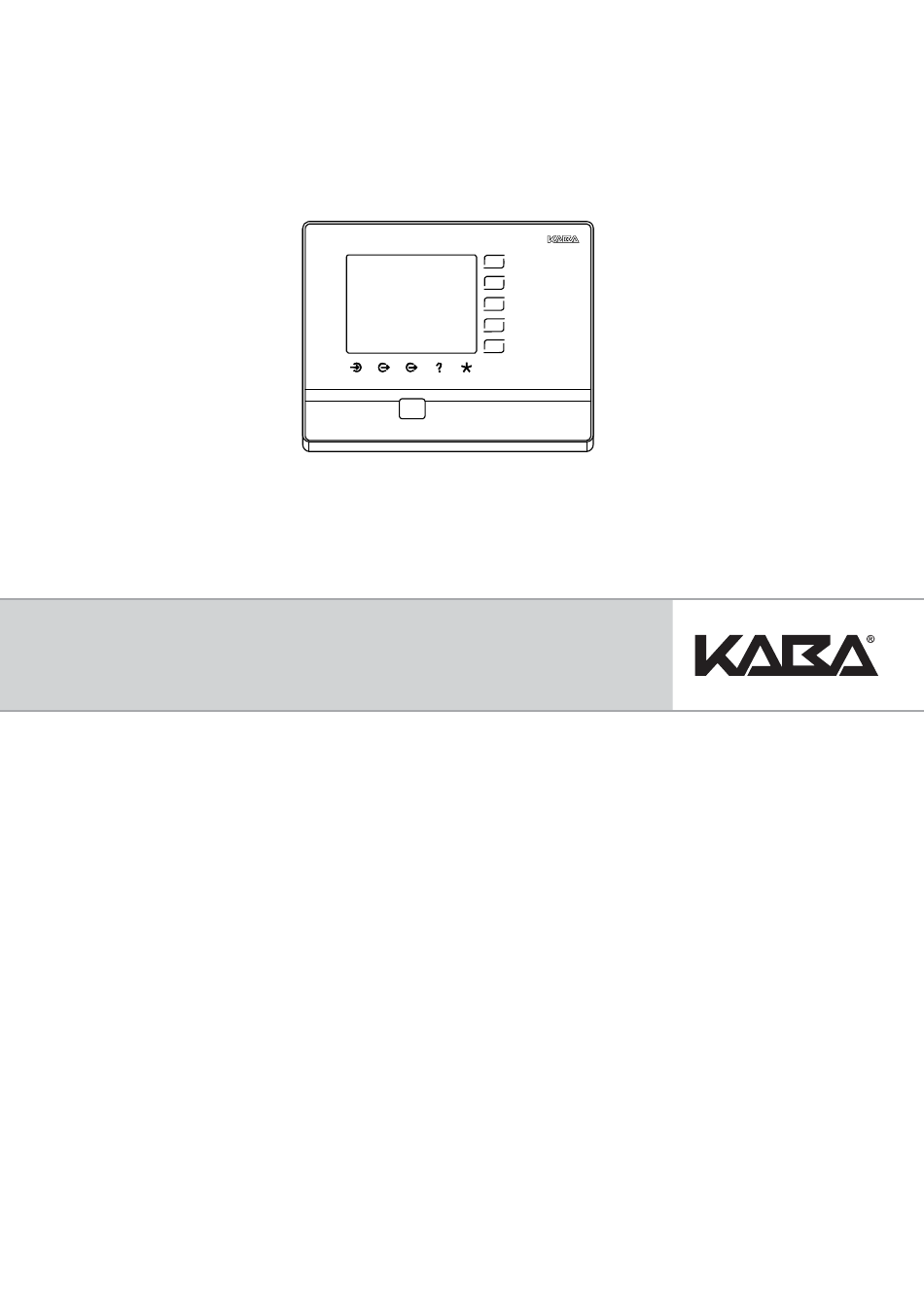

  • Page 1 Kaba Terminal 9420 MID User manual Doc. no.: k1evo706en-2011-07...
  • Page 2 DE- 63303 Dreieich Tiverton Devon www.kaba.at www.kaba.de EX16 6SS www.kaba.co.uk This documentation may not be reproduced in any manner, or otherwise reused, without the written consent of Kaba AG. Kaba® is a registered trademark of Kaba AG. Copyright by Kaba AG 2011...

  • Page 3: Table Of Contents

    Fitting the Kaba terminal ........
  • Page 4 5.1 Installing Kaba evolo Manager ........

  • Page 5: Please Read First

    Please read first Validity This manual describes how to install and configure the Kaba Terminal 9420 MID using B-COMM-Java so that it can be used with Kaba evolo Manager software. In data acquisition circles, using other licences and configurations, the Kaba Terminal 9420 MID is also known as the B-Web Terminal 93 00.

  • Page 6: Hazards To Property

    Usage indications with supplementary information. These ensure that optimal use is made of the product and its functions. Definition of terms To make the manual easier to read, the Kaba Terminal 9420 MID is also referred to as "terminal". k1evo706en-2011-07...

  • Page 7: Safety And The Environment

    Safety and the environment Proper use The Kaba Terminal 9420 has been designed exclusively for use in enclosed spaces. More detailed information about its usage and operating conditions can be found in the Product description chapter. Any other use shall be deemed to be improper use.

  • Page 8: Esd Protective Measures For Installation

    Disposing of the terminal Do not dispose of the device with household waste Kaba devices are registered as "B2B" in the Used Electrical Devices register. Kaba guarantees the returning and disposal of products. Do not dispose of used batteries with household waste Dispose of used batteries in accordance with national and local requirements.

  • Page 9: Product Description

    System environment Access authorisations are managed by the Kaba evolo Manager software. In order to use the terminal in the Kaba evolo system, the B-COMM Java software must also be installed. This program is used to configure terminal communication between the Kaba evolo Manager software and the network.

  • Page 10: Communication Via Ports

    List of the ports used by the terminal in the network environment. TCP port UDP port Applications 1433 Kaba evolo Manager, SQL Database, Kaba Terminal to KEM Feeder 3001 Kaba evolo Manager, B-COMM Java Helper 1099 B-COMM Java Helper, B-COMM Java Server...

  • Page 11: Scope Of Supply

    • User manual • Installation material: - 3 semicircular wood screws 4.5 x 35 mm - 3 seal washers - 3 S6 dowels Additional accessories • Network cable • Kaba evolo Manager software Dimensions B-Web Terminal dimensions Kaba Terminal 9420 MID k1evo706en-2011-07...

  • Page 12: Technical Specifications

    • Spare pair supply: via fast Ethernet, free 4/5 and 7/8 core pairs • Phantom supply: via RX cores (1/2) and TX cores (3/6) The power supply is superimposed on the data signal. Interfaces Network Ethernet interface 10Base-T/100Base-TX k1evo706en-2011-07 Kaba Terminal 9420 MID...
  • Page 13 • 89/336/EEC EMC Directive To our knowledge, this device does not use or contain any substances in concentrated form whose placing on the market in products is prohibited according to the requirements of Directive 2002/95/EC ("RoHS"). Kaba Terminal 9420 MID k1evo706en-2011-07...

  • Page 14: Installation Preparations

    Server environment or only with COMM Java (Ch. 5.4.2) DHCP? Are there any naming conventions If there are, the Kaba standard name for the connection of network must be adjusted manually in the devices to the corporate network? terminal before starting the installation and configuration process (Ch.

  • Page 15: Network Connection

    For details of the connection terminals see section 4.4, page 18. If the power supply is a PoE (Power over Ethernet) system, the relevant standards must be adhered to. For more information, see section 3.8, page 12. Kaba Terminal 9420 MID k1evo706en-2011-07...

  • Page 16: Fitting The Kaba Terminal

    The IEC 60529 protection type specified in the technical specifications can only be achieved if the cable entry from below is fitted with the cable grommets or cable glands supplied. Cable entry from below Cable entry from the rear k1evo706en-2011-07 Kaba Terminal 9420 MID...

  • Page 17: Positioning The Device

    If mounted on a yielding substrate, ensure that the housing is not pressed into the substrate as the screws are tightened. The unevenness of the mounting surface must not exceed 0.5 mm. If necessary, suitable measures must be taken (e.g. washers) to even out the surface. Kaba Terminal 9420 MID k1evo706en-2011-07...

  • Page 18: Connections

    The connection to the mains voltage may only be carried out by a qualified electrician. Mains voltage supply with phase/zero/protective earth conductor. The terminal is designed for the following maximum core sizes: Diameter: 2.7 mm, cross-section 2.5 mm², AWG number: 12. k1evo706en-2011-07 Kaba Terminal 9420 MID...

  • Page 19: Mains Fuse

    Remove metal cover (1) 1. Remove screw (2), TORX T10. 2. Remove protective earth gland (3), M4 nut, wrench size 7. 3. Push the metal cover (1) up slightly to detach it and then remove it. Kaba Terminal 9420 MID k1evo706en-2011-07...

  • Page 20: Fastening The Terminal Housing To The Docking Station

    The terminal housing can be installed later in the case of devices that do not have a motherboard in the docking station (supplied via PoE). k1evo706en-2011-07 Kaba Terminal 9420 MID...
  • Page 21 3. Fasten the terminal housing to the docking station using an M4x10 TORX-TR (4) locking screw. You will need a SoftFinish® TORX® T20H screwdriver with a hole at the tip of the blade for TORX® screws with a locating pin. Kaba Terminal 9420 MID k1evo706en-2011-07...

  • Page 22: Installing And Configuring B-Comm Java

    A user with Administrator rights has to install the program. Deactivate any firewall programs. 1. Run the "Setup.exe" file in the "Kaba evolo Terminal" folder on the CD supplied. 2. B-COMM Java is installed automatically and the program also starts automatically as soon as installation is complete.
  • Page 23 1. Right-click on the Terminal Discovery entry. 2. Select Refresh from the context menu. If the terminal is still not displayed, there may be a network problem. Refer to the fault rectification section (Chapter 6.5, Page 41). Kaba Terminal 9420 MID k1evo706en-2011-07...

  • Page 24: Configuring B-Comm Java

    2. Stop the stream using the Stop button in the toolbar. Stopping the communication channel 5.4.2 Configure the stream (BCLAN01) 1. Highlight the stream. 2. Right-click and choose Configure from the context menu. Configuration context menu k1evo706en-2011-07 Kaba Terminal 9420 MID...

  • Page 25: Restarting The Stream (Bclan01)

    DNS server. 5.4.3 Restarting the stream (BCLAN01) The stream must be restarted if the configuration is changed: 1. Highlight the stream. 2. Restart the stream using the Start button in the toolbar. Restarting the communication channel Kaba Terminal 9420 MID k1evo706en-2011-07...

  • Page 26: Assigning The Terminal To The Stream (Bclan01)

    1. Enter the name of the terminal (e.g. Terminal1) in the Description field. 2. Set the value of ID length in master records to 18. 3. Select the Arios Terminal function. 4. Click on the Logon button. k1evo706en-2011-07 Kaba Terminal 9420 MID...
  • Page 27 Installing and configuring B-COMM Java Defining communication parameters for the terminal The terminal then restarts with the latest settings. The system can take about one minute to restart. Wait until you see the Welcome message in the display. Kaba Terminal 9420 MID k1evo706en-2011-07...

  • Page 28: Testing And Completing The Communication

    B-COMM program sends a text string to the terminal. Starting the "Send text to display" function Drag Send display information to the stream (BCLAN01) 1. Select BCLAN01. 2. Select Dynamic. 3. Enter text (e.g. Test). 4. OK to confirm. k1evo706en-2011-07 Kaba Terminal 9420 MID...
  • Page 29 Assuming the communication channel has been configured correctly, the text entered earlier (e.g.Test) will now appear on the display. If nothing appears, refer to the list of possible error causes (see list Chapter 6.5, Page 41). Kaba Terminal 9420 MID k1evo706en-2011-07...

  • Page 30: Project-Specific Configuration

    UID Mode. Remember to choose the right language version! Transferring terminal parameters for a "UID" site in German A parameter download screen is displayed. Choose OK to confirm the transmission. k1evo706en-2011-07 Kaba Terminal 9420 MID...
  • Page 31 Note: The status of the data transmission can be seen on the terminal under Recent order: "[terminalCID_DE.parameter Download: Running]. "[terminalCID_DE.parameter Download: Finished OK]. The terminal reboots. Wait until this is complete and the Welcome message appears. Kaba Terminal 9420 MID k1evo706en-2011-07...
  • Page 32 2. Choose ARIOS SiteKey management from the Configuration menu. Arios Sitekey management function 3. Place security card C on desktop reader Reading and transferring site data 4. Use Read to read the sitekey. 5. Save data. k1evo706en-2011-07 Kaba Terminal 9420 MID...

  • Page 33: Next Steps In Kem

    7. OK to confirm. The terminal can now be used with the Kaba evolo Manager. Next steps in KEM Information about how to configure the terminal with the Kaba evolo Manager can be found in the Kaba evolo Manager user manual. Fault rectification Information about rectifying problems and faults can be found in Chapter 6.5, Page...

  • Page 34: Repairs & Maintenance

    The buffer battery must be replaced by a new one every two years. Buffer battery on the rear of the terminal housing k1evo706en-2011-07 Kaba Terminal 9420 MID...

  • Page 35: Replacing The Terminal

    4. The replacement terminal is restarted automatically and is then ready to use. 5. The master records and time profiles can now be sent to the terminal. Kaba Terminal 9420 MID k1evo706en-2011-07...

  • Page 36: Service Module

    If a numeric key on the front panel of the device is then pressed, one of the functions described below is started. If no key is pressed within 30 seconds, the device starts its software. Service switch Procedure and possible functions 1. Switch off power supply. k1evo706en-2011-07 Kaba Terminal 9420 MID...

  • Page 37: Accessing The Terminal Using A Web Browser

    2. Enter the IP address of the terminal in the web browser (Internet Explorer) - e.g. http//:198.162.25.11. 3. Enter the user name and password. User name: root Password: Bedanet Login screen in the web browser Kaba Terminal 9420 MID k1evo706en-2011-07...

  • Page 38: Changing The Terminal Name

    6.4.4 Changing the terminal name 1. Access the terminal using the web browser. 2. Select "Ethernet Parameters". Summary of configuration options for the terminal 3. Change the terminal name 4. Save the changes (Submit) Terminal details k1evo706en-2011-07 Kaba Terminal 9420 MID...

  • Page 39: Setting A Static Ip Address

    1. Access the terminal using the web browser. 1. Select "Ethernet Parameters". 2. Deactivate "Enable DHCP". 3. Enter Terminal IP address. 4. Enter Net mask. 5. Enter Gateway IP address. 6. Enter DNS Server address. 7. Save data (Submit). Network communication details Kaba Terminal 9420 MID k1evo706en-2011-07...

  • Page 40: Resetting The Terminal

    If an existing terminal has to be reconfigured, the existing configuration must first be deleted. 1. Start the Control Panel and remove the Kaba evolo Terminal program. 2. Start the terminal in service mode. 3. Start the FTP browser and connect to the terminal.

  • Page 41: Fault Rectification

    B-COMM Java services not 1. Right-click on My BCLAN01 does not start (red). started. Computer Manage Device Manager Service/Applications 2. Restart Kaba Terminal to KEM Feeder. 3. Restart BCLAN01. Several network cards B-COMM Java services must present - wrong one be installed manually.
  • Page 42 B-COMM Java services not 1. Right-click on My started correctly. Computer Manage Device Manager Service/Applications 2. Restart Kaba Terminal to KEM Feeder. 3. Repeat "Send Display information". Parameter download failed. BCLAN01 communication 1. Restart BCLAN01. channel not started correctly.
