Summary of Contents for Hommy HM901

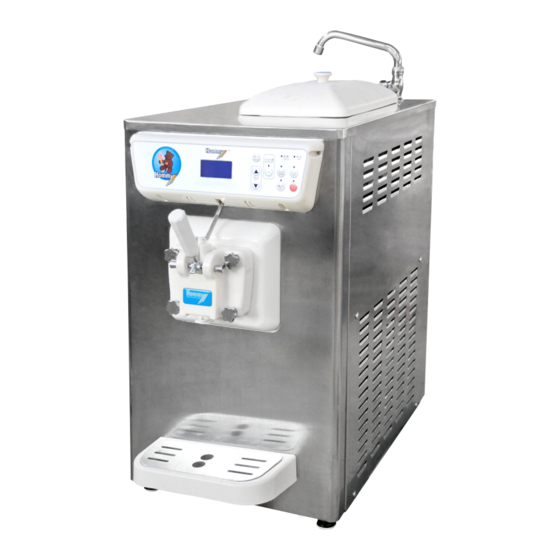

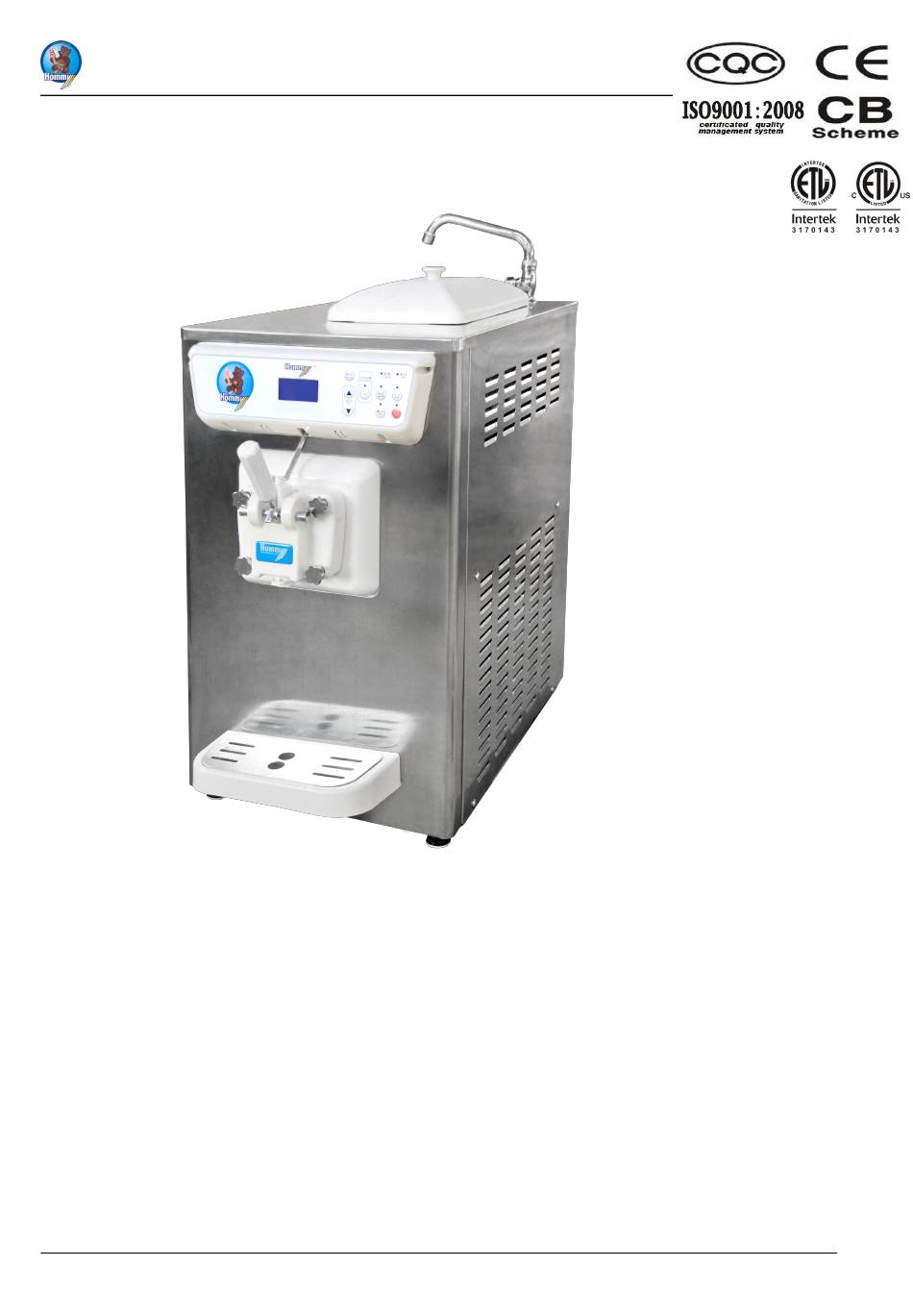

- Page 1 HOMMY ENTERPRISE (XINHUI) CO., LTD. Model: ______________ Date: ______________ S/N: ______________ (Please read the manual carefully before operating the machine.) http://www.hommy.com...
- Page 2 HOMMY ENTERPRISE (XINHUI) CO., LTD. Agent: Address: Tel.: After sales service Tel.: Date: http://www.hommy.com 2 - 32...
-
Page 3: Table Of Contents
HOMMY ENTERPRISE (XINHUI) CO., LTD. CONTENTS Chapter Content Page INSTALLATION NOTES Air-cooled machine Electrical connections SAFETY MEASURES MATTERS NEEDING ATTENTION Matters needing attention before using ice cream machine Matters needing attention for the power line MACHINE STRUCTURE HM116 Machine structure... -
Page 4: Installation Notes
HOMMY ENTERPRISE (XINHUI) CO., LTD. INSTALLATION NOTES To ensure the safety of the operator, ice cream machine the external power supply leakage protection device must be installed. The machine indoor installation, please do not use water spray or damp place installation of ice cream machine, otherwise it will result in severe shock. - Page 5 HOMMY ENTERPRISE (XINHUI) CO., LTD. Do not operate ice cream machine before reading the instructions. Do not follow this instruction will cause damage to the equipment, ice cream machine performance or injuries. ● Do not operate improperly grounded ice cream machine.
-
Page 6: Matters Needing Attention
HOMMY ENTERPRISE (XINHUI) CO., LTD. MATTERS NEEDING ATTENTION ●Matters needing attention before using ice cream machine: 1. The machine is subject to shocks in the transport process, the best first place 24 hours before use. 2. Different machine has different ability to adapt to different types of environmental temperature, and must be avoid direct sunlight and away from the heat source. -
Page 7: Machine Structure
HOMMY ENTERPRISE (XINHUI) CO., LTD. Note: 1. The power supply capacity of power line or lack of the load voltage is reduced, affect the normal use of the machine, and even damage; 2. If you are replacing the power line, must find the power line in accordance with the standard and... -
Page 8: Technic Parameters
Mixer transmission axis Keyboard Mixer coupling Electric box Tensioner Left board Mixer motor Compressor Motor Pin valve ●Machine overall dimensions: HM901 (airr-cooled model) ●Technic parameters Machine overall dimension / Machine weight Overall Dimension Packing Dimension Net Weight Model (mm) (mm) (kg) HM901 485×795×934... -
Page 9: Brush Tool + Accessory
HOMMY ENTERPRISE (XINHUI) CO., LTD. Electric parameter Fuse Rated current Model Voltage Power (Max.) (Min.) Single phase, 220V/ 50Hz, air-cooled model 2150W HM901 Single phase, 220V/ 60Hz, air-cooled model 2150W 3 phase, 380V/ 50Hz, air-cooled 2150W BRUSH TOOL + ACCESSORY Ref. -
Page 10: Hm901 Machine Top View
HOMMY ENTERPRISE (XINHUI) CO., LTD. HM901 MACHINE TOP VIEW Ref. Component Qty. Hopper Machine top board Upper cover for mixer Expansion tube Liquid level sensor STAINLESS STEEL EXPANSION TUBE After cleaning the hopper, firstly coat a little lube on the positions of the sealing rings on the expansion tube, then insert one end into the feed opening in the hopper. -
Page 11: Stainless Steel Stirring Shaft
HOMMY ENTERPRISE (XINHUI) CO., LTD. STAINLESS STEEL STIRRING SHAFT When install the stainless steel stirring shaft, locate two orifices on the plastic scrapper to two locks on the shaft body, and then press enter. Note: the sharp side of the plastic scrapper must be outward. -
Page 12: Throat Block Disassembly
HOMMY ENTERPRISE (XINHUI) CO., LTD. ●Throat block disassembly Step 1 Step 2 Step 3 Step 4 Step 5 Step 6 Step 7 Step 8 Step 1: Screw out the four fixing bolts in counterclockwise. http://www.hommy.com 11 - 32... - Page 13 HOMMY ENTERPRISE (XINHUI) CO., LTD. Step 2: Pry out the Fixing seat and locating sleeve form the stirring shaft Step 3: Pry out the two sealing gaskets from the throat block. Step 4: Remove the star-cover. Step 5: Screw out the sealing nut from the cross bar in counterclockwise.
-
Page 14: Usage Method
HOMMY ENTERPRISE (XINHUI) CO., LTD. 1-4）Push the stirring shaft into the cylinder. To ensure the stirring shaft is located above the transmission shaft position slightly turn the stirring shaft until it is on the correct position. If the installation is correct, the stirring shaft will no extend to the cylinder. - Page 15 HOMMY ENTERPRISE (XINHUI) CO., LTD. If the installation is correct, the stirring shaft will no extend to the cylinder. ●Usage method 4 (Machine 2. Install throat block. Fix and tighten the throat block assembly cleaning) with the four fixing bolts...
-
Page 16: Usage Method 5 (Machine Disinfecting)
HOMMY ENTERPRISE (XINHUI) CO., LTD. 3. Be sure the machine stops working, to wipe the hopper and the area near the hopper with towel. Note: You have already disinfected the hopper and the parts, therefore, before 4. Place a bucket under the throat block continue these steps, please must to outlet, pull down the handle. -
Page 17: Usage Method 6 (Ice Cream Production)
HOMMY ENTERPRISE (XINHUI) CO., LTD. every day. ● Usage method 6 (Ice cream Heat treatment procedure is the function production) of the stirring tank and the temperature of Step 1: Put the mixture into the hopper. the materials in the material storage cylinder... -
Page 18: Cleaning With Brush Tool
HOMMY ENTERPRISE (XINHUI) CO., LTD. Do not attempt to extract product or remove the machine during the heating cycle, at that time the mixture is very hot, and the machine has high pressure. Step 4: When the machine resumes working,... -
Page 19: In Cleaning And Disinfecting
HOMMY ENTERPRISE (XINHUI) CO., LTD. strong may damage the parts, cleaning liquid is too weak to be unable to provide adequate cleaning or disinfecting. Step 4: Clean and wipe all the outer surface Routine maintenance ● of ice cream machine with a clean checking and disinfected towel. -
Page 20: Hm116 Machine Keyboard
HOMMY ENTERPRISE (XINHUI) CO., LTD. HM901 MACHINE KEYBOARD Check indicator Mixture level light indicator light Mode switch Display all setting message. When machine When this light shining, it happens problem, means ice cream mixture this light shining. in hopper is not enough... -
Page 21: Keyboard Instruction
HOMMY ENTERPRISE (XINHUI) CO., LTD. Model: HM116 Keyboard instruction 06/09 10:15 ( Mon ) 1. Switch on the machine (Stand by Heating(keep fresh) mode) （ ） Figure 6 Switch on the machine, date and time should be Note: If there is little mixture in hopper, then this shown on screen. - Page 22 HOMMY ENTERPRISE (XINHUI) CO., LTD. Model: HM116 5）Date setting menu 06/09 10:15 ( Mon ) Parameter data table: Hopper temperature sensor T1=10℃ SETUP PAGE 06 ← Cylinder temperature sensor T2=-5℃ DAY=09 Motor current MA=3.0A 6）Hour setting menu (24 hours) Ice cream dispensing quantity CON=1000 06/09 10:15 ( Mon ) 8.
-
Page 23: Warning Message Table
HOMMY ENTERPRISE (XINHUI) CO., LTD. Model: HM116 about 5 seconds to lock keyboard, after that no screen displaying as follows: function press any button, press again (RUN) button 06/09 10:15 ( Mon ) for 5 seconds to unlock the keyboard, the keyboard Cooling（LOCK）... - Page 24 HOMMY ENTERPRISE (XINHUI) CO., LTD. Model: HM116 Plastic scrapper excessive Cause supercool, and ice cream Regular replacement. wear. dispensing not hard enough. Do not install axis sleeve. Damage main components. Installed correctly. Fixing bolt on throat block is Cause material leaking from the Screw again and tighten the fixing not tightening enough.
-
Page 25: Troubleshooting Guide
HOMMY ENTERPRISE (XINHUI) CO., LTD. Model: HM116 E8 error code. ③ Main PC board bad working. ① Lower voltage. ① Improve power supply. Mixer motor can ② Main motor bad working. ② Replace component. not work, and E2 error code displays ③... - Page 26 HOMMY ENTERPRISE (XINHUI) CO., LTD. Model: HM116 ⑧ Temperature sensor (in cylinder, in hopper) loose (bad working). No ice cream ① Little material in cylinder. ① Pull out the expansion tube, or air ② The expansion tube air intake close.
- Page 27 HOMMY ENTERPRISE (XINHUI) CO., LTD. Model: HM116 ● Troubleshooting guide (3): Trouble Possible cause Solution Material ① Fixing bolt loose. ① Screw and tighten. ② Throat block bad installation. ② Tighten the throat block again with leaking ③ O seals drop off.
-
Page 28: Refrigeration System Diagram
HOMMY ENTERPRISE (XINHUI) CO., LTD. Model: HM116 REFRIGERATION SYSTEM DIAGRAM 1. Compressor. 2. Condenser. 3. Throttling device. 4. Hopper. 5. Cylinder. ELECTRIC WIRING DIAGRAM Electric wiring diagram: HM901 air-cooled model (3 phase, 220V/60Hz) http://www.hommy.com 27 - 32... -
Page 29: Electric Wiring Diagram
HOMMY ENTERPRISE (XINHUI) CO., LTD. Model: HM116 Electric wiring diagram: HM901 air-cooled model (380V/50Hz) http://www.hommy.com 28 - 32... - Page 30 MIX-R MIX-L PUMP-R PUMP-L black white 4-WAY VALVE HOPPER CYLINDER HOPPER CYLINDER PHASE VDD 5 13 5 13 SLPR-4S 3-PHASE SEQUENCE P-ROTECTION RELAY 750W TAJ4519Z BEATER HM901-F035-PMCH COMPRESS OR Electric wiring diagram: HM901 air-cooled model (220V/50Hz) http://www.hommy.com 29 - 32...
-
Page 31: Spare Part Replacement
HOMMY ENTERPRISE (XINHUI) CO., LTD. Model: HM116 INPUT 220V/50Hz GND L N MODE:HM901-03 KELLY BLUE BROWN SWITCH LEVEL SENSOR PRESSURE SENSOR MODE:HM901-02 HOPPER TEMP.SENSOR Terminal CYLINDER TEMP.SENSOR block +12V LS-1 LS-2 +12V PHASE BEATER-L HIGHT PRESSURE power +12V HM726-MAIN CONTROLLER... - Page 32 At least The company reserves the right to the improvement of all models, subject to change, without notice! Manufacturer: HOMMY ENTERPRISE (XINHUI) COMPANY LIMITED. Address: NO. 36-1 INDUSTRY ROAD, HUICHENG TOWN, XINHUI AREA, JIANGMEN CITY, GUANGDONG PROVINCE, 529100 CHINA. Post code: 529100.
