Williams Sound SoundPlus Infrared System WIR TX925 Specification page 2

SoundPlus
®
MOD 232 Modulator:
Total Harmonic Distortion:
Switchable compression gain:

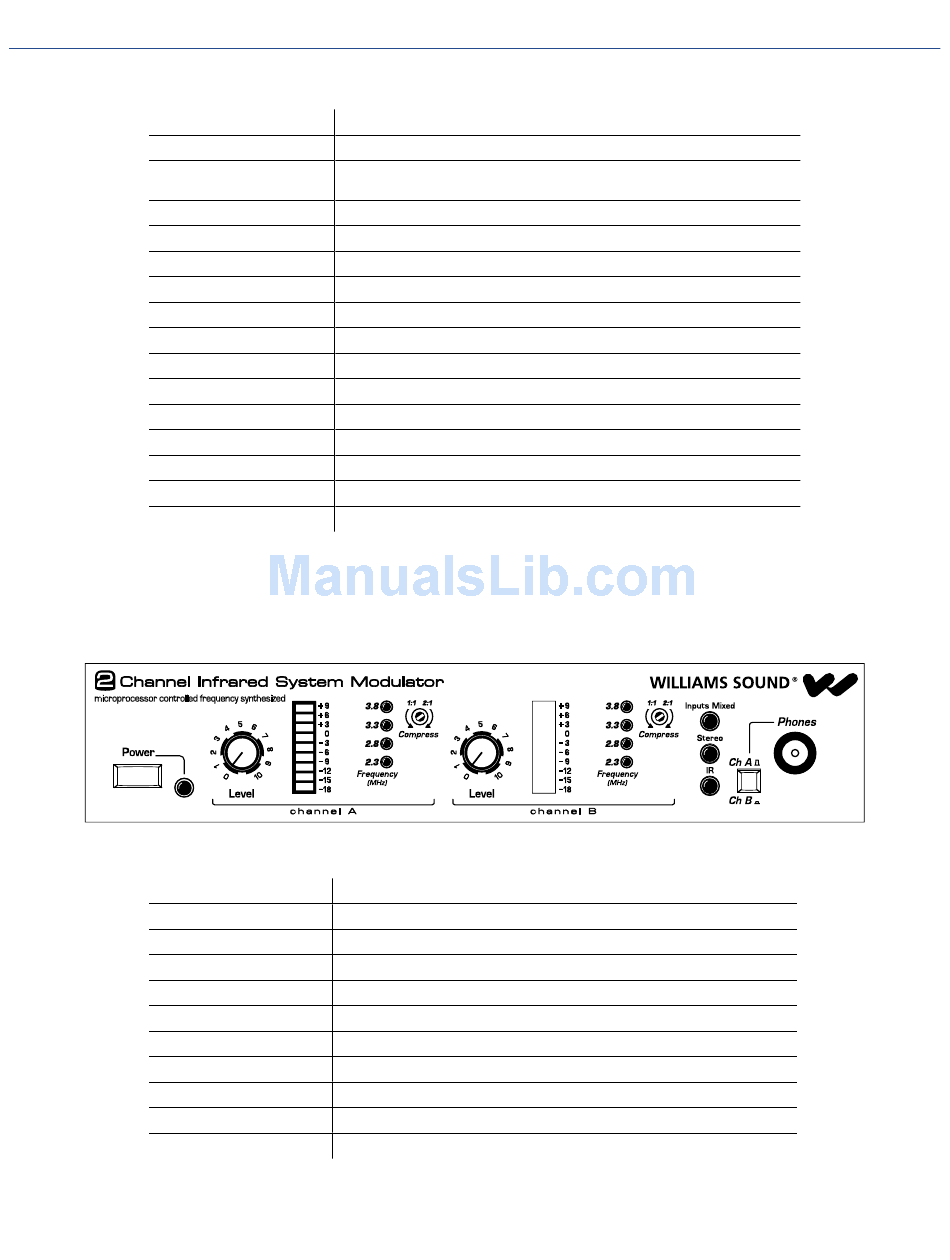

Fig. 1: MOD 232 Front Panel
Power Switch:
Power Indicator:
Audio Level Controls:
Audio Indicators:
Carrier LEDs:
Compress Control:
Input Mix LED:
Stereo LED:
Phones Switch:
Phones Output:
Infrared Test LED:
NOTE: SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE!
Infrared System
Size, Weight: 8.5" W x 8.2" D x 1.7" H (21.5 cm x 20.8 cm x 4.4 cm), 3.1 lbs (1.5 kg)
Color: Black epoxy paint with white legends
Rack Mount: 1/2 rack space wide, 1 rack space high, one or two modulators may be mounted in a
single IEC rack space with RPK 005 (single) or RPK 006 (double) Rack Mount Kits
Power Supply: Wall Transformer, 24VAC, 50-60 Hz, 15VA
North America: TFP 016, UL/CSA
Europe: TFP 027-01, 2-pin Schuko plug, CE
UK: TFP 027-02, 3-pin UK plug, CE
Modulation: FM Wideband, +50kHz deviation, 50uS pre-emphasis
Carrier Frequency: Channel A: Selectable, 2.3/2.8/3.3/3.8 MHz,
Channel B: Selectable, 2.3/2.8/3.3/3.8 MHz
Signal-to-Noise Ratio: More than 60dB
Frequency Response:
30 to 16,000 Hz, +1 dB, -3 dB, electrical response
Less than 2%, electrical response
Audio Processing:
Compression (slope) adjustable from 1:1 or 2:1
Moderate: 16 dB. Max: 33 dB
Auto Carrier Shut-Off: 15-minute timer shuts off carrier when no audio is present (can be disabled)
Two-position push button, ON/OFF
Green LED
CH A and CH B Input Level, rotary knobs
CH A and CH B Audio Level, 10-segment LED's
4 green LED carrier "on" indicators per channel (indicates frequency, malfunctions)
1:1 or 2:1
Indicates inputs A and B audio are mixed and transmitted by CHA, CHB off
Indicates stereo mode
Selects CH1 or CH2 for phones when not in stereo mode
1/4" TRS headphone jack. Accepts stereo, mono, and any impedance phones.
IR LED for receiver testing, monitoring, and audio signal testing.
