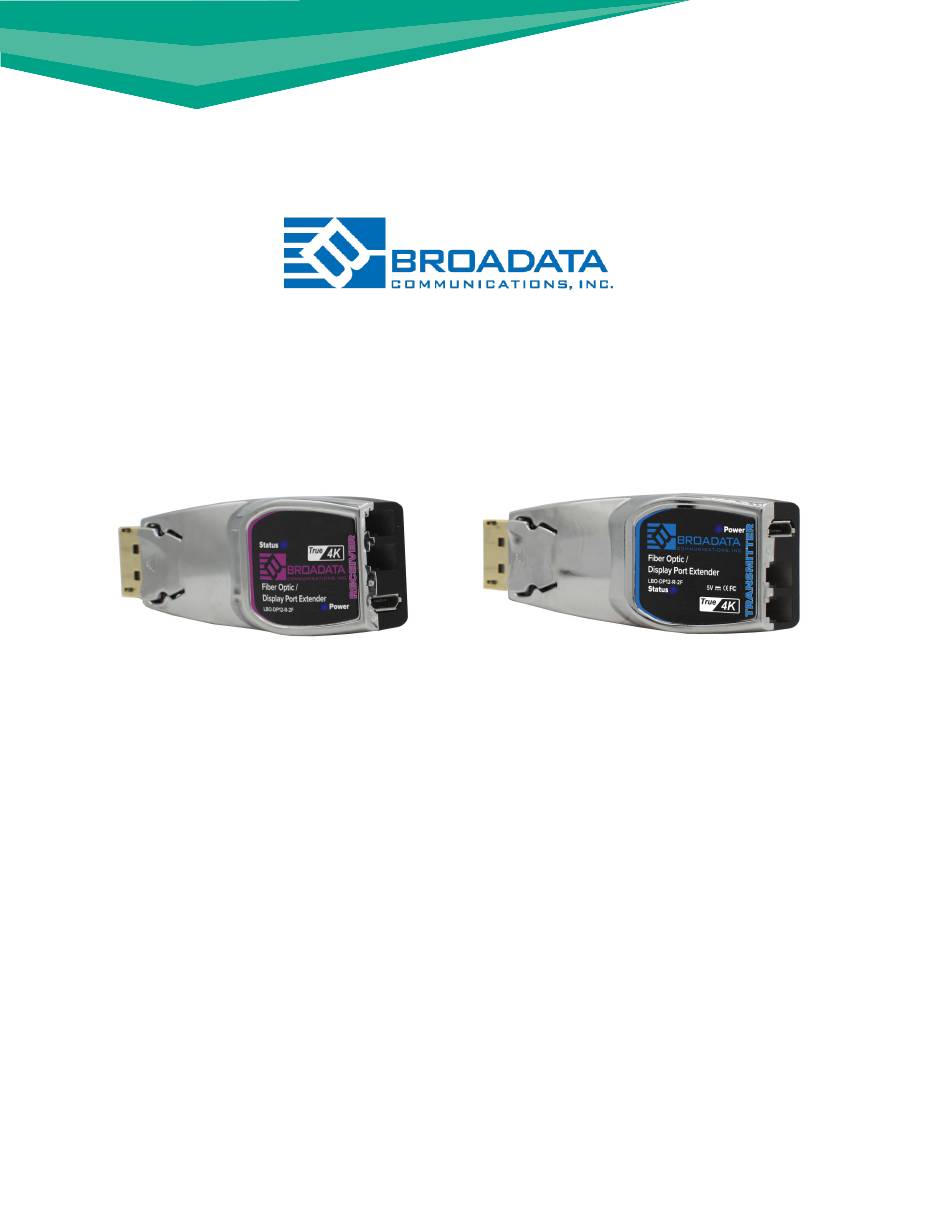

LINKBRIDGE™ FIBER OPTIC / DISPLAY PORT
TRANSMISSION SYSTEM
LBO-DP12-T-2F / LBO-DP12-R-2F
BCI reserves the right to make changes to the products described herein without
prior notice or consent. No liability is assumed as a result of their use or application.
All rights reserved.
©2019 Broadata Communications, Inc.
Advertisement
Table of Contents
Related Manuals for Broadata Communications LINKBRIDGE LBO-DP12-R-2F
Summary of Contents for Broadata Communications LINKBRIDGE LBO-DP12-R-2F
- Page 1 TRANSMISSION SYSTEM LBO-DP12-T-2F / LBO-DP12-R-2F BCI reserves the right to make changes to the products described herein without prior notice or consent. No liability is assumed as a result of their use or application. All rights reserved. ©2019 Broadata Communications, Inc.
- Page 2 SAFETY INSTRUCTIONS AND COMPLIANCE DECLARATION PLEASE OBSERVE THE FOLLOWING SAFETY PRECAUTIONS AS OUR PRODUCTS CONTAIN CLASS I LASER PRODUCTS WARNING Do not disconnect the fiber optic connector while the unit is powered up. Exposure to laser radiation is possible when the laser fiber optic connector is disconnected while the unit is powered up.
- Page 3 SAFETY INFORMATION Do not use this device near water/liquids. This device should not be exposed to dripping and splashing or liquids. Clean only with dry cloth. Do not use solvents such as paint thinners and acetone to clean external casing. Such agents will remove any labels on the device.
-
Page 4: Table Of Contents
TABLE OF CONTENTS PRODUCT DESCRIPTION OPERATION CONTROL AND FUNCTIONS TRANSMITTER / RECEIVER CONNECTION DIAGRAM SYSTEM SETUP SPECIFICATIONS MAINTENANCE AND TROUBLESHOOTING SERVICE PROCEDURE REPLACEMENT POLICY RETURN AND REPAIR SERVICE LIMITED WARRANTY LinkBridge Fiber Optic/DisplayPort Transmission System User Manual (LBO-DP12-T-2F / LBO-DP12-R-2F) -
Page 5: Product Description
PRODUCT DESCRIPTION The LBO-DP12 Series is a high performance, low cost, small form-factor, directly pluggable Fiber Optic 4K DisplayPort Transmission System (Transmitter and Receiver). It transmits 4K (4096x2160) at 60Hz DisplayPort video signals over (2) LC Multimode fibers to provide full uncompressed video. -
Page 6: Operation Control And Functions
OPERATION CONTROL AND FUNCTIONS TRANSMITTER LBO-DP12-T-2F DisplayPort Connector: Connect to DisplayPort input/source equipment such as a media player, game console or set-top box. Power LED: This LED will illuminate blue when the Transmitter is connected to a DisplayPort source and receiving a signal. Status LED: This LED will blink three (3) times when a connection is made to the display side. - Page 7 OPERATION CONTROL AND FUNCTIONS RECEIVER LBO-DP12-R-2F DisplayPort Connector: Connect to DisplayPort monitor Power LED: This LED will illuminate blue when the Receiver is connected to a DisplayPort Monitor and receiving a source signal. Status LED: This LED will blink three (3) times when a connection is made to the source side.
-
Page 8: Connection Diagram
CONNECTION DIAGRAM Up to 200m (656ft) at 4K 60Hz (4096x2160) Fiber Optic/DisplayPort Transmitter Fiber Optic/DisplayPort Transmitter DisplayPort Source DisplayPort Display Figure A LinkBridge Fiber Optic/DisplayPort Transmission System User Manual (LBO-DP12-T-2F / LBO-DP12-R-2F) -
Page 9: System Setup
SYSTEM SETUP System Setup: Important: Please follow the System Setup procedure below. System may not operate properly if the start-up sequent is not followed correctly. Step 1: Carefully unpack all package contents Step 2: Power on the DisplayPort source and display. Step 3: Connect two (2) LC optical fibers between the transmitter and the receiver. -
Page 10: Specifications
SPECIFICATIONS PANEL DRAWING VIDEO SPECIFICATIONS Resolution Up to 4K @ 60Hz, 4:4:4 Connector DisplayPort Male Protocol EDID/ DPCD/HDCP 1.3 Capable OPTICAL Fiber Type Multimode Number of Fibers Connector Dynamic Range PHYSICAL Dimensions 1.02” (W) x 2.83” (D) x 0.59” (H) Power Consumption 1.15W (TX) / 1.35W (RX) LED Indicator... -
Page 11: Maintenance And Troubleshooting
MAINTENANCE AND TROUBLESHOOTING 3.1 Maintenance There is no operator maintenance other then keeping the units clean. However, observe the following light indicators to make sure that the unit is working properly: 3.2 Troubleshooting If the LBC-DP12-T-2F or LBC-DP12-R-2F units do not operate properly after installation, check for possible cable breaks, loose connections, and incorrect cable connections. -
Page 12: Service Procedure
If you have a problem with your unit, please contact the Customer Service Department. To facilitate our return/ repair processing please contact Broadata Communications, Inc. to obtain a Return Material Authorization (RMA). Please include the following information: • Product Model Number •... -
Page 13: Limited Warranty
LIMITED WARRANTY 6.0 LIMITED WARRANTY Broadata Communications, Inc. (BCI) warrants, for a period of one year from date of ship- ment, each product sold shall be free from defects in material and workmanship. BCI will correct, either by repair, or at BCI’s election, by replacement, any said products that in our sole discretion prove to be defective and are returned to the manufacturing location within 30 days after such defect is ascertained. - Page 14 Broadata Communications, Inc. 2545 West 237th Street, Suite K Torrance, CA 90505 1-800-214-0222 (310) 530-1416 (310) 530-5958 (Facsimile) e-mail: Sales@Broadatacom.com 2545 West 237th Street Website: www.broadatacom.com Torrance, CA 90505 800•214•0222 310•530•1416 e-mail: Sales@broadatacom.com www.broadatacom.com LinkBridge Fiber Optic/DisplayPort Transmission System User Manual (60000LBO-DP12-T/R-2F)
