Broadata Communications LBC-SPH4-1H3B-IR User Manual

Link bridge hd baset 3x transmission system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

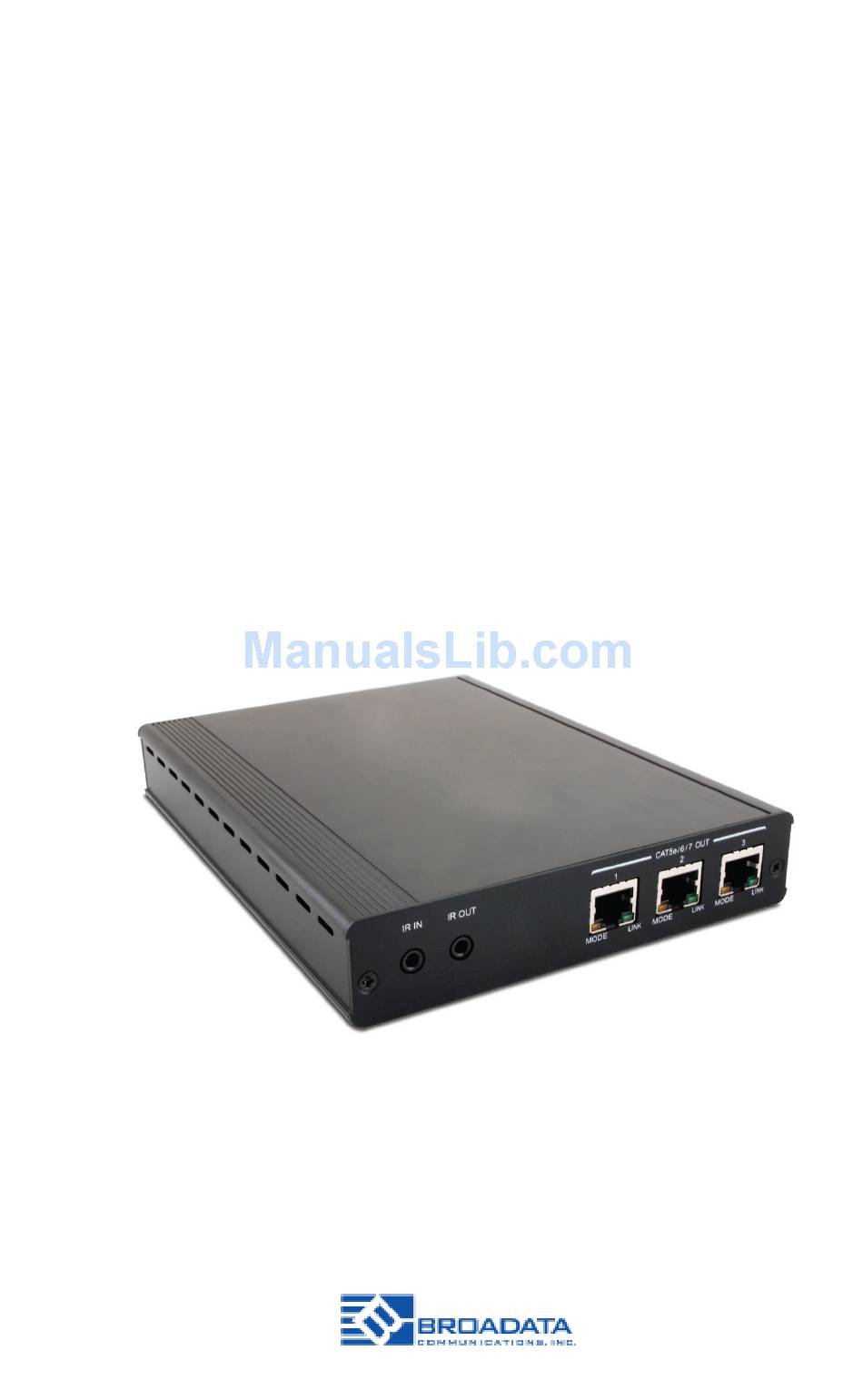

LBC-SPH4-1H3B-IR
Link Bridge
HD BaseT
TM
3x Transmission System
BCI reserves the right to make changes to the products described herein without
prior notice or consent. No liability is assumed as a result of their use or
application. All rights reserved.
©2017 Broadata Communications, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LBC-SPH4-1H3B-IR and is the answer not in the manual?

Questions and answers

Related Manuals for Broadata Communications LBC-SPH4-1H3B-IR

Summary of Contents for Broadata Communications LBC-SPH4-1H3B-IR

  • Page 1 HD BaseT 3x Transmission System BCI reserves the right to make changes to the products described herein without prior notice or consent. No liability is assumed as a result of their use or application. All rights reserved. ©2017 Broadata Communications, Inc.
  • Page 3 LBC-SPH4-1H3B-IR User’s Manual Link Bridge HD BaseT 3x Transmission System SAFETY INSTRUCTIONS AND COMPLIANCE DECLARATIONS PLEASE OBSERVE THE FOLLOWING SAFETY PRECAUTIONS SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.

  • Page 4: Table Of Contents

    LBC-SPH4-1H3B-IR User’s Manual Link Bridge HD BaseT 3x Transmission System TABLE OF CONTENTS 1.0 PRODUCT DESCRIPTION............... 5 2.0 OPERATION CONTROLS AND FUNCTIONS........6 2.1 FRONT PANEL.................. 6 2.2 REAR PANEL ................8 3.0 IR CABLE PIN ASSIGNMENT ............9 4.0 MAINTENANCE AND TROUBLESHOOTING ......... 10 4.1 MAINTENANCE ................

  • Page 5: Product Description

    LBC-SPH4-1H3B-IR User’s Manual Link Bridge HD BaseT 3x Transmission System 1.0 PRODUCT DESCRIPTION FEATURES • Extend HDMI Signals up to 100 meters Over One CAT 5e/6 Cable • Supports 4K2K & Full HDTV Video Resolutions up to 720p/1080i/1080p@60 Hz • Fully Uncompressed Video & Audio Provides Zero Loss of Quality •...

  • Page 6: Operation Controls And Functions

    LBC-SPH4-1H3B-IR User’s Manual Link Bridge HD BaseT 3x Transmission System 2.0 OPERATION CONTROLS AND FUNCTIONS 2.1 Front Panel 1. HDMI IN: Connect to HDMI equipped source equipment such as a DVD/Blu-ray player or games console. 2. SYNC LED: This LED will illuminate when the HDMI input is connected to a HDMI source and receiving a signal.
  • Page 7 LBC-SPH4-1H3B-IR User’s Manual Link Bridge HD BaseT 3x Transmission System 6. SERVICE: Reserved for manufacture use only. 7. POWER LED: The LED will illuminate when connected to an active power supply. 8. DC 24V: Connect the 24V DC power supply to the unit and plug the adaptor into an AC outlet.

  • Page 8: Rear Panel

    LBC-SPH4-1H3B-IR User’s Manual Link Bridge HD BaseT 3x Transmission System 2.2 Rear Panel 1. IR IN: Connect the supplied IR Receiver cable for IR signal reception. Ensure that remote being used is within the direct line-of-sight of the IR Extender.

  • Page 9: Ir Cable Pin Assignment

    LBC-SPH4-1H3B-IR User’s Manual Link Bridge HD BaseT 3x Transmission System 3.0 IR CABLE PIN ASSIGNMENT Broadata Technical Support, Sales@Broadatacom.com...

  • Page 10: Maintenance And Troubleshooting

    However, observe the following light indicators to make sure that the unit is working properly: 4.2 Troubleshooting If the LBC-SPH4-1H3B-IR units do not operate properly after installation, check for possible cable breaks, loose connections, and incorrect cable connections. If problems persist that may be fiber related, contact BCI at 1-800-214-0222 for further assistance.
  • Page 11 LBC-SPH4-1H3B-IR User’s Manual Link Bridge HD BaseT 3x Transmission System c. Cable connections at both channels are securely fastened to each connector. Turn the power off, then back on to reset the link. Broadata Technical Support, Sales@Broadatacom.com Broadata Technical Support, Sales@Broadatacom.com...

  • Page 12: Specifications

    LBC-SPH4-1H3B-IR User’s Manual Link Bridge HD BaseT 3x Transmission System 4.0 SPECIFICATIONS Video/ Audio Specifications HDMI Version 1.4 with 3D, 4K×2K support Video Resolution 4K2K & up to 1080p@60Hz or 1920x1200@60Hz Protocol DDC/EDID/HDCP Capable Video Bandwidth 340MHz / 10.2Gbps Audio Operating Mode Stereo Audio Audio Formats Supports up to 7.1CH &...

  • Page 13: Service Procedure

    LBC-SPH4-1H3B-IR User’s Manual Link Bridge HD BaseT 3x Transmission System 5.0 SERVICE PROCEDURE 5.1 REPLACEMENT POLICY Standard products found defective on arrival (DOA) will be replaced, based on availability, within 24 to 48 hours anywhere in the U.S. Please call Customer Service at 800-214-0222 for information.

  • Page 14: Limited Warranty

    Link Bridge HD BaseT 3x Transmission System 8.0 LIMITED WARRANTY Broadata Communications, Inc. (BCI) warrants, for a period of one year from date of shipment, each product sold shall be free from defects in material and workmanship. BCI will correct, either by repair, or at BCI’s election, by replacement, any said products that...
  • Page 15 LBC-SPH4-1H3B-IR User’s Manual Link Bridge HD BaseT 3x Transmission System Broadata Technical Support, Sales@Broadatacom.com...
  • Page 16 Broadata Communications, Inc. 2545 West 237th Street, Suite K Torrance, CA 90505 1-800-214-0222 (310) 530-1416 (310) 530-5958 (Facsimile) e-mail: CustomerService@Broadatacom.com Website: www.broadatacom.com LBC-SPH4-1H3B-IR...

This manual is also suitable for:

Lbc-sph8-1h7b-ir
