LBC-HDBT-Lite-Tx/Rx
L
B
HD
T
TM
INK
RIDGE
BASE
HDMI T
S
RANSMISSION
YSTEM
BCI reserves the right to make changes to the products described herein without
prior notice or consent. No liability is assumed as a result of their use or
application. All rights reserved.
©2013 Broadata Communications, Inc.
Advertisement
Table of Contents
Related Manuals for Broadata Communications Link Bridge LBC-HDBT-Lite-Tx
Summary of Contents for Broadata Communications Link Bridge LBC-HDBT-Lite-Tx

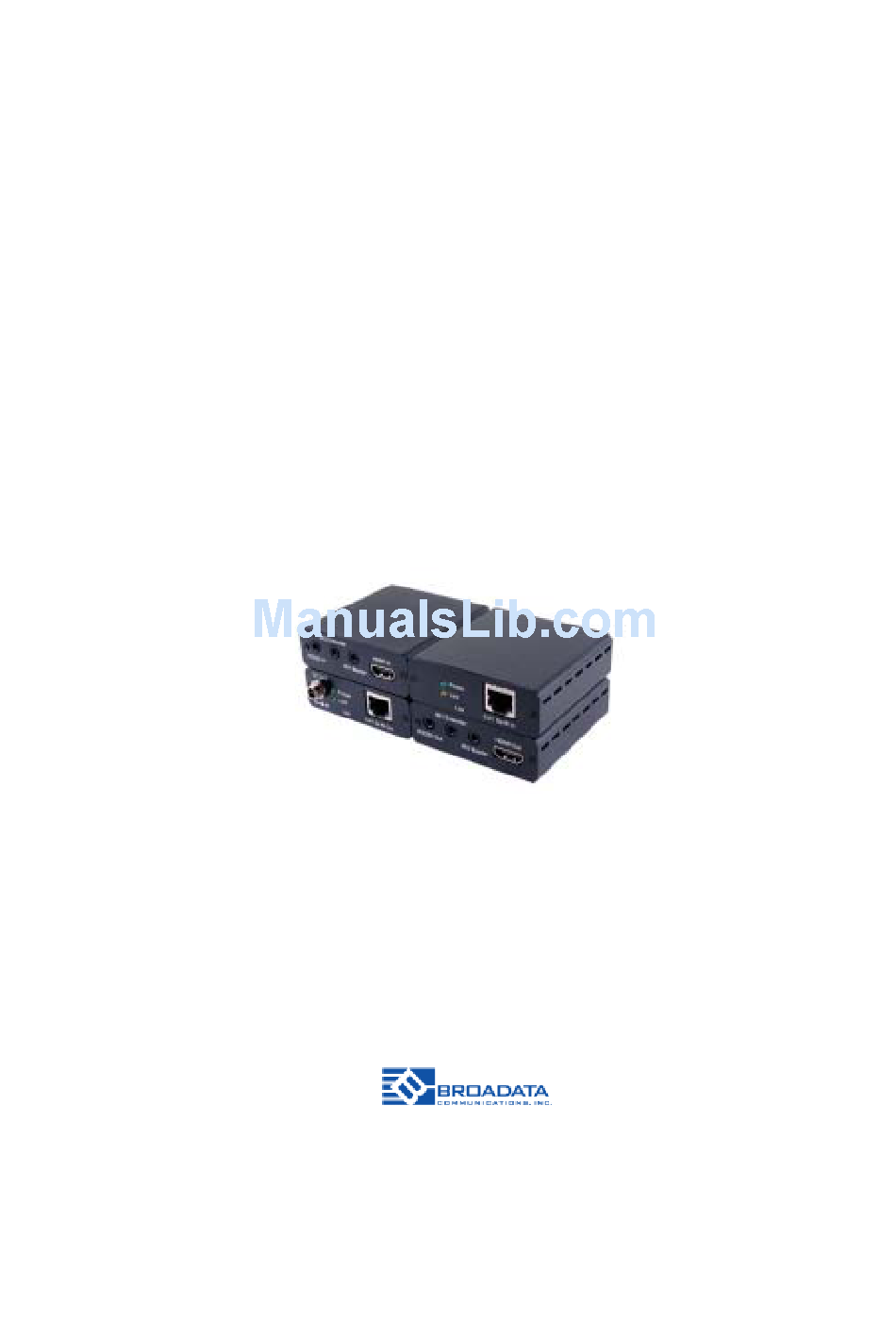

- Page 1 HDMI T RANSMISSION YSTEM BCI reserves the right to make changes to the products described herein without prior notice or consent. No liability is assumed as a result of their use or application. All rights reserved. ©2013 Broadata Communications, Inc.
- Page 2 LBC-HDBT-Lite User’s Manual Link Bridge HDbaseT HDMI Transmission System SAFETY INSTRUCTIONS AND COMPLIANCE DECLARATIONS PLEASE OBSERVE THE FOLLOWING SAFETY PRECAUTIONS SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.
-
Page 3: Table Of Contents
LBC-HDBT-Lite User’s Manual Link Bridge HDbaseT HDMI Transmission System TABLE OF CONTENTS 1.0 PRODUCT DESCRIPTION ..........5 2.0 OPERATION CONTROLS AND FUNCTIONS ....6 2.1 TRANSMITTER FRONT AND REAR PANELS ....6 2.2 RECEIVER FRONT AND REAR PANELS .......7 3.0 SERIAL CONTROL ............8 3.1 D-SUB 9 PIN ASSIGNMENT ...........8 3.2 IR BLASTER CABLE PIN ASSIGNMENT .......9 3.3 IR RECEIVER CABLE PIN ASSIGNMENT ....9... -
Page 4: Product Description
LBC-HDBT-Lite User’s Manual Link Bridge HDbaseT HDMI Transmission System 1.0 PRODUCT DESCRIPTION The LBC-HBDT-Lite-Tx/Rx with HDMI video and RS-232 over Single CAT5e/6 transmitter and receiver set can send uncompressed audio/video over a single run of CAT5e/6 cable up to 60m with PoH (Power over HDBT) feature and the added benefit of control through the built-in RS-232 and IR ports. -
Page 5: Operation Controls And Functions
LBC-HDBT-Lite User’s Manual Link Bridge HDbaseT HDMI Transmission System 2.0 OPERATION CONTROLS AND FUNCTIONS 2.1 Transmitter Front and Rear Panels 1. RS-232 In: Connect to a PC or laptop with D-Sub 9 pin male cable for the transmission of RS-232 commands. 2. -
Page 6: Receiver Front And Rear Panels
LBC-HDBT-Lite User’s Manual Link Bridge HDbaseT HDMI Transmission System 2.2 Receiver Front and Rear Panels 1. RS-232 Out: Connect to the device that is to be controlled (via D-Sub 9 pin female cable) by RS-232 commands. 2. IR 1 Blaster: Connect to the supplied IR blaster cable for IR signal transmission. -
Page 7: Serial Control
LBC-HDBT-Lite User’s Manual Link Bridge HDbaseT HDMI Transmission System 3.0 SERIAL CONTROL 3.1 D-Sub Pin Assignment Define TX/RX TxD/RxD RxD/TxD Broadata Technical Support, (800) 214-0222... -
Page 8: Ir Blaster Cable Pin Assignment
LBC-HDBT-Lite User’s Manual Link Bridge HDbaseT HDMI Transmission System 3.2 IR Blaster Cable Pin Assignment IR Blaster Power 5V IR Blaster Signal 3.3 IR Receiver Cable Pin Assignment IR Receiver IR Signal Power 5V Grounding Broadata Technical Support, Sales@Broadatacom.com... -
Page 9: Maintenance And Troubleshooting
LBC-HDBT-Lite User’s Manual Link Bridge HDbaseT HDMI Transmission System 4.0 MAINTENANCE AND TROUBLESHOOTING 4.1 Maintenance There is no operator maintenance other then keeping the units clean. However, observe the following light indicators to make sure that the unit is working properly: 4.2 Troubleshooting If the LBC-HDBT-Lite units do not operate properly after installation, check for possible cable breaks, loose connections,... - Page 10 LBC-HDBT-Lite User’s Manual Link Bridge HDbaseT HDMI Transmission System 3. If the POWER indicator and Link indicator are ON, but the channels are not operating, then: a. Check to see that the attached user equipment is turned b. Both ends of the link are connected to the corresponding equipment and to the same corresponding channel port.
-
Page 11: Specifications
LBC-HDBT-Lite User’s Manual Link Bridge HDbaseT HDMI Transmission System 5.0 SPECIFICATIONS Video Bandwidth 300MHz / 9Gbps Transmitter Input 1xHDMI, 1xIR Extender, 1xRS-232 Transmitter Output 1×CAT5e/6, 1×IR Blaster Receiver Input 1×CAT5e/6, 1×IR Extender Receiver Output 1×HDMI, 1×RS-232, 1× IR Blaster HDMI In/Out Cable Distance Up to 10 Meters CAT6 In/Out Cable Distance Up to 60 Meters... -
Page 12: Service Procedure
The LBC-HDBT-Lite System contains no user serviceable components. If you have a problem with your unit, please contact the Customer Service Department. To facilitate our return/repair processing please contact Broadata Communications, Inc. to obtain a Return Material Authorization (RMA). Please include the following information: •... -
Page 13: Limited Warranty
HDbaseT HDMI Transmission System 7.0 LIMITED WARRANTY Broadata Communications, Inc. (BCI) warrants, for a period of one year from date of shipment, each product sold shall be free from defects in material and workmanship. BCI will correct, either by repair, or at BCI’s... - Page 14 LBC-HDBT-Lite User’s Manual Link Bridge HDbaseT HDMI Transmission System Broadata Technical Support, Sales@Broadatacom.com...
- Page 15 LBC-HDBT-Lite User’s Manual Link Bridge HDbaseT HDMI Transmission System Broadata Technical Support, (800) 214-0222...
- Page 16 Broadata Communications, Inc. 2545 West 237th Street, Suite K Torrance, CA 90505 1-800-214-0222 (310) 530-1416 (310) 530-5958 (Facsimile) e-mail: CustomerService@Broadatacom.com Website: www.broadatacom.com 60000-LBC-HDBT-Lite...
