Telephone: (262) 691-3320 • Fax: (262) 701-5780 • Web: www.harken.com • Email: harken@harken.com
WARNING! Strictly follow all instructions to avoid an accident, damage to your
vessel, personal injury or death.
See www.harken.com/manuals for additional safety information.
Line holding large diameter snubber – can replace winches; greater holding power than ratchet blocks
Low profile and rounded corners – easy on crews aboard a pitching boat
Integral mounting studs – fast mounting, matches hole pattern of B8A winch
Optional winch handle adapter – use conventional winch handle for winch-like operation
Lightweight with open center – weighs less than half the weight of a winch
I N S T R U C T I O N S

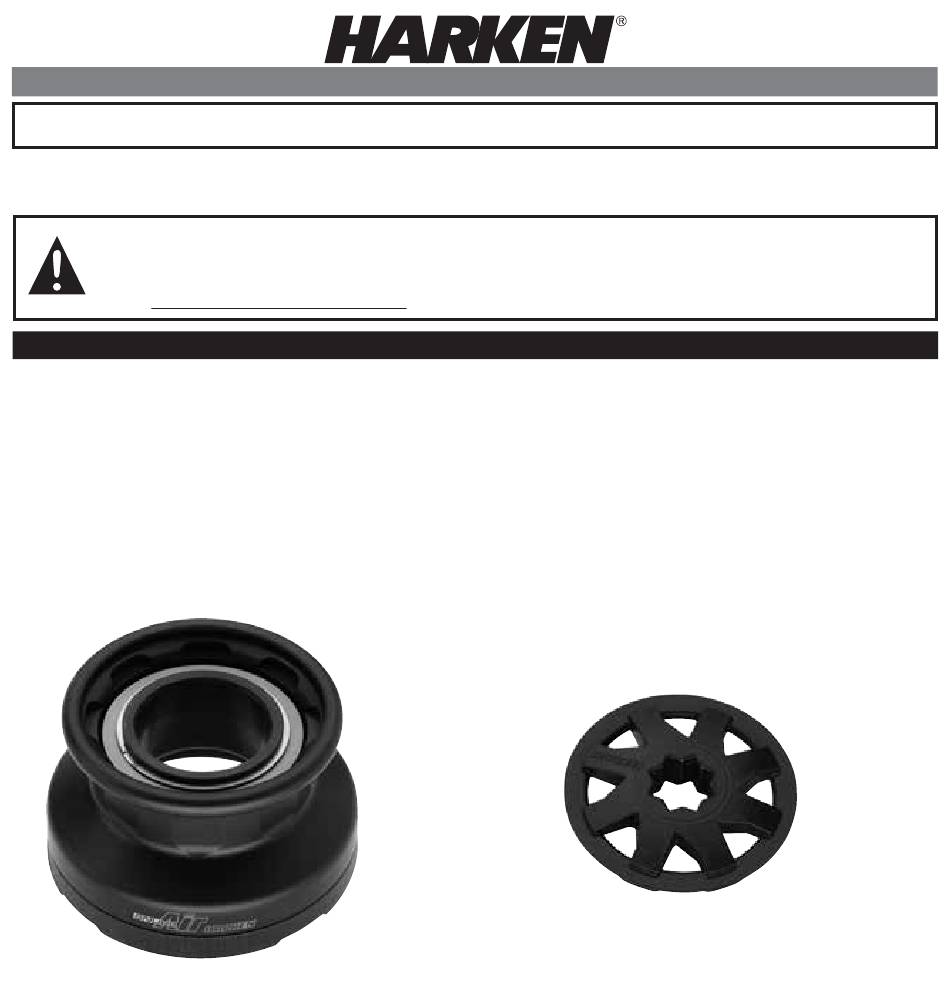

1300 SnubbAir and 1301 Handle Adapter
N15W24983 Bluemound Road • Pewaukee, WI 53072 U.S.A.
Features
1300 SnubbAir
Optional 1301 winch handle adapter
Advertisement
Table of Contents
Related Manuals for Harken 1300 SnubbAir
Summary of Contents for Harken 1300 SnubbAir
- Page 1 1300 SnubbAir and 1301 Handle Adapter N15W24983 Bluemound Road • Pewaukee, WI 53072 U.S.A. Telephone: (262) 691-3320 • Fax: (262) 701-5780 • Web: www.harken.com • Email: harken@harken.com WARNING! Strictly follow all instructions to avoid an accident, damage to your vessel, personal injury or death.
- Page 2 Specifications and Dimensions Maximum holding load Part Description 1300 SnubbAir 1000 1301 Winch handle adapter Optional 1301 winch handle adapter Bottom view A - Mounting fastener circle* 90.7 3.570 *See mounting template on page 7. K - Drum height I - Base Ø...
- Page 3 Planning Installation - Deck Strength Determine if deck is strong enough for mounting the SnubbAir. Make sure all four fasteners are through bolted using washers or backing plates and nuts. Cored decks must have solid inserts such as G-10 plates sized to distribute the load. Tapped holes will not work for installing SnubbAir. WARNING! You must mount to solid deck construction using specified fasteners in all mounting holes and nuts, washers or backing plates to achieve correct maximum working load to avoid a failure leading to an accident.
- Page 4 Installing Winch Handle Adapter Line up bosses on the underside of the adapter with the sockets inside the top of the drum. Use your fingers to press the retaining ring into the groove. Start at one end and work around the ring until it is completely seated in the groove.
- Page 5 The SnubAir provides line-holding power much like a ratchet except much more. It is perfect for spinnaker trimming. With a couple wraps of sheet on the drum, the trimmer can hold upwards of 500 lbs with just thirty pounds of holding power on the tail. The sheet easily flips off the drum for a gybe.
- Page 6 Maintenance (continued) Rotate drum while flushing Cutaway view showing flushing path. Warranty For additional safety, maintenance, and warranty information see www.harken.com/manuals or the Harken catalog. Printed in USA 5259 12/18...
- Page 7 Use base diameter dimension (Ø) to check diameter on printed paper. Drill 8.5 mm or 11/32” holes. 1300 SnubbAir Mounting Template IMPORTANT! If you print this template from a computer file, measure to confirm that template is the correct size before drilling.
- Page 8 This page intentionally left blank. Reverse side is mounting template Printed in USA 5259 12/18...
