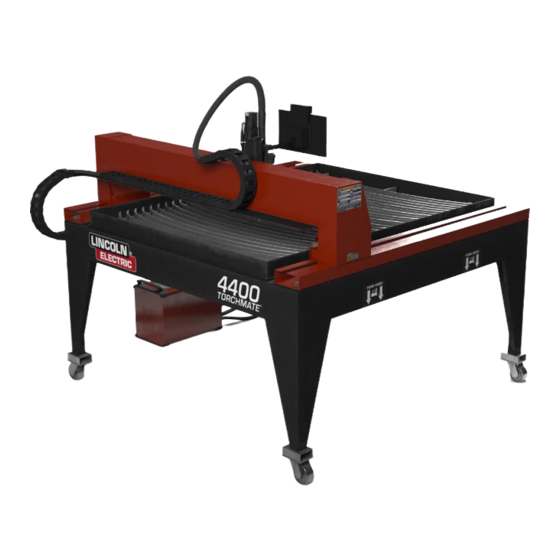

Replacing the 4x00 X-Axis Motor Belt
1
2
DOC #:7301-0-US70-111318-AM-01-02
Replacing the 4x00 X-Axis Motor Belt
Over time, the timing belts on the 4400 and 4800 machines that join the
motor and pinion gear pulleys will wear out and require replacements. The
instructions below explain the procedure for replacing the belts.
1/8 Allen Wrench
3/16 Allen Wrench
9/64 Allen Wrench
5/64 Allen Wrench
BEFORE BEGINNING, PLEASE POWER OFF ALL EQUIPMENT INCLUDING THE
ACCUMOVE CONTROLLER!*
*Irreparable damage will occur to the controller and will not be covered
under warranty if the equipment is not turned off.

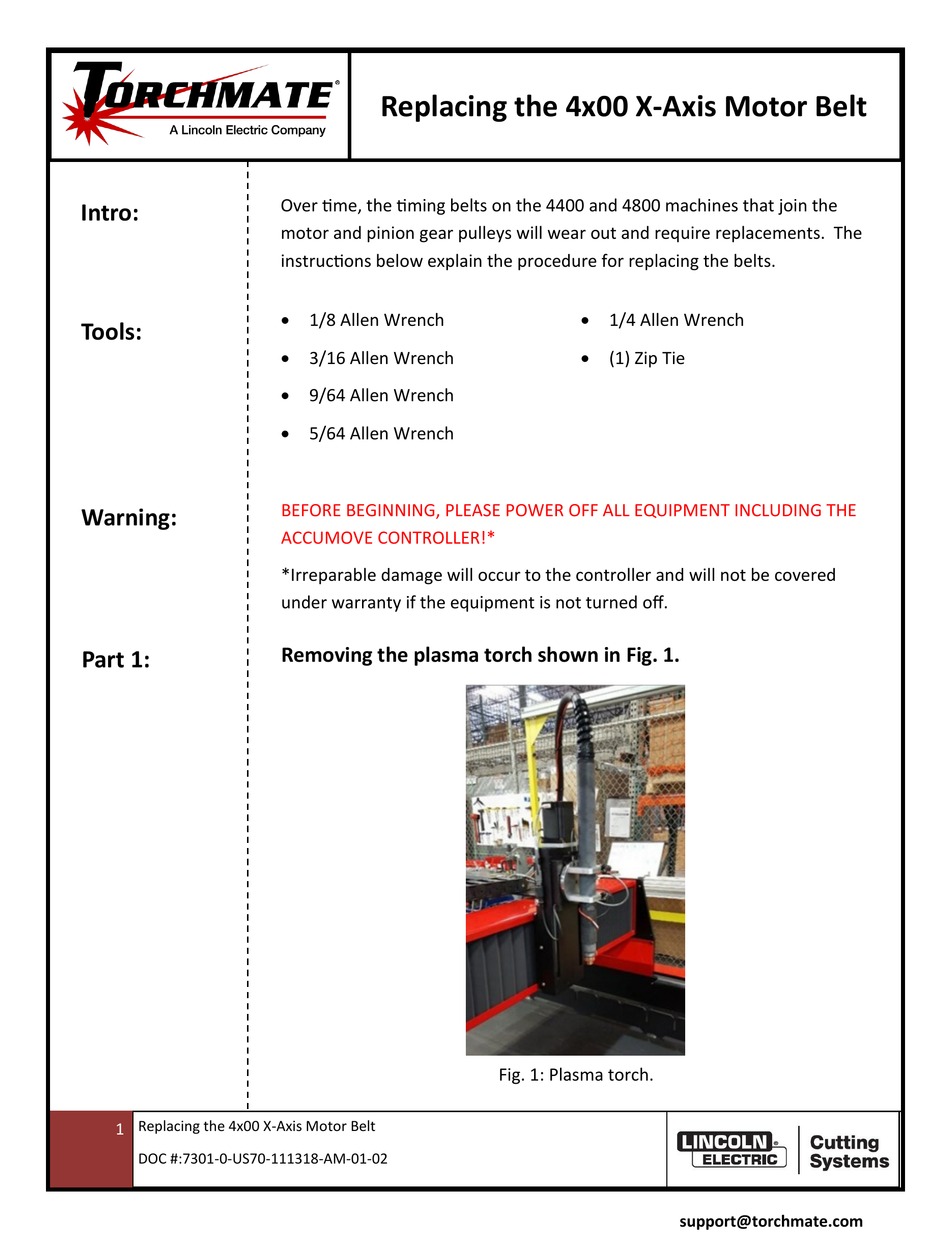

Removing the plasma torch shown in Fig. 1.
1/4 Allen Wrench
(1) Zip Tie
Fig. 1: Plasma torch.
