Sensor Electronics SEC 3500 HMI Hardware Manual page 15

TB 2
POWER,
DATA HWY,
ANALOG
OUTPUT
TB 1
(12) LOW ALARM N.C.
(11) LOW ALARM COMMON
(10) LOW ALARM N.O.
(9) MID ALARM N.C.
(8) MID ALARM COMMON
(7) MID ALARM N.O.
(6) HIGH ALARM N.C.
(5) HIGH ALARM COMMON
(4) HIGH ALARM N.O.
(3) FAULT (N.E.) N.C.
(2) FAULT (N.E.) COMMON
(1) FAULT (N.E.) N.O.
SENSOR ELECTRONICS CORPORATION
12730 CREEK VIEW AVE
SAVAGE, MINNESOTA 55378 USA
(T) 952.938.9486 (F) 952.938.9617
sales@sensorelectronic.com
SEC P/N: 1460014
Rev / ECO: A / 000209
TB 2
(1) 4-20 mA ANALOG OUTPUT
(2) DC COMMON
(3) +24 VDC
(4) DATA ISO COMMON
(5) RS485 DATA B
(6) RS485 DATA A

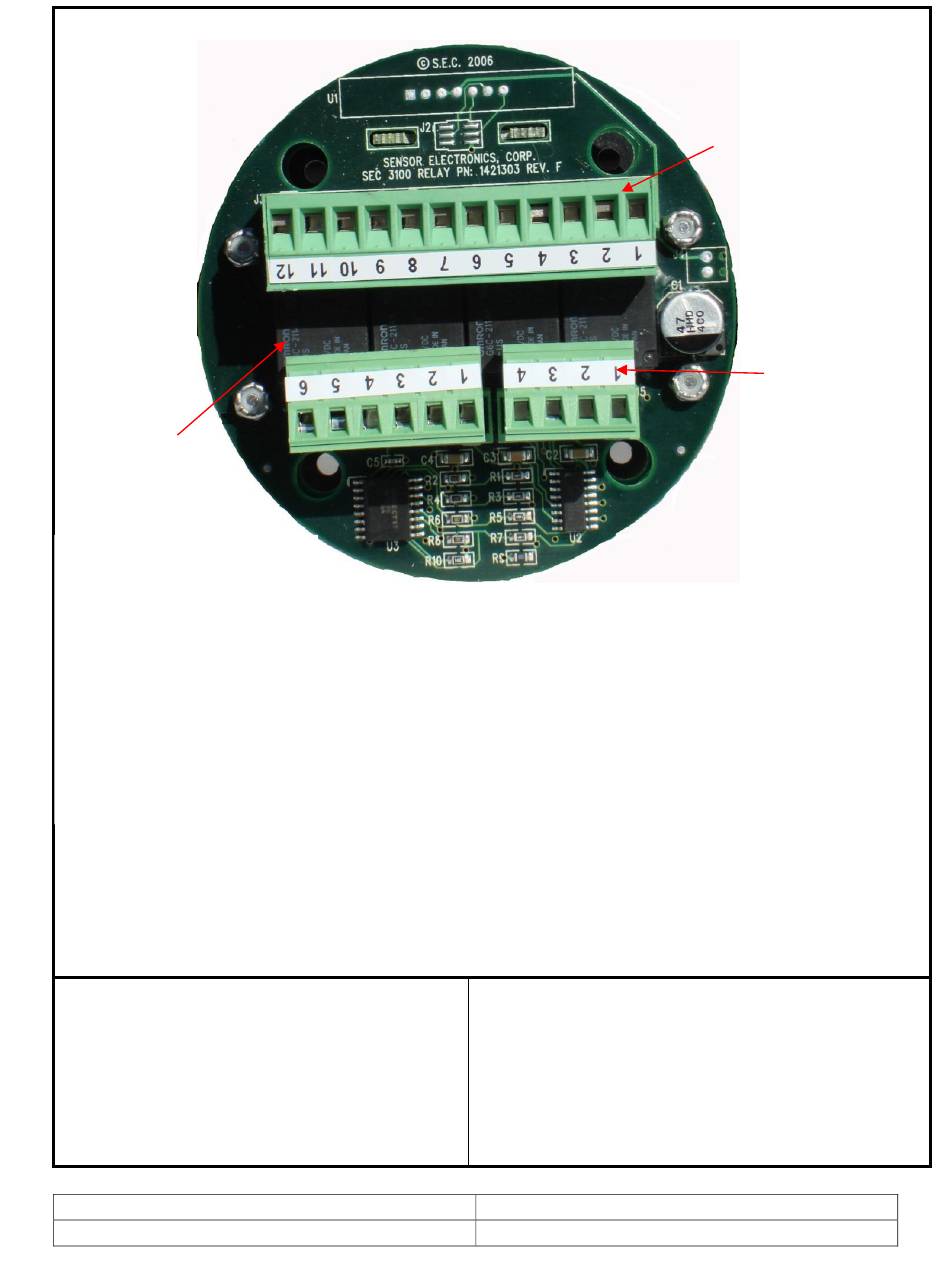

BACK VIEW OF SEC 3100
SEC 3100 WIRING
TB 1
RELAY
WIRING
TB 3
SENSOR
WIRING
TB 3
(1) WHITE
(DATA/CAL)
(2) BLUE OR GREEN
(4-20 mA)
(3) RED
(+24 VDC)
(4) BLACK
(DC COMMON)
Page 15 of 26
