N
L E I S U R E
FOR USE WITH LIQUIFIED PETROLEUM GAS

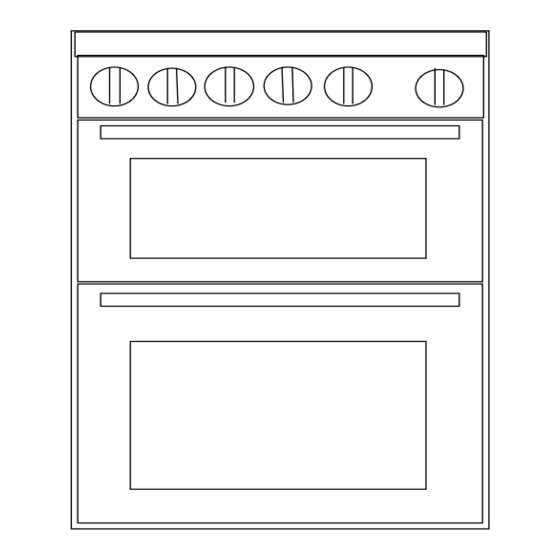

MODELS KARINA 2020 / KARINA 600
USER AND INSTALLATION INSTRUCTIONS
SPINFLO LIMITED, 4-10 Welland Close, Parkwood Industrial Estate,
GAS APPLIANCES
BUILD IN APPLIANCES
CAUTION – ALL OUTER SURFACES WILL GET HOT WHEN IN USE
FOR USE IN :-
GB, IE, FR, NL, BE, LU, ES, IT, NO, DE, DK, SE
WARNING
•
Only use this appliance in a well ventilated area.
Read the instructions before use.
•
This appliance must be installed in accordance
•
with the regulations in force.
Rutland Road, Sheffield S3 9QY, ENGLAND.
TEL: + 44 (0)114 273 8157
FAX: + 44 (0)114 275 3094
GB
Advertisement
Table of Contents
Related Manuals for spinflo Country Leisure KARINA 2020
Summary of Contents for spinflo Country Leisure KARINA 2020
- Page 1 • This appliance must be installed in accordance • with the regulations in force. SPINFLO LIMITED, 4-10 Welland Close, Parkwood Industrial Estate, Rutland Road, Sheffield S3 9QY, ENGLAND. TEL: + 44 (0)114 273 8157 FAX: + 44 (0)114 275 3094...
- Page 2 Fig 2...
-
Page 3: Provision Of Ventilation
MODELS KARINA 2020, KARINA 600, KARINA OVEN 8000, PRIMA II 9000 USER INSTRUCTIONS INTRODUCTION This appliance shall be installed in accordance with the local and national/European standards in force. Particular attention shall be given to the requirements regarding ventilation. Read the instructions before installing or using this appliance. - Page 4 reach temperature. Should the flame go out when the knob is released, the procedure should be repeated holding the knob depressed for slightly longer. For simmering, turn the knob further anti-clockwise to the low rate position. To turn the burner off, rotate knob fully clockwise until the line on the knob lines up with the dot on the control panel.
-
Page 5: Do's And Don'ts
11. To turn off: turn the control knob until the line on the control knob is aligned with the dot on the control panel. Always make sure the control knob is in the off position when you have finished grilling. OVEN 1. -
Page 6: Temperature Control
TEMPERATURE CONTROL The temperature in the oven is controlled by a thermostatic gas tap and is variable over the range 130° C to 240° C. Approximate temperatures for the settings on the control knob are shown in the table below. The temperatures indicated refer to the centre of the oven and at any particular setting the oven will be hotter at the top and cooler towards the base. - Page 7 SERVICING SERVICING MUST BE CARRIED OUT BY AN APPROVED COMPETENT PERSON. BEFORE SERVICING THE APPLIANCE SHOULD BE LEFT TO COOL AND DISCONNECTED AT THE MAINS SOCKET. AFTER SERVICING CHECK FOR GAS SOUNDNESS 1. Remove appliance from housing Lift the glass lid and remove 2 screws from either side of the hob surround trim, remove pan stop if fitted and close the lid (Cookers only).
-
Page 8: Installation
INSTALLATION INSTRUCTIONS SPECIFICATION This appliance is for use on LIQUIFIED PETROLEUM GAS ONLY. CAT I + (28-30/37) CAT I B/P (30) BUTANE (G30) 28-30 mbar BUTANE (G30) 30 mbar PROPANE (G31) 37 mbar PROPANE (G31) 30 mbar Cooker Karina 2020 Karina 600 Karina Oven Prima II... -
Page 9: Location Of Cooker
LOCATION OF COOKER This appliance maybe installed in a kitchen/kitchen diner but NOT in a room containing a bath or a shower. VENTILATION This appliance must be installed according to the relevant local and national/European standards in force. This appliance is suitable for installation into Holiday Homes and Touring Caravans. In all cases the national standards with regard to ventilation for the particular vehicle into which the appliance is to be installed must be adhered to.
