Suggested Reading
Before you go any further, you should probably make certain that you're familiar with the RedBot:
Getting Started with the RedBot

**Wheel Encoder Screws**

We will be placing screws that will later hold the
chassis.
**If you do not have a RedBot Sensor - Wheel Encoder, you will want to skip this section and move
on to the Motors section on this Assembly Guide. **
Locate the following:
1x Bottom Chassis Piece
2x 4-40 3/8" Phillips Screws
2x 4-40 Hex Nuts

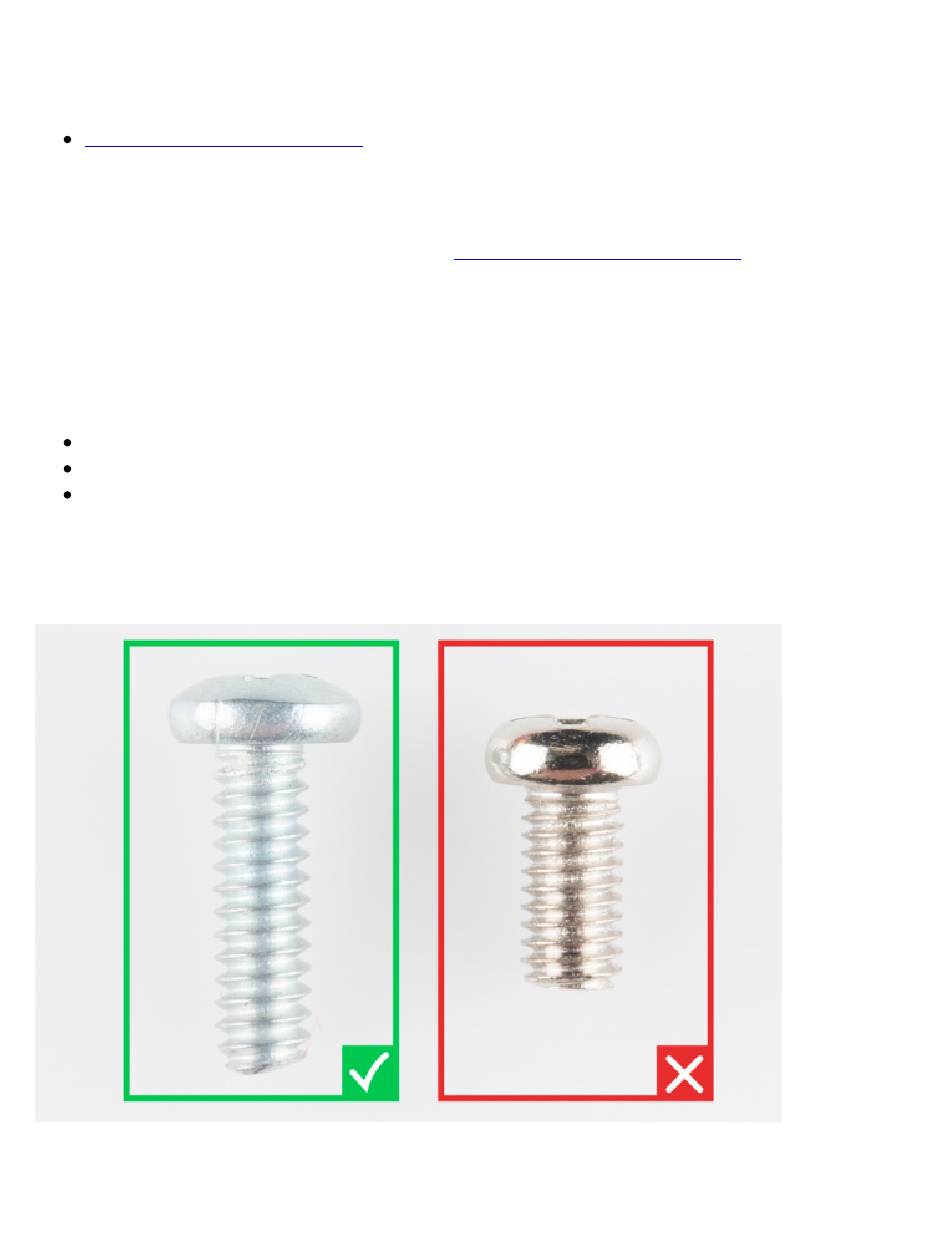

There are different types of screws in this kit. Make sure you use the 4-40 screws and nuts for the
RedBot Wheel Encoder. The 4-40 screws and nuts are packaged with the RedBot Sensor - Wheel
Encoder.
Locate the two positions on the bottom chassis piece where the 4-40 screws will go. In this step, it
doesn't matter what side you use, since both sides of the chassis are indential.
RedBot Sensor - Wheel Encoder
Page 3 of 46
to the bottom
