Summary of Contents for IEM eConnect

  • Page 1 Instructions to Use...
  • Page 2 I.E.M. Industrielle Entwicklung Medizintechnik GmbH Cockerillstrasse 69 52222 Stolberg Germany Telephone: +49 2402 9500-0 Fax: +49 2402 9500-11 Email: info@iem.de Website: www.iem.de The contents of this operating manual must not be duplicated or published without the written authorisation of I.E.M.

  • Page 3: Table Of Contents

    Technical description ........33 Care and maintenance ......... 45 eConnect – Front ........... 33 Disposal ............45 eConnect – Rear side ........33 Technical data and symbols ....... 46 Conformity ............34 Standards ............49 For your safety ..........34 Warranty and repairs ........

  • Page 4: Introduction

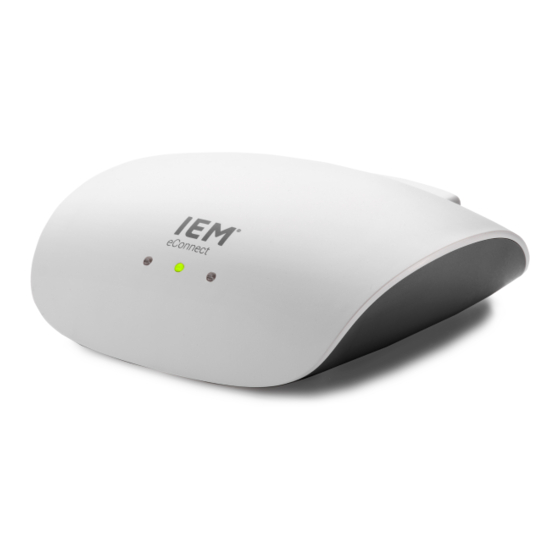

    Address I.E.M. Industrielle Entwicklung eConnect. Medizintechnik GmbH Cockerillstr. 69 The eConnect is a supplementary device for remotely 52222 Stolberg operated medical systems. It is used to receive Deutschland measurement data via Bluetooth® from certain measuring devices and to transfer it to an external...

  • Page 5: Econnect

    Upper part of housing “Mobile Lower part of housing Technical description communication” The eConnect works similar to a mobile telephone, using a mobile connection based on the international “System” LED GSM standard to transfer data. eConnect – Rear side The eConnect receives measurement data from ®...

  • Page 6: Conformity

    For your safety Conformity NOTE! The eConnect meets the requirements of the following directives: ... indicates a potential risk of damage to property or loss of product function if not avoided. ▪ MDD (93/42/EEC) ▪ RED (2014/53/EU) ▪ RoHS (2002/95/EU) The eConnect bears the CE mark.

  • Page 7: Indication And Contraindication

    ▪ The use of any other power supply unit not As the eConnect is only a supplementary device for remote medical systems, it does not have any inherent included with the product will invalidate any medical indications or contraindications.

  • Page 8: Operation

    WARNING! patient. Danger as a result of humidity! ▪ Only use the eConnect in dry locations and WARNING! avoid direct contact with water. The eConnect is not watertight. Risk of data loss if data connection is lost! ▪...

  • Page 9: Ambient Conditions

    Do not use the eConnect outside a temperature range of +5 °C to +40 °C. NOTE! ▪ Only store, transport or use the eConnect at an Damage to eConnect! air humidity (non-condensing) of 15% to 90%. ▪ Only use the power supply unit supplied to ▪...

  • Page 10: Setting Up

    Danger presented by improper preparation for use ▪ ▪ Set up the eConnect so that there is no risk of The eConnect must not be operated directly injury from a PSU cable lying around! adjacently to other devices or stacked on top of...

  • Page 11: Bluetooth

    “System” show you different information on the status communication” and “System” will light up of the eConnect. yellow simultaneously in succession. The eConnect is ready to use as soon as the “System” LED is continuously lit green and the LEDs “BT” and “Mobile communication” go out.

  • Page 12: Transferring The Measurement Values

    Operation The following information is indicated by the relevant Transferring the measurement values LED: The eConnect is functional as soon as the “System” LED lights up green. Colour Status information Yellow, Initialisation when The regular data transmission procedure from the...

  • Page 13: Malfunctions

    Transferring the measured values via mobile communications network If the eConnect is configured for transmission of the measured values via a mobile communications network, the measured values will be automatically transferred to an external database.
  • Page 14 Operation If previous measurement transmissions have not yet been completed, all data not yet sent will be sent together.

  • Page 15: Error Descriptions

    10 seconds, then insert the power supply unit back into the internal software mains socket. If the error still occurs, cease using the eConnect. Contact your service provider or specialist dealership. A connection between Error connecting Pull the power supply unit out of the mains socket, wait for the measuring device via Bluetooth®...
  • Page 16 Error descriptions Error description Cause Remedy The eConnect cannot Error connecting Select another location to operate the eConnect at. Set up establish a connection via mobile the eConnect elsewhere, for instance in another room, to the mobile communications near a window. Perform another measurement. If the error...

  • Page 17: Care And Maintenance

    Electrical scrap and electronic components have supply unit. to be treated as hazardous waste. Only clean the eConnect when it is switched off. To do this, remove the power supply unit. Liquid must not symbol on the product or packaging means penetrate the device.

  • Page 18: Technical Data And Symbols

    Storage temperature +5 to +50 °C Air humidity, not condensing 15 to 90 (operation, transport and storage) Air pressure 700 to 1060 (operation, transport and storage) The eConnect is compliant with the EMC guidelines, see chapter 12 “Manufacturer’s EMC guidelines”.
  • Page 19 Power supply: NOTE! Damage to eConnect! ▪ Only use the power supply unit supplied to avoid damage to the eConnect. ▪ Type: Mains PSU ▪ Primary (AC): Standard 230 V ~50 Hz / Universal Version 90–264 V, 47–63 Hz ▪...
  • Page 20 Technical data and symbols Symbols Symbol Meaning Manufacturer in accordance with Directive 93/42/EEC Date of manufacture (YYYY-MM) CE: Labelling of a medical device in accordance with Directive 93/42/EEC Bluetooth designation. Bluetooth is a registered trademark of Bluetooth SIG, Inc. Protect from rain and moisture Comply with the operating manual The symbol on the product or packaging means that this product should not be treated as normal domestic waste, but should be passed to a recycling point for electric and electronic devices.

  • Page 21: Standards

    ▪ I.E.M. GmbH provides a two-year warranty on I.E.M. GmbH does not grant any warranty on the power the eConnect from the date of sale. The date of supply unit provided. sale must be demonstrated using the invoice or receipt.

  • Page 22: Manufacturer's Emc Guidelines

    Manufacturer’s EMC guidelines Manufacturer’s EMC guidelines Electromagnetic interference emissions The eConnect is designed for operation in an electromagnetic environment as specified below. Only use the eConnect in such an environment. Measurement of Electromagnetic environment – guidelines Compliance interference emissions The eConnect utilises HF power for its internal function HF interference only.
  • Page 23 Manufacturer’s EMC guidelines Electromagnetic immunity The eConnect is designed for operation in an electromagnetic environment as specified below. Only use the eConnect in such an environment. Measurement of IEC 60601-1 test level Compliance level Electromagnetic environment – guidelines interference emissions Electrostatic discharge ±/- 8kV contact discharge...
  • Page 24 Manufacturer’s EMC guidelines Measurement of IEC 60601-1 test level Compliance level Electromagnetic environment – guidelines interference emissions 704 - 787 MHz 704 - 787 MHz 9 V/m; PM 50%; 217 Hz 9 V/m; PM 50%; 217 Hz 800 - 960 MHz 800 - 960 MHz 28 V/m;...
  • Page 25 In order to determine the electromagnetic environment in relation to stationary transmitters, a study of the location should be considered. If the measured field strength at the location where the eConnect is used exceeds the upper compliance level, the eConnect should be kept under observation to ensure that it functions correctly. If it is observed to be performing unusually, additional action may be necessary, such as changing the orientation or location of the eConnect.

  • Page 26: Frequency Bands

    NOTE 2: These guidelines may not apply in all cases. The distribution of electromagnetic variables is influenced by the absorption and reflection of buildings, objects and people. Frequency bands The mobile communication module of the eConnect uses the following frequency bands: Maximum transmission Band designation...
