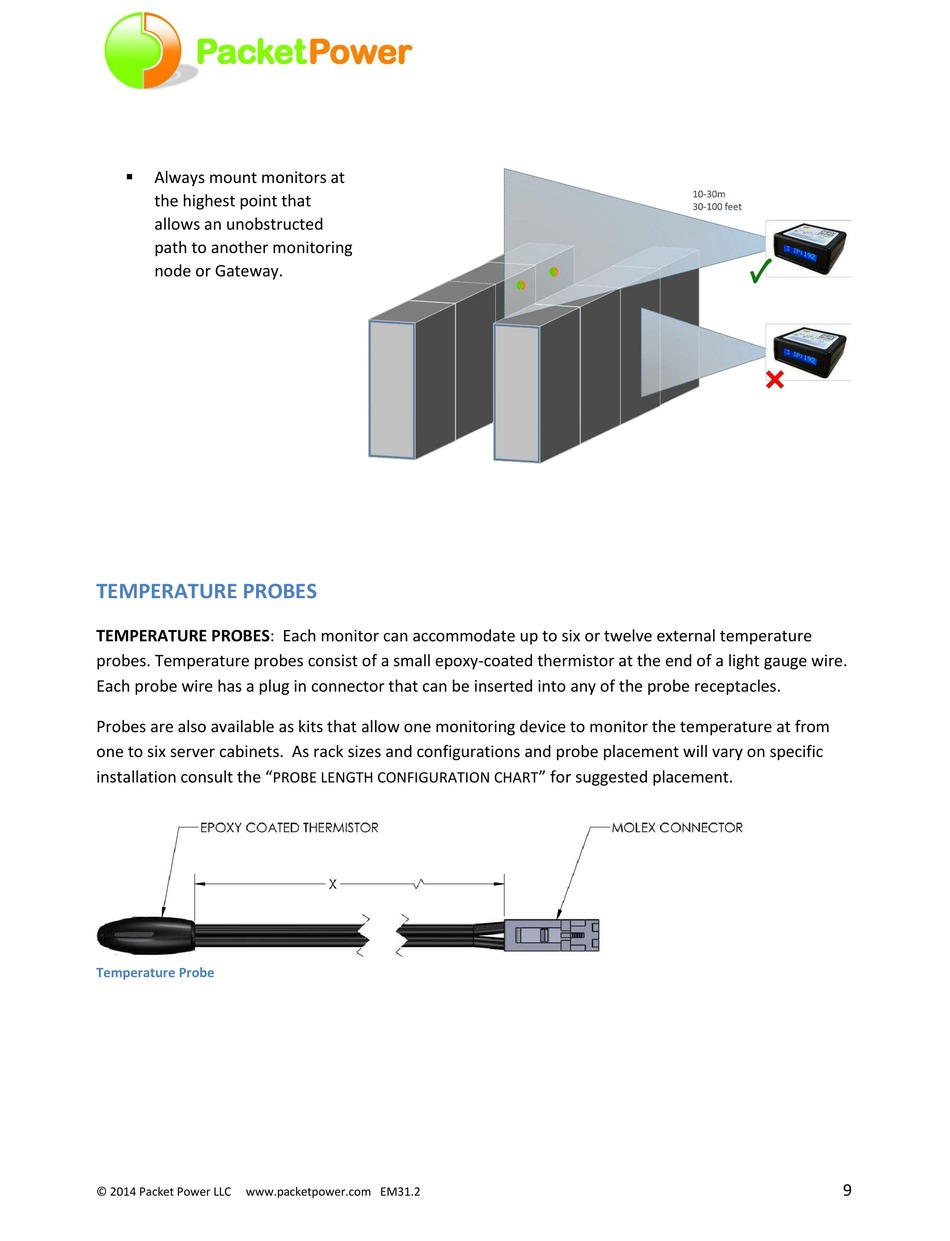

Packet Power E306-0000 Installation Manual page 9


Always mount monitors at
the highest point that
allows an unobstructed
path to another monitoring
node or Gateway.
TEMPERATURE PROBES
TEMPERATURE PROBES: Each monitor can accommodate up to six or twelve external temperature
probes. Temperature probes consist of a small epoxy-coated thermistor at the end of a light gauge wire.
Each probe wire has a plug in connector that can be inserted into any of the probe receptacles.
Probes are also available as kits that allow one monitoring device to monitor the temperature at from
one to six server cabinets. As rack sizes and configurations and probe placement will vary on specific
installation consult the "
PROBE LENGTH CONFIGURATION CHART
Temperature Probe
© 2014 Packet Power LLC www.packetpower.com EM31.2
" for suggested placement.
9
