LIB-3 0 4 & LIB-3 0 6 In st a lla t io n Gu id e
2.6 Front Panel

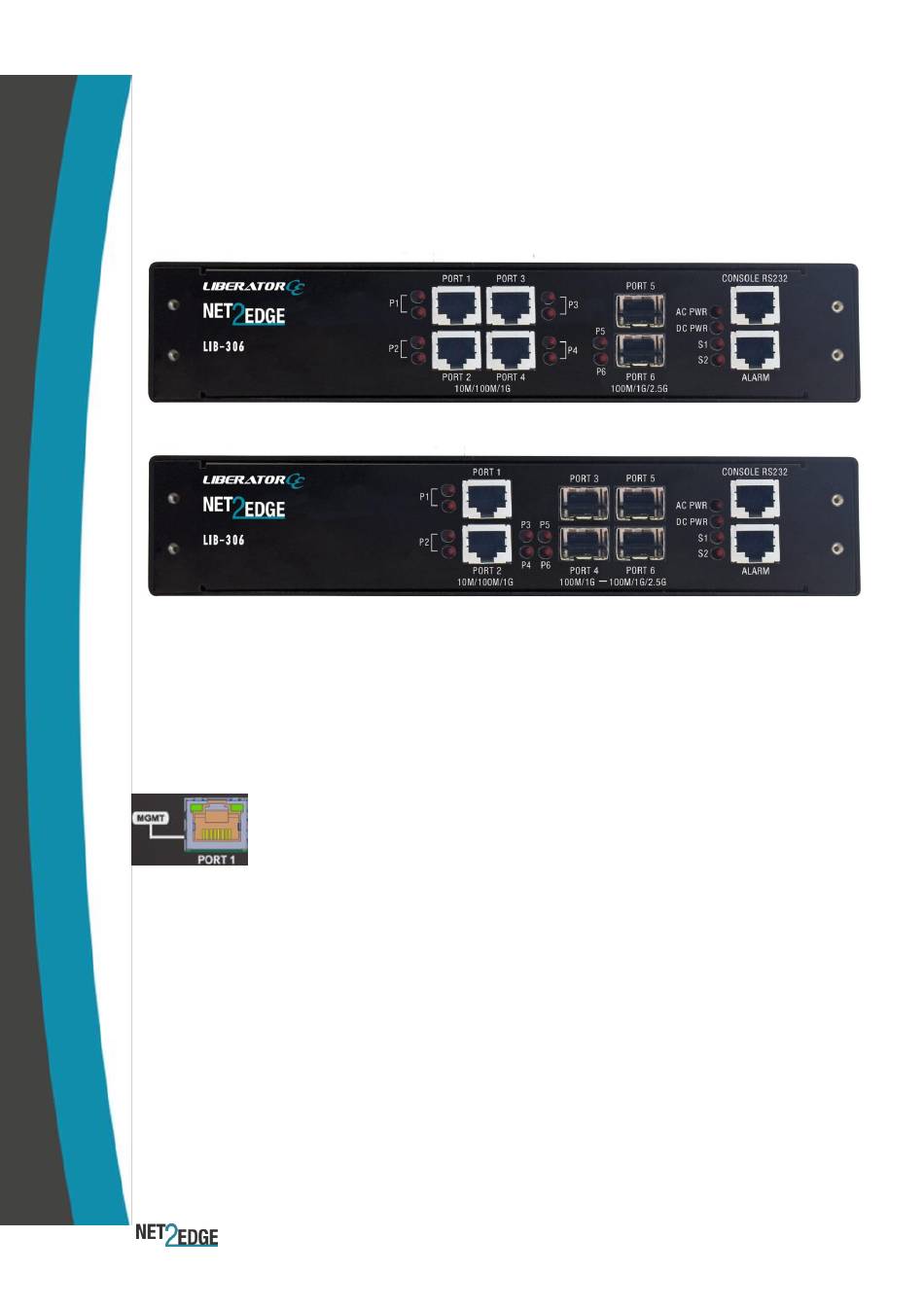

Th e LIB-3 0 6 fr o n t p a n e ls a r e sh o w n a n d d e scr ib e d b e lo w .
MGMT / PORT 1 : Po r t 1 ( MGMT) is a n o r m a l d a t a p o r t , b u t b y d e fa u lt it
w ill b e in a se p a r a t e p r iv a t e VLAN ( PVLAN 1 ) t h a t y o u ca n r e m o v e . Yo u
ca n e n a b le o r d is a b le o u t -o f-b a n d m a n a ge m e n t o n PORT 1 . PORT 1 ca n b e
o p t io n a lly co n figu r e d t o su p p o r t e it h e r o u t -o f-b a n d m a n a ge m e n t o r it ca n
b e u s e d a s a n o r m a l d a t a UNI/ NNI p o r t .
Se e Co n n e ct in g Via t h e MGMT Po r t / We b GUI o n p a ge 1 5 . By d e fa u lt ,
PORT 1 is e n a b le d a s a Ma n a ge m e n t p o r t w it h a d e fa u lt IP a n d s u b n e t
m a s k . Se e Fa ct o r y De fa u lt s o n p a ge 1 6 . Fu ll in s t r u ct io n s fo r d is a b lin g t h e
m a n a ge m e n t fu n ct io n a n d h o w t o u s e t h e p o r t a s a n o r m a l d a t a p o r t a r e
p r o v id e d in t h e CLI Re fe r e n ce a n d We b Us e r Gu id e m a n u a ls . Se e a lso
Sw it ch in g MGMT / PORT 1 Mo d e s o n p a ge 1 8 .
Giga b it Et h e r n e t 1 / 1 ( Po r t 1 ) is co n figu r e d b y d e fa u lt t o a ct a s a
m a n a ge m e n t p o r t . Th is is a ch ie v e d b y p la cin g Po r t 1 in Pr iv a t e VLAN 6
16 of 37
DOC IG-3 0 X-V1 .2
