Installation / Owner’s Guide Backup Camera / CAM336...
Page 2
2. You are responsible for ensuring that the installation of this product does not void or affect the vehicle manufacturer’s warranty. VOXX Electronics Corporation or its subsidiaries are not liable in full or in part for improper installation resulting in loss or damage to your property, or for voiding all or part of the vehicle manufacturer’s warranty.

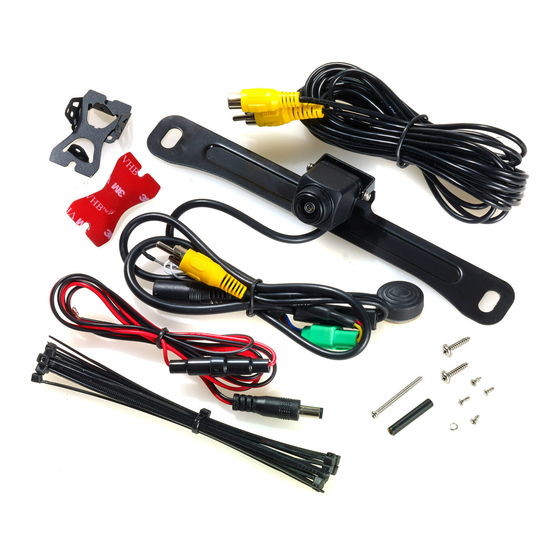

Product Description This camera design integrates a backup camera with your vehicle’s rear license plate without covering the license plate. The camera is easy to mount on your car, truck, or van with the bracket being hidden by your license plate. A universal surface mount is included to assist with other mounting locations.
Installation License Plate Mounting 1. Remove the rear license plate. 2. Examine the vehicle to determine the best way to run the power wires to the reverse lights and the extension cable through the car. 3. The Camera can be mounted above or below the plate. (For surface mounting with the included bracket, see the next section.) Determine the mounting location that best suits your needs.
Page 6
Installation (CONT) 5. Route the camera wiring into the vehicle. The wire can be run through an existing grommet, behind a tail lamp, under the trunk molding, or if necessary, through a 5/8 inch hole drilled near the vehicle’s rear license plate. When choosing a wiring path, make sure the cable will not be damaged or pinched, as this may cause a short circuit that is not covered by the warranty.
Installation (CONT) Surface Mounting Instructions 1. Find a suitable location on the vehicle where the bracket will not interfere with any equipment or doors, or block the line of sight. Verify that the planned mounting location is accessible from behind and that you have access to route the wiring inside the vehicle.
Installation (CONT) Camera Wiring 1. Locate the reverse lamp in the tail light assembly. 2. Using a Digital Multi-Meter, Locate the Reverse Trigger wire. This wire will test Ground (-) at rest and 12-Volt (+) when vehicle is in Reverse gear. 3.
Page 9
Cutting the loop will mirror the image on the horizontal (Left to Right) axis. Parking Line Adjustment The CAM336 back-up camera includes 9 different parking line options. This allows for mounting on multiple different vehicle makes, models and styles. Please follow the instruction below to adjust the camera parking lines.
Specifications Voltage 12-Volts DC 37.4mA +/- 10mA Current System Signal NTSC Image Sensor CMOS Resolution Viewing Angle Min. Illumination .01 LUX Image Display 9 Parking Line Types Camera: 23.2mm x 23.2mm Dimension LP Bracket: 198.5mm x 26.3mm x 1.0mm Operating -40C to 85C Temperature...
3 YEAR LIMITED WARRANTY Applies to Audiovox Series Control Modules and Sensors Voxx Electronics Corporation (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, (other than transmitters) under normal use and conditions, be proven...
