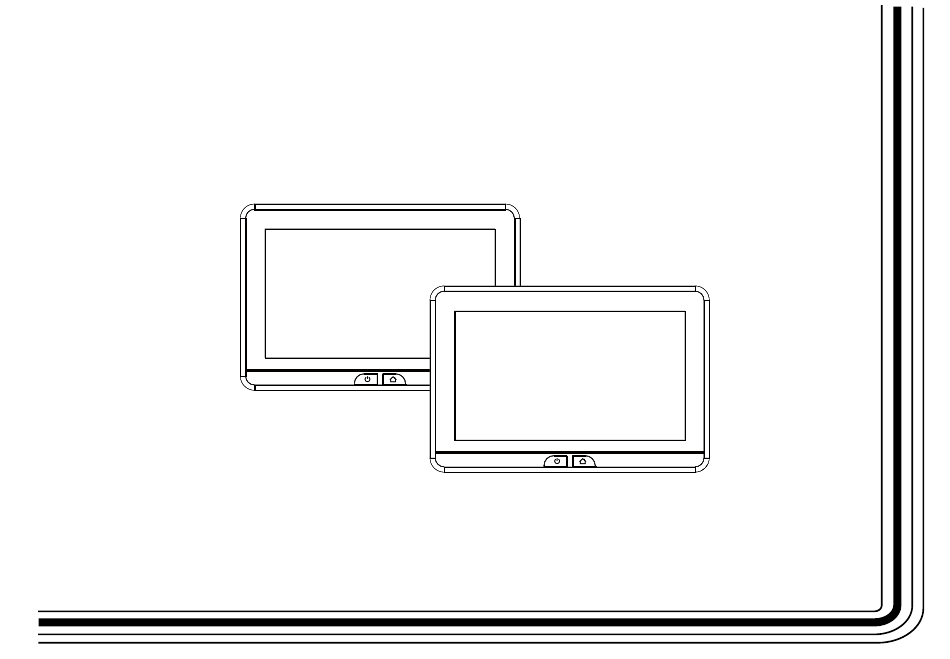

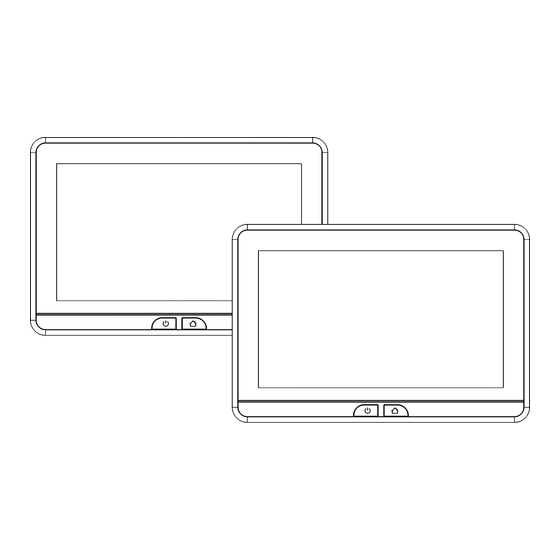

- Page 1 Rear Seat Infortainment System 10.1" IN-CAR SEATBACK MONITOR WITH DVD M/N: SB10MD1 M/N: SB10M1 10.1” IN-CAR SEATBACK MONITOR Owner's Manual...
- Page 3 System adjustments can be accomplished using the voxx control, while seat belts remain fastened. Enjoy your entertainment system but remember the safety of all passengers remains the number one priority.
-
Page 4: Table Of Contents
TABLE OF CONTENTS Description of parts (SB10MD1) ..................................... 5 Description of parts (SB10M1) ......................................6 Getting Started ............................................. 7 Home Main Menu ..........................................8 SmartStream Android ........................................9 SmartStream iOS ..........................................10 USB & SD Card Pla yback ........................................12 WIFI Dual Screen ..........................................13 Dual Screen............................................15... -
Page 5: Description Of Parts (Sb10Md1)
DESCriPTiON OF PArTS (SB10MD1) 1. DVD Disc Eject Button 6. Wired Headphone Jack This button is used for ejecting a disc from the disc compartment. To produce audio signal output using Ø3.5mm plug wire headphone. 2. Power Button 7. Micro SD Card Slot This button is used for to turn the system ON/OFF. -
Page 6: Description Of Parts (Sb10M1)
DESCriPTiON OF PArTS (SB10M1) 1. Power Button 6. Wired Headphone Jack This button is used for to turn the system ON/OFF. To produce audio signal output using Ø3.5mm plug wire headphone. 2. Home Button This button is used for to display the Home Menu Screen. 7. -
Page 7: Getting Started
GETTiNG STArTED Power Button Home Button 1. To start the system, the vehicle ignition key switch must be in ACC or engine ON position. 2. The Power Button and Home Button LED backlight will flashing RED and BLUE when the system is in ignitial position. Upon ignitial completed the Power Button and Home Button LED backlight will turn RED stay in Standby position. -
Page 8: Home Main Menu
HOME MAiN MENU SB10MD1 SB10M1 SCREEN OFF SCREEN OFF HDMI SmartStream SmartStream SETUP SETUP WIFI DUAL SCREEN DUAL SCREEN APPS WIFI DUAL SCREEN DUAL SCREEN APPS... -
Page 9: Smartstream Android
SMArTSTrEAM ANDrOiD 4. Select Mirroring function on your Smartphone. 1. Select the SmartStream icon on the Main Menu. SCREEN OFF SCREEN OFF 5. Your Smartphone will start searching for devices. 6. After searching completed device name will appear on your Smartphone screen and then select the device to for your mirroring function. -
Page 10: Smartstream Ios
Please connect your IOS device using HDMI input. You must connect to SB10M1 monitor and select HDMI as the SCREEN OFF SCREEN OFF source to view HDMI content on this monitor (SB10MD1). ANDROID ANDROID SCREEN OFF SCREEN OFF... - Page 11 SMArTSTrEAM iOS (CONTiNUED) 5. Please use original Apple HDMI Adaptor & HDMI Cable to connect your iOS device to SB10M1 HDMI Input and select HDMI as the video source to play content from your iOS device <Apple HDMI Adapter>HDMI Cable<SB10M1<...
-
Page 12: Usb & Sd Card Playback
USB & SD CArD PLAyBACk USB PLAyBACk SD CArD PLAyBACk 1. Insert a USB device into monitor USB port. 1. Insert a Micro SD Card into the monitor. 2. Select USB source in the Main Menu. 2. Select SD source in the Main Menu. SCREEN OFF SCREEN OFF SCREEN OFF... -
Page 13: Wifi Dual Screen
WiFi DUAL SCrEEN 1. Transmitting monitor select WIFI Dual Screen in the main menu. Receiving monitor select WIFI Dual Screen in the main menu. SCREEN OFF SCREEN OFF SCREEN OFF SCREEN OFF SmartStream SmartStream HDMI SmartStream HDMI SmartStream APPS SETUP APPS SETUP APPS... - Page 14 Available Device SCREEN OFF SCREEN OFF Device Name : SB10M1_83f5 Please Connect Mirroring Function From Your Available Device WiFi DUAL SCrEEN(CONTiNUED) Android Mobile Device Device Name : SB10M1_83f5 Please Connect Mirroring Function From Your 4. Transmitting monitor will search and display the receiving monitor Device Name: on screen. Select the receiving monitor device name on the screen Android Mobile Device and transmittimg monitor will start connecting with the receving monitor.
-
Page 15: Dual Screen
DUAL SCrEEN 1. Select Dual Screen source in the Main Menu to watch the same content playing on the other monitor in CVBS video quality. SCREEN OFF SCREEN OFF SmartStream HDMI SmartStream SETUP SETUP WIFI DUAL SCREEN DUAL SCREEN APPS WIFI DUAL SCREEN DUAL SCREEN APPS... -
Page 16: Wifi Connection
SETUP WIFI DUAL SCREEN DUAL SCREEN 2. Select WIFI and turn ON the WLAN and then touch the WLAN Bar. SCREEN OFF SCREEN OFF Wi-Fi WIFI WLAN VOXX LINK AURICSON_MASTER WFMM iptk1555 IR TRANSMITTER LANGUAGE WKAN_DONG ABOUT DEVICE CMCC-yaKK RESET... -
Page 17: Voxx Link
VOXX LiNk 1. Download and install VOXX LINK APP from Play Store or App Store into your Android or iOS Smartphone.hone. 2. Select SETUP in the MainMenu. 3. Select VOXX LINK. 18:00 SCREEN OFF SCREEN OFF Google Play WIFI VOXX VOXX LINK Kevin_Android_R&D... - Page 18 Secured with WPA/WPA2 You must connect to WiFi first Device Name: SB10MD1_1a44 10. After connected the VOXX LINK to the monitor the Smartphone will mirror what is play on the monitor and this will allow you to full control. 18:00 VOXX...
-
Page 19: Wfmm
FM to the same frequency to start listen to the audio from the SCREEN OFF monitor through your radio speaker out. SCREEN OFF WIFI SCREEN OFF SCREEN OFF VOXX LINK FREQUENCY WIFI WFMM SCREEN OFF SCREEN OFF 88.1MHz 89.1MHz 90.1MHz... -
Page 20: Ir Transmitter
4. Touch this button to select the Channel for the IR Transmitter. 2. Select IR Transmitter inside the SETUP screen. SCREEN OFF SCREEN OFF It is recommended to select Channel A for SB10MD1 and Channel B for SB10M1. WIFI WIFI... -
Page 21: Language
SCREEN OFF HDMI SmartStream APPS SETUP WIFI DUAL SCREEN DUAL SCREEN 2. Select Language inside the SETUP screen. SCREEN OFF WIFI VOXX LINK ENGLISH WFMM SPANISH IR TRANSMITTER FRENCH LANGUAGE ABOUT DEVICE GERMAN RESET 3. Select your prefer language . -
Page 22: About Device & Check For Update
ABOUT DEVICE CHECK FOR UPDATE CHECK FOR UPDATE CHECK FOR UPDATE RESET SCREEN OFF SCREEN OFF SB10M1 new software available for updating SB10MD1 new software available for updating Version: 1.0.1, size: 59MB Version: 1.0.1, size: 59MB Modify list: Modify list:... - Page 23 6. This message will appear on the screen if there no new software for update when you check for update. Which mean the monitor software version is SCREEN OFF SCREEN OFF the latest version. SB10M1 new software available for updating SB10MD1 new software available for updating Version: 1.0.1, size: 59MB Version: 1.0.1, size: 59MB SCREEN OFF SCREEN OFF...
-
Page 24: Reset
APPS SETUP 2. Select RESET inside the SETUP screen, Touch the Factory Setting button and it will start reset to monitor back to Factory Setting mode. SCREEN OFF WIFI VOXX LINK WFMM IR TRANSMITTER LANGUAGE ABOUT DEVICE FACTORY SETTING RESET... -
Page 25: Volume & Brightness Control
VOLUME CONTrOL & BriGHTNESS CONTrOL VOLUME CONTrOL BriGHTNESS CONTrOL 1. Touch the Brightness Button. 1. Touch the Volume Button inside the Info Bar. SCREEN OFF SCREEN OFF SCREEN OFF SCREEN OFF HDMI HDMI SmartStream SmartStream HDMI SmartStream HDMI SmartStream SETUP SETUP WIFI DUAL SCREEN DUAL SCREEN... -
Page 26: Dvd Basics (Sb10Md1)
DVD BASiCS (SB10MD1) To get the optimum use out of the DVD Player, please read the following: DVD region Code The DVD player is preset to a region code at the factory depending on where the DVD player is sold. A DVD from a different region cannot be played in this unit and the unit will display "WRONG REGION”. -
Page 27: General Specification
GENErAL SPECiFiCATiON • 10.1" Capacitive Touch Screen • Resolution: 1024 (RGB) x 600 Display • Pixels: 1,843,200 • Backlight: LED • Operation Voltage: DC11V ~ DC16V • Operation Temperature: 32 ~ 131°F (0 ~ 55°C) General • Storage Temperature: -4 ~ 158°F (-20 ~ 70°C) •... -
Page 28: Compliance Information
COMPLiANCE iNFOrMATiON FCC Notice This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. - Page 29 700066 © 2018 Voxx Electronics Corp.,180 Marcus Blvd Hauppauge, NY 11788...
