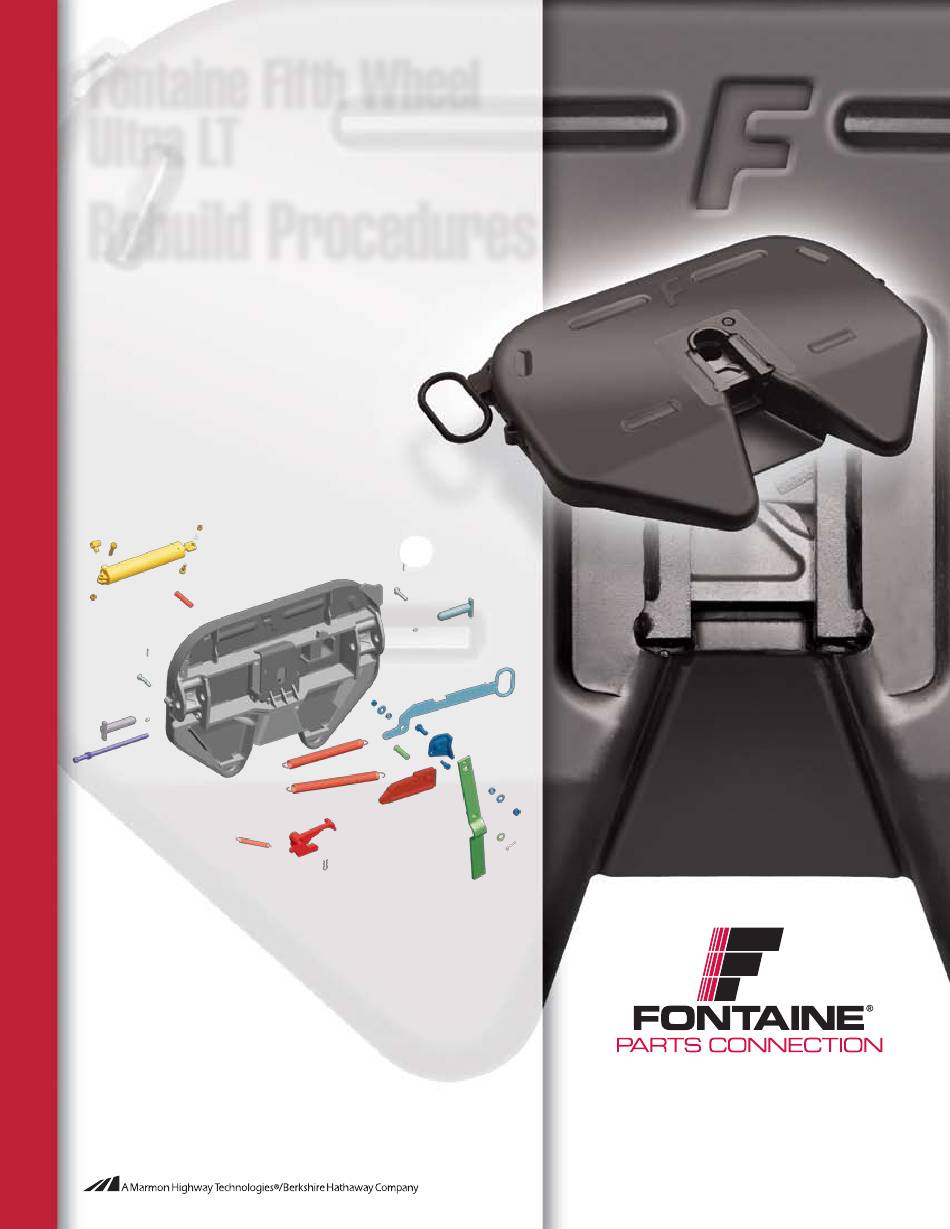

- Page 1 Fontaine Fifth Wheel Ultra LT Rebuild Procedures • Disassembly • Assembly • Adjustments www.fifthwheel.com • 800-874-9780 Fontaine Parts Connection • 7574 Commerce Circle • Trussville, AL 35173 ©2010 • LT-147 January 2010...
- Page 2 Dissassembly Cover plate removed for clarity. Refer to exploded view of assembly on page 6-7 to identify item number and parts. 2. Remove the jaw spring Degrease fifth wheel before installing new parts 1. Set the fifth wheel in the Remove the jaw spring (item 27).
- Page 3 Dissassembly Cover plate removed for clarity. Refer to exploded view of assembly on page 6-7 to identify item number and parts. 6. Remove the pull handle and 5. Remove the operating handle secondary lock. and locking wedge Remove the operating handle (item 31) and locking wedge Remove the 1/2”...
- Page 4 Assembly Refer to exploded view of assembly on page 6-7 to identify item number and parts. 2. Insert the pull handle and Adequate lubrication should be used secondary lock 1. Insert rotating locking jaw Insert the pull handle. After applying a Insert the rotating jaw (item 28) after applying a light coating of light coat of grease to the pivot points, grease.
- Page 5 Assembly Refer to exploded view of assembly on page 6-7 to identify item number and parts. 5. Attach the secondary lock latch to 4. Attach the operating handle to the the operating handle locking wedge Attach the operating handle (item 31) Attach the secondary lock latch (item 21) to the to the locking wedge using a cotter operating handle (item 31) using the 5/8"-11 hex...
- Page 6 Ultra LT rebuild diagram Repair kit (KIT-RPR-ULTL) Secondary lock kit (KIT-SEC-ULTL) Air cylinder kit (KIT-AA-ULTL) Item Description Quantity Item Description Quantity Item Description Quantity Pivot pin, long Lock nut, 1/2"-13 Lock nut, 1/2"-13 Pivot pin, short Washer, 1/2" Exhaust valve Bushing, 5/16"...
- Page 7 April 2007 Ultra LT rebuild diagram key Item Description Quantity Adjustment rod Adjustment rod nut Bracket pin Grease fitting Bracket retainer pin Cotter pin Bracket bushing (not pictured) 2 Pivot pin, long Lock nut, 1/2"-13 Exhaust valve Quick disconnect (not pictured) 1 Hex head bolt, 1/2"-13 x 1.75"...
- Page 8 ©2010 Fontaine Parts Connection • LT-147 January 2010 www.fifthwheel.com All specifications are subject to change without notice.
