Blocking Kit – KIT-BLK-SLD
for Heavy Duty 5092 Series Fifth Wheels
Installation Procedure (Please read all of the instructions before beginning.)
IMPORTANT NOTES:
1.
I. Blocking kits offered for Fontaine's sliding and plate mount fifth wheels MUST be installed by a certified
welder.
II.
WARNING:
Failure to follow these instructions could cause a hazardous condition. Fontaine International is
NOT responsible for improper installation or any welding to this product.
III. The top plate must be removed from the bracket before installing the blocking kit. All surfaces to be welded
must be clean and free of paint and grease.
IV. This blocking kit can ONLY be used on heavy duty 5092 Series Fifth Wheel's with Mounting Heights of 8-3/4"
to 10-3/4".
FIGURE 1

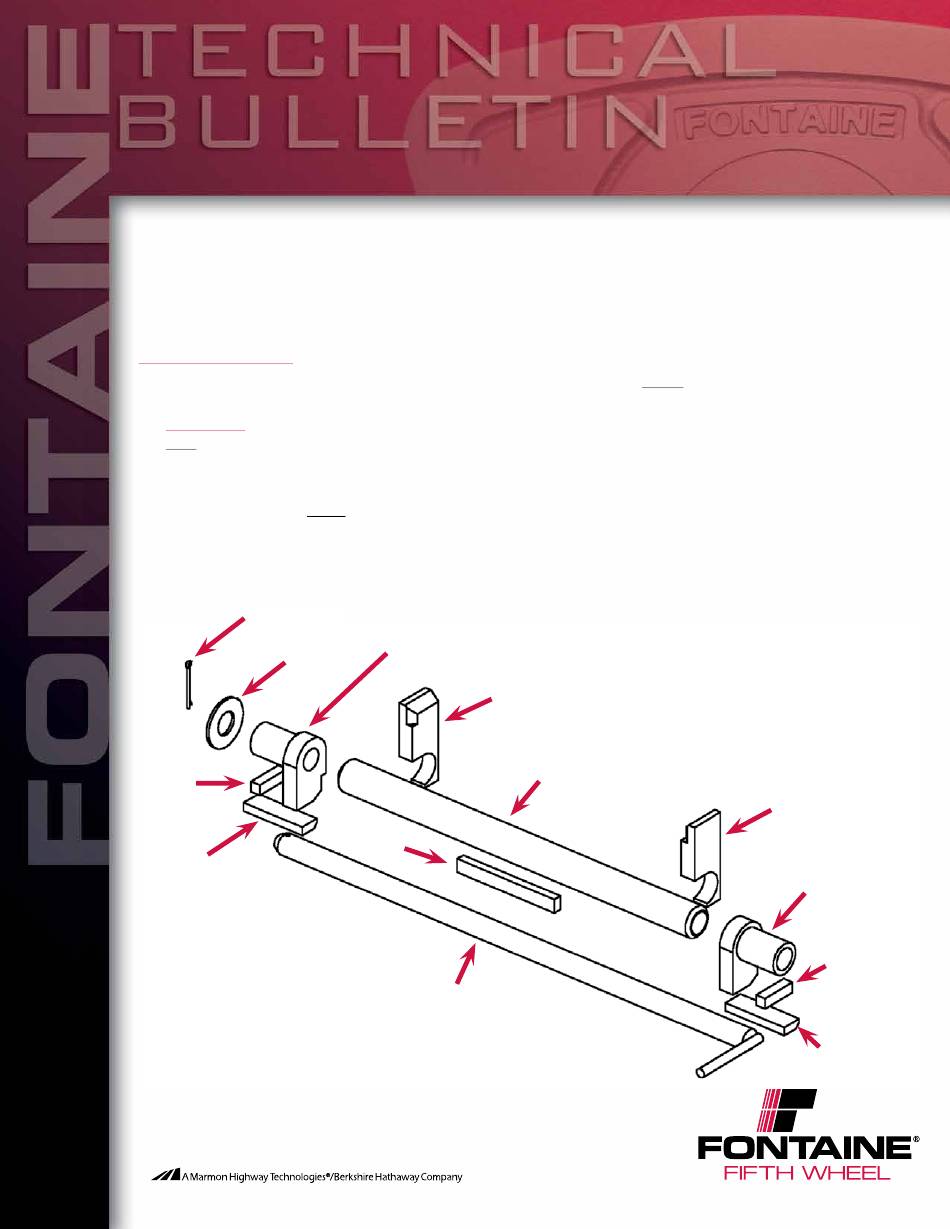

KIT CONTENTS
Cotter Pin
Washer
Bracket
Guide 3/4"
Square Bar
Extension Block
3520 Industrial Way • Jasper, AL 35501 • www.fifthwheel.com • 800-874-9780 • Email: info@fifthwheel.com
Shaft Support
Tube Support
Spacer
Shaft
ISO/TS16949 REGISTERED
TB-030 • February 2003
Spreader Tube
Tube Support
Shaft Support
Bracket
Guide 3/4"
Square Bar
Extension Block
1
