KSOL-2 UNIVERSAL CONSTRUCION WITH MULTIPLE KS2000
Spacing of openings for the assembly of the KSOL-2 universal structure
1a
vb
2a
f
2d
COLLECTORS ASSEMBLY INSTRUCTION.
18
9
1b
2b
3
No
1
Vertical bar
2
Upper horizontal bar
3
Lower horizontal bar
4
Bottom connector
5
Back connector
6
Diagonal connector
7
Base
8
Collector grasper
9
Connector
10
Connector
Insert
11
12
Screw M6x40
13
Nut M6
14
Screw M8x16
15
Screw M8x20
16
Washer Ø8
17
Nut M8
11
10
18
Nut cap
Name
1c
2c
4
Mount
2
1
1
2
2
1
4
6
4
4
10
8
8
24
4
28
28
12
- 1 -
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hewalex KSOL-2
Summary of Contents for Hewalex KSOL-2

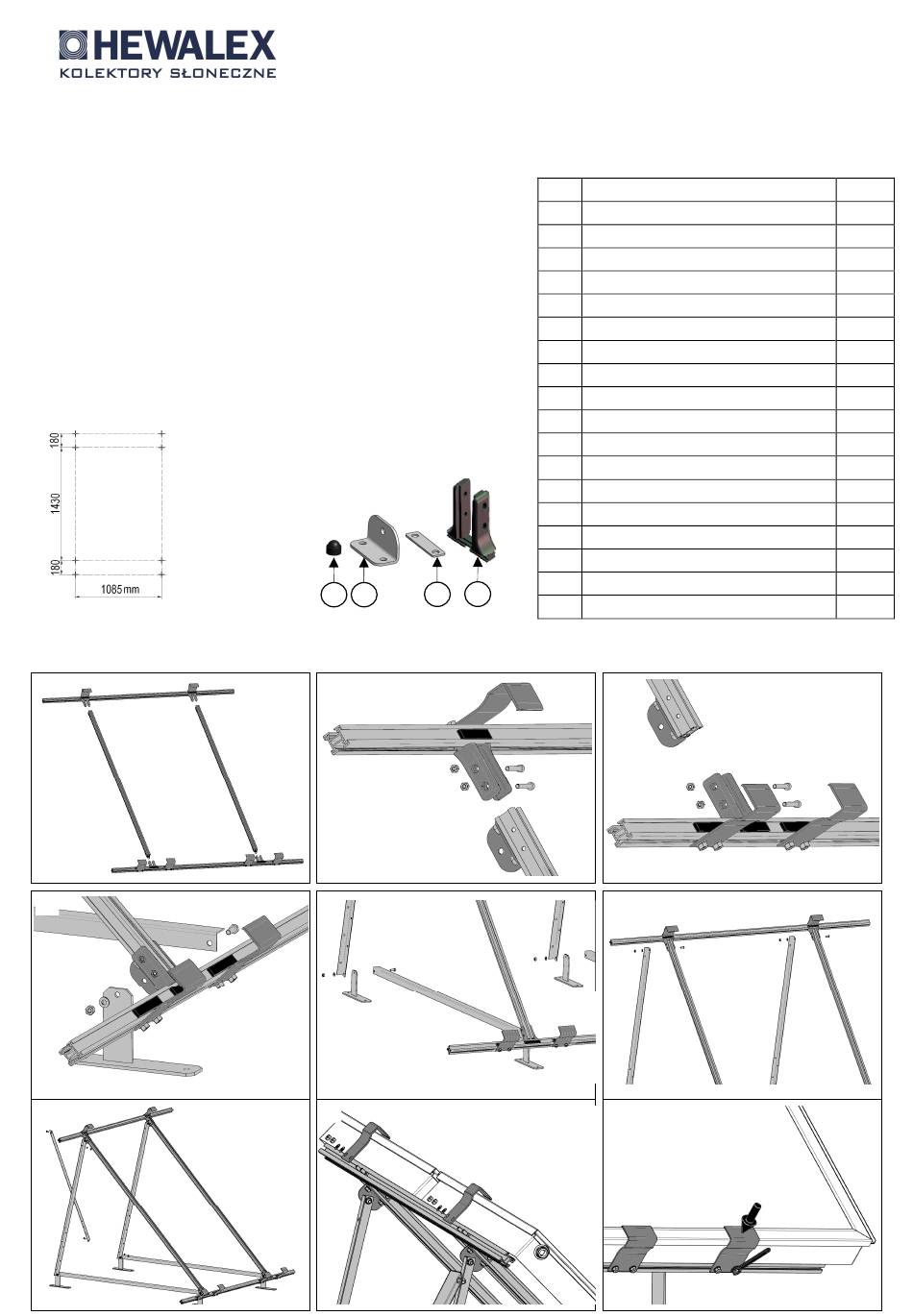

- Page 1 Bottom connector Back connector Diagonal connector Base Collector grasper Connector Connector Insert Screw M6x40 Nut M6 Screw M8x16 Screw M8x20 Washer Ø8 Nut M8 Nut cap Spacing of openings for the assembly of the KSOL-2 universal structure - 1 -...
- Page 2 The KSOL-2 universal structure is used to mount a set of 2 KS2000 collectors. Steps of the assembly: 1. Attach the connectors (10) to the horizontal bars (2, 3). Attach the top horizontal bar (the one with less rubber washers) (2), and the bottom one (3) to the vertical bars (1).
