INSTRUCTION FOR THE MONTAGE OF ROOF FLASHING

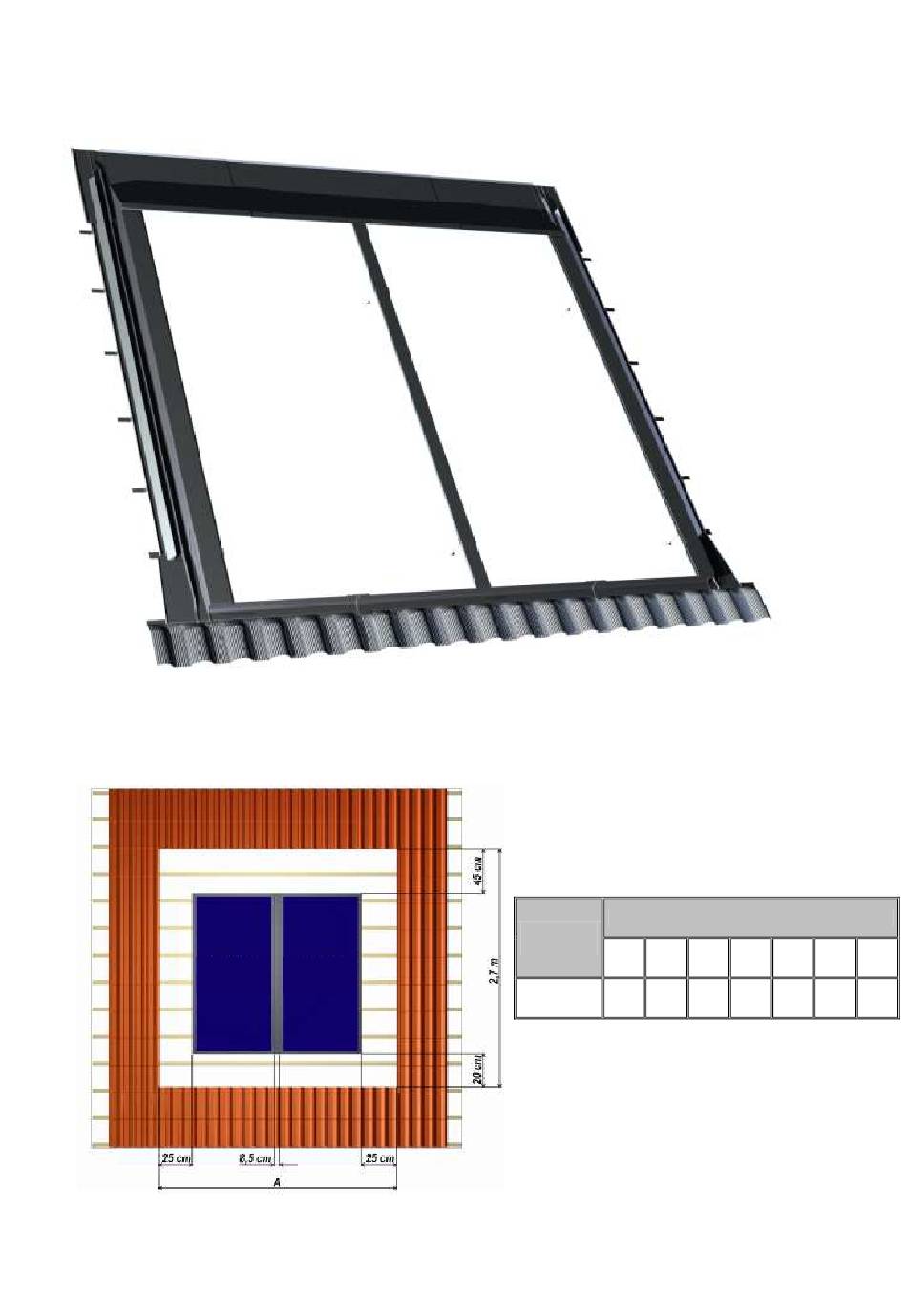

1. Roof area.
Picture and table describe the amount of place needed for mounted collectors and flashings.

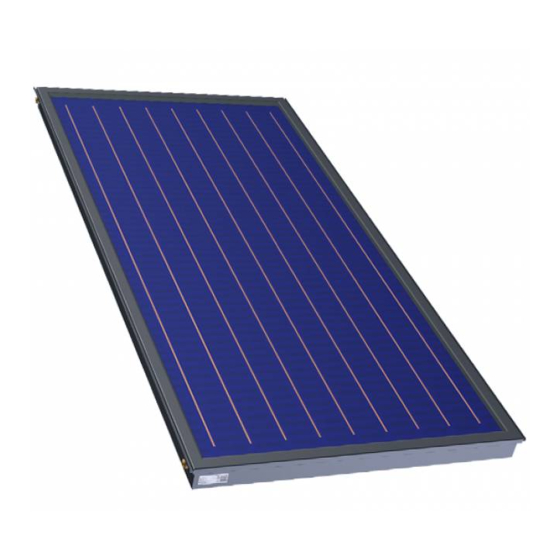

Collector
KS2000
- 1 -
FOR KS2000 COLLECTORS
Collector
KS2000
Number of collectors in a battery
Measurement
[ m ]
2
3
A
2,6
3,7
4
5
6
7
4,8
5,9
7,0
8,1
9,2
8
Advertisement
Table of Contents
Related Manuals for Hewalex KS2000 Series
Summary of Contents for Hewalex KS2000 Series
- Page 1 - 1 - INSTRUCTION FOR THE MONTAGE OF ROOF FLASHING FOR KS2000 COLLECTORS 1. Roof area. Picture and table describe the amount of place needed for mounted collectors and flashings. Number of collectors in a battery Measurement [ m ] Collector Collector KS2000...
- Page 2 - 2 - WARNING Flashing delivered is adjusted to montage of collectors directly on laths and boarding, used for fastening the roof covering (slate, plate, bituminous covering). Noticing the necessity of keeping proper conditions of water flow on the flashing, which decides about its tightness, the delivered flashing must not be mounted on a roof with slope lower than 30.
- Page 3 - 3 - Using the possibility to move graspers along the collector, place them and screw on to chosen laths Collector’s grasper Collector KS2000 Screw for wood 3,625mm Slate lath WARNING Noticing the profitable access after accomplishing points 1-4, we should now mount the armature connected with joining the collectors with the installation (plug, venting, pipe terminal for the installation, temperature gauge for the regulator).
- Page 4 - 4 - 1.1. Fastening of elements no 1, no 2 and no 3. left bottom corner (1) should be placed properly with keeping the distance of 9cm (cross-section B-B), and put from the bottom under collector` s frame, to prevent protruding and falling of the corner mounted, it should be screwed on using screw with a gas- ket to the slat which supports collectors in a place indicated on the cross-section A-A, detach the paper which prevents the sticking substance in the right part of the corner (1) and put the middle element on it (2),...
- Page 5 - 5 - next mount cover between the collectors (8) Element no 8 cross-section "C-C" 4.3 Fastening elements no 9, no 10, no 11. above the collectors, in the distance of 15cm (given on the cross-section D-D), build up additional lath used for supporting upper part of the flashing, delivered inclined board should be leaning on the frame in the middle part of the collector, so that the catch of cantilever can be put in under the frame and after boring holes, fasten using two screws to addi-...
