2.2. Mounting Options:
Wing spring mounting: This is the standard mounting option and can be used on most swipe readers.
The protrusion of the head from the surface of the spring is 3.50 mm.
2.3. Head assembly only: T
his option is provided for special applications.

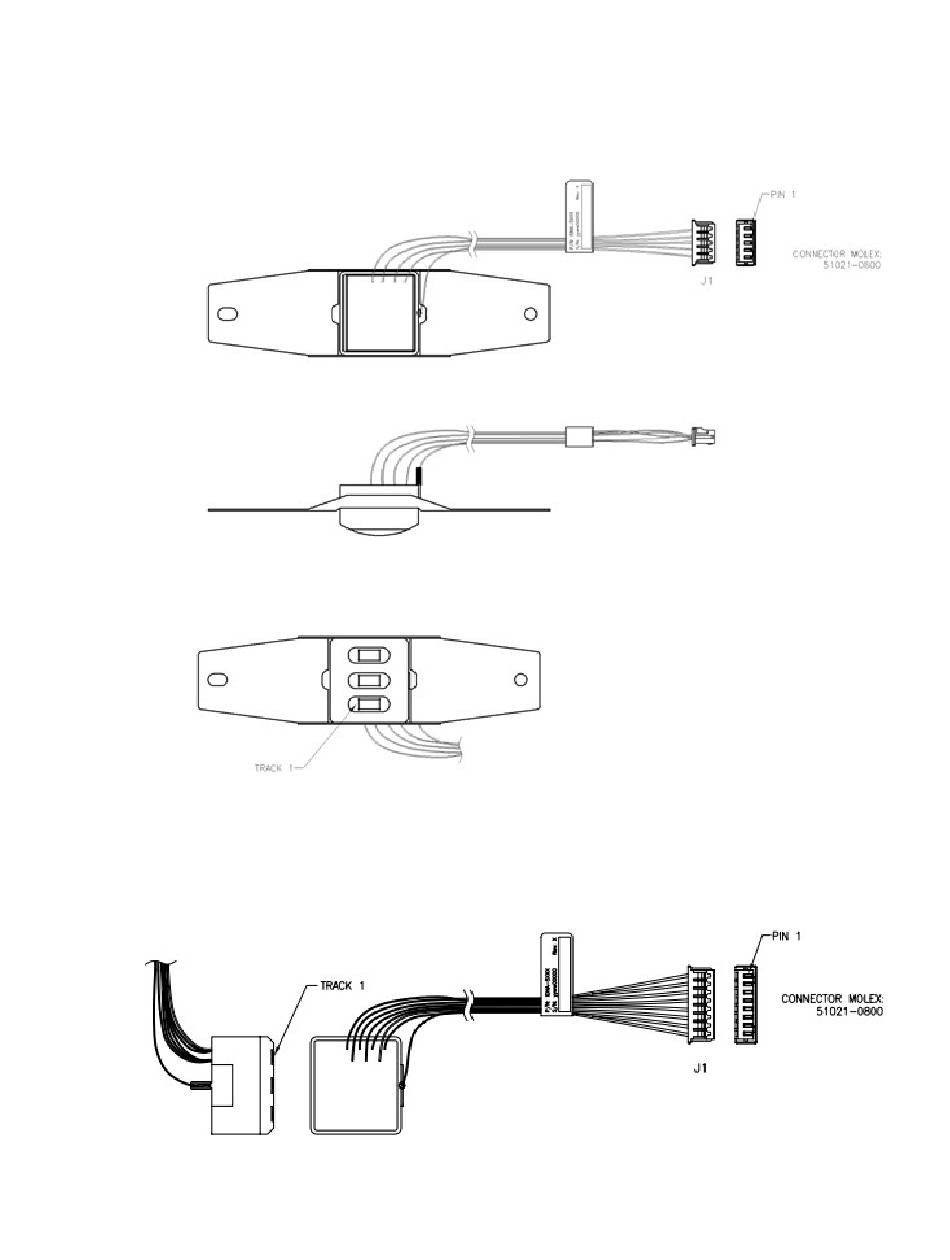

The mechanical interface is an eight-pin male Molex Connector 51021-0800 for option 1 and 2.
ID TECH SecureHead SPI with TMIV User Manual
Page | 9
