Summary of Contents for Hanover Camo 4pc Seating Set

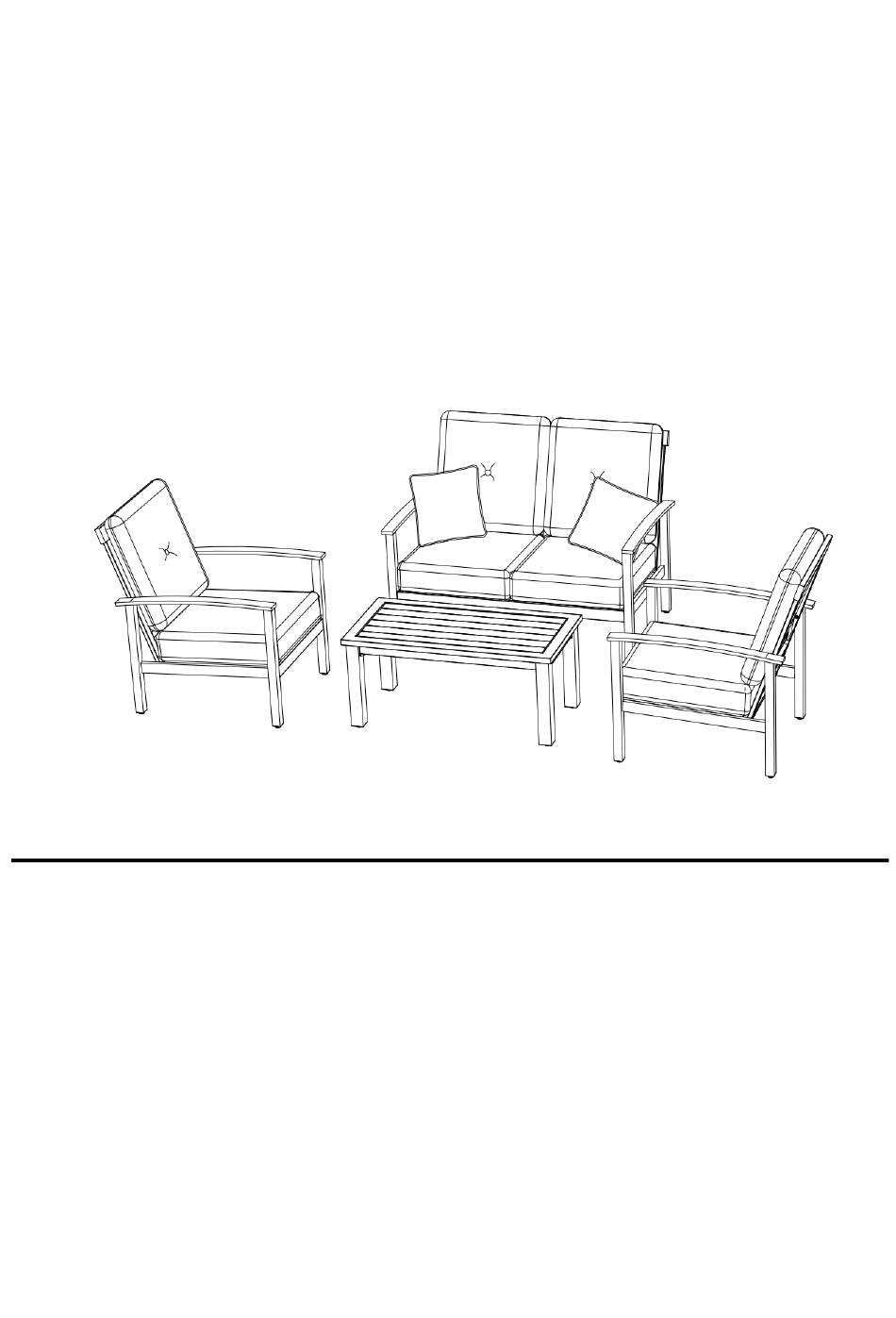

- Page 1 Assembly Instructions FZS10151ST-Camo Camo 4pc Seating Set Questions, problems, or missing parts? Before returning to the store, call Customer Service. 1-866-988-3300 8 a.m. - 5 p.m., PST Monday - Friday Retain this manual for future use.
- Page 2 FZS10151ST-Camo Chair Parts & Tools PART PICTURE & DESCRIPTION PART PICTURE & DESCRIPTION Left Arm M8X40 Bolt M8X55 Bolt Right Arm Allen Wrench Seat Frame Back Frame Back cushion Seat cushion WARNING: To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard.
- Page 3 FZS10151ST-Camo Chair Assembly Step 1: Place the left arm (A) on a soft surface. Line up the bolt holes on seat frame (D). Insert M8x40 bolt (AA). Loosely tighten using the Allen wrench(CC). Step 2: Line up the bolt holes on the seat frame left arm (C).
- Page 4 FZS10151ST-Camo Step 3: Attach the back frame (D) to the right arm(B) and left arm (A). Line up the bolt holes on the back frame (D) and right arm(B), left arm (A). Insert M8x55 bolt (BB). Attach the back frame (D) to the seat frame Line up the bolt holes on the back frame (D)
- Page 5 FZS10151ST-Camo Loveseat Parts & Tools PART PICTURE & DESCRIPTION PART PICTURE & DESCRIPTION Left Arm M8X40 Bolt M8X55 Bolt Right Arm Allen Wrench Seat Frame Back Frame Back cushion Seat cushion WARNING: To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard.
- Page 6 FZS10151ST-Camo Loveseat Assembly Step 1: Place the left arm (H) on a soft surface. Line up the bolt holes on seat frame (J). Insert M8x40 bolt (AA). Loosely tighten using the Allen wrench(CC). Step 2: Line up the bolt holes on the seat frame left arm (H) and back frame(K),Insert...
- Page 7 FZS10151ST-Camo Step 3: Attach the back frame (K) to the right arm(B) and left arm (H). Line up the bolt holes on the back frame (K) and right arm(I), left arm (A). Insert M8x55 bolt (BB). Attach the back frame (K) to the seat frame Line up the bolt holes on the back frame (K)
- Page 8 FZS10151ST-Camo Table Parts & Tools PART PICTURE & DESCRIPTION PART PICTURE & DESCRIPTION Table Top M8*40 Bolt Table Leg WARNING: To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard.
- Page 9 FZS10151ST-Camo Table Assembly Step 1: Place the table top (N) on a soft surface. Line up the holes on the table legs (O) and table top (N). Insert M8x40 bolts (AA). Loosely tighten using Allen wrench (CC). Step 2: ...
- Page 10 FZS10151ST-Camo Outdoor Furniture IMPORTANT If you have any problems with this product (missing or damaged parts, assembly issues, etc.), PLEASE DO NOT RETURN TO THE RETAILER/STORE from where you purchased the product. 1-866-988-3300 Please call our Toll-Free Customer Service Hotline at: Between 8:00 AM and 5:00 PM Pacific Standard Time, Monday through Friday To expedite any future warranty claims, please retain the instruction sheet, warranty card and receipt for future use.
- Page 11 FZS10151ST-Camo Outdoor Furniture 1-Year Limited Warranty Program For a period of one (1) year after date of purchase, the Manufacturer will either repair or replace defective components in accordance with this Limited Warranty. This warranty is between the Manufacturer and the original purchaser and is valid only when accompanied by the original purchaser’s sales receipt showing original date of purchase and location of purchase.
