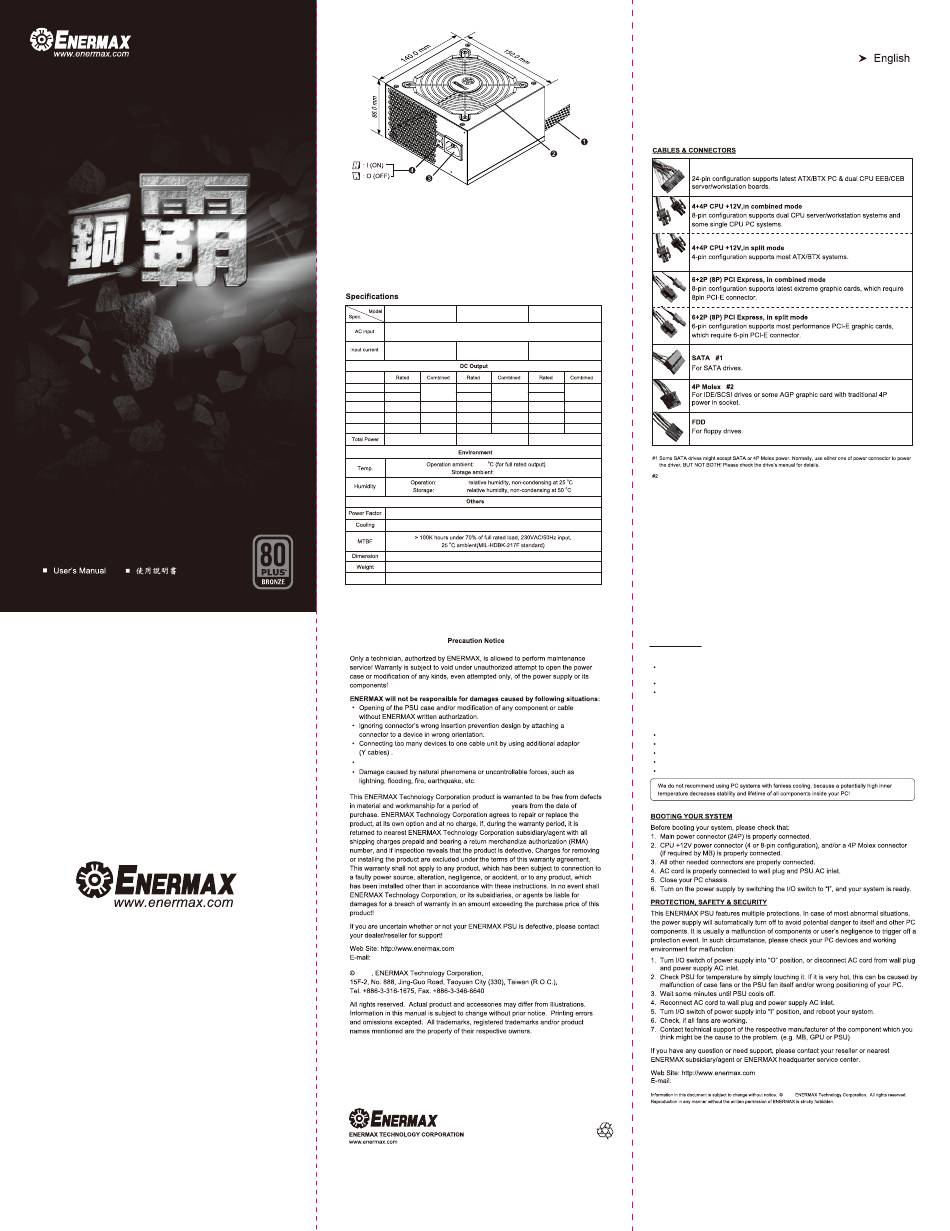

ENERMAX ETP350AWT User Manual

POWER SUPPLY

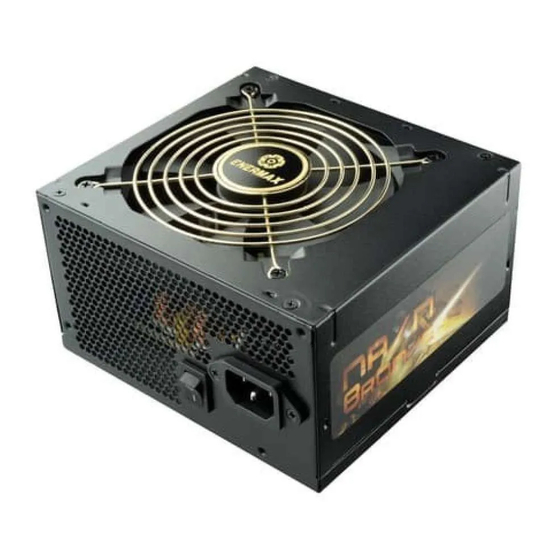

Name of Parts
外觀結構
1. Output cable: Please check "Cables &
1. 輸出線材: 請參閱"線材及連接頭＂說明
Connectors" section
2. 12公分風扇
2. 12cm fan
3. AC交流電插座*
3. AC inlet*
4. I/O 開關*: 電源供應器獨立開關
4. I/O switch*: individual PSU on/off
(I=開, O=關)
switch (I= ON, O=OFF)
*When assemble or maintain the system, please *當您要組裝或維護系統時，請將AC電源線移除，
remove AC cord from AC inlet, or turn I/O switch 或是將I/O開關切換到 "O＂ 位置。
.
into "O" position
ETP350AWT ETP450AWT
115~230VAC, 47-63Hz, Active PFC
5A 7A
+3.3V 16A 17A
90W 100W
+5V 15A 16A
312W 408W
26A 34A
+12V
0.3A 3.6W 0.3A 3.6W
-12V
12.5W 12.5W
+5Vsb 2.5A 2.5A
350W 450W
0~40
-20°C to +70°C
20% to 85%
10% to 95%
> 0.96 at 230Vac input and full load
One 12cm fan, speed auto controlled
150(W)*86(H)*140(D) mm
350W/450W/500W, 1.5 Kg(±50g)
Safty & EMC BSMI
The serial number label or warranty seal is defaced, modified, or removed.
Three (3)
support-tw@enermax.com.tw
2016
Dear customer,
Thank you for choosing this ENERMAX power supply unit (PSU)! Please read this
manual carefully and follow its instructions, before installing the PSU.
24P Mainboard
ETP500AWT
7A
18A
110W
17A
456W
38A
0.3A 3.6W
12.5W
2.5A
500W
If you plan to put in 2 or more high end, power demanding GPU cards, please choose the motherboard that comes
with extra 4P Molex/ 4P FDD / 6P PCI-E power socket(s) on board and connect them with your power supply. This
will prevent the motherboard from overloading and possibly causing damage to your system including your power
supply. The damage to the motherboard and the power supply caused by failing to do the above instruction will not
be covered under Enermax manufacturer's warranty. Please refer to your motherboard's user manual to configure
your system properly to prevent damage to your system and your power supply.
COMPATIBILITY
ENERMAX ETP series is compliant with:
Intel ATX12V Power Supply Design Guide v2.3 specification and downward compatible
with v2.0, v2.01 and v2.2
ATX System Design Guide v2.2, v2.1
BTX/ EEB/ CEB/EPS12V
This PSU does not support MB with ISA expansion slot, which might require –5V power. –5V
has been cancelled from Intel ATX12V v1.3 specification onwards.
To avoid failures and to increase lifetime of your entire PC, we suggest you to make sure that:
Your PC is NOT located near a radiator or any other heat producing device
Your PC is NOT located near a magnetic device
Your PC is NOT located in a moist and/or dusty and/or vibrating environment
Your PC is NOT exposed to direct sunshine
Your PC is sufficiently cooled by additional fans
.
