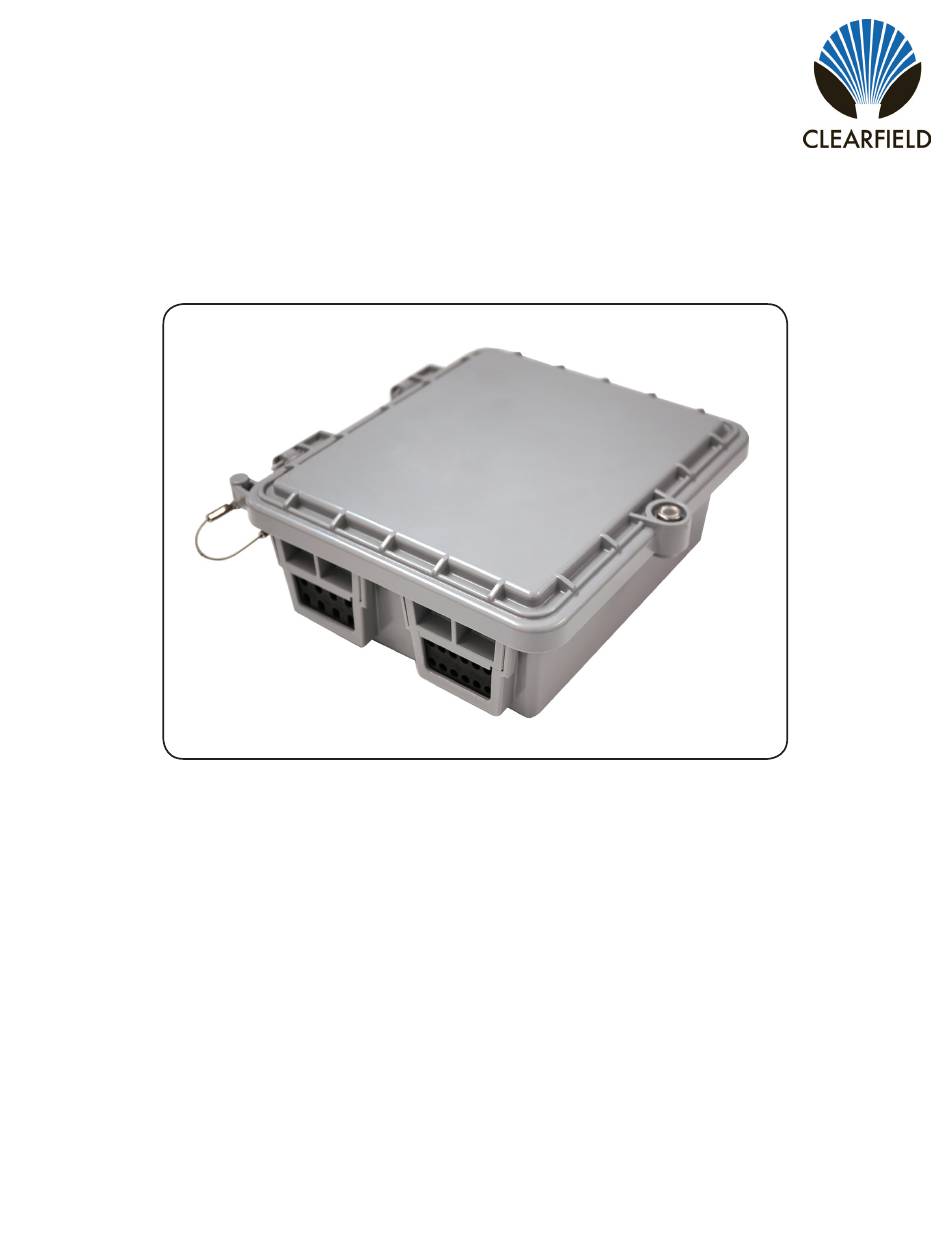

- Page 1 StreetSmart Small Count Fiber Hand-Off Box Installation Manual ______________________________________________________ Manual 021728 REV A - Aug 2020...
-
Page 2: Table Of Contents
StreetSmart Small Count Fiber Hand-Off Box Installation Manual _________________________________________________________ Table of Contents Application Description Technical Specifications Configurations Opening the Box Installing MPO Feeder Cables Installing Drop Cables Mounting Connector Cleaning Procedure Standard Warranty Proprietary Notice Technical Support Direct: 763.476.6866 • National: 800.422.2537 • www.SeeClearfield.com • techsupport@clfd.net... -
Page 3: Application
Installation Manual __________________________________________________________ Application The StreetSmart Small Count Fiber Hand-Off Box serves as a network demarcation point between the backhaul; provid- er to a network operator or as point demarc point for small count MDUs. Designed with a hinged plate and 216 locking mechanism, access is secured between craft responsibilities. -
Page 4: Configurations
StreetSmart Small Count Fiber Hand-Off Box Installation Manual _________________________________________________________ Configurations Blunt/Stubbed HMFOC Tethered MPO Feeder Direct: 763.476.6866 • National: 800.422.2537 • www.SeeClearfield.com • techsupport@clfd.net Manual 021728 REV A - Aug 2020... -
Page 5: Opening The Box
StreetSmart Small Count Fiber Hand-Off Box Installation Manual __________________________________________________________ Opening the Box To open the Small Count Fiber Hand-Off Box and access the top (wireless) compartment, use a standard can wrench or 7/16” socket. The interior swinging bulkhead must also be unlocked using a 7/16”... - Page 6 StreetSmart Small Count Fiber Hand-Off Box Installation Manual _________________________________________________________ Remove the cable retention grommet. Remove the v-clamp from the top of the toothed bracket at the entrance. Cut the cable retention grommet at the locations where cables will be installed.
- Page 7 StreetSmart Small Count Fiber Hand-Off Box Installation Manual __________________________________________________________ Insert the cable retention grommet back into the slot on the wall box. Reinstall the v-clamp, securing it in place with the two screws and allowing the edges of clamp to grab the jacket of the cable(s).
-
Page 8: Installing Drop Cables
StreetSmart Small Count Fiber Hand-Off Box Installation Manual _________________________________________________________ Installing Drop Cables To install cables into the wireless compartment, first remove the cable retention grommet plate. Remove the cable retention grommet. Remove the v-clamp from the top of the toothed bracket at the entrance. - Page 9 StreetSmart Small Count Fiber Hand-Off Box Installation Manual __________________________________________________________ Cut the cable retention grommet at the locations where cables will be installed. Install the cable(s) into the cable retention grommet, slipping them in through the side where you cut the grommet.
-
Page 10: Mounting
StreetSmart Small Count Fiber Hand-Off Box Installation Manual _________________________________________________________ Route the incoming fiber up and around the radius rod. Transition the fiber up onto the top of the swinging bulkhead. Inspect, clean if necessary, and then connect the fiber into the designated adapter. - Page 11 StreetSmart Small Count Fiber Hand-Off Box Installation Manual __________________________________________________________ Installing the Wall/Pole Mount Bracket When installing the mounting bracket onto a wall or a wooden pole, utilize fasteners of your preference to secure the mounting bracket in place with the two holes at the top and bottom center of the bracket.
- Page 12 StreetSmart Small Count Fiber Hand-Off Box Installation Manual _________________________________________________________ Aerial Mounting When mounting the hand-off box aerially, first install the box to the aerial mounting bracket using the 4 screws and sealing washers through the pre-drilled holes in the base of the box. Se-...
-
Page 13: Connector Cleaning Procedure
Inspect Then Connect These are Clearfield recommended products/applications. Use the product you feel will complete your cleaning procedures. Create a “best practice” for your company and follow those procedures. - Page 14 StreetSmart Small Count Fiber Hand-Off Box Installation Manual _________________________________________________________ Cleaning the Ferrule • Lightly moisten the fiber optic swab (2.5mm/38542F or 1.25mm/38040) by spotting a small amount (about 1”) of Electro-Wash PX or Electro-Wash MX pen onto the QbE. Hold the swab, 1 side down to the wetted area and hold for a count of 1-2-3-4-5.
- Page 15 StreetSmart Small Count Fiber Hand-Off Box Installation Manual __________________________________________________________ Cleaning an MPO/MTP Connector Male Connector • Use of Chemtronics MTP Connector Cleaning Swabs (CC505F) is rec- ommended. Even after cleaning with a probe cleaner, you should always clean the pins with this (or an equivalent) type swab. Cleans ALL MTP/ MPO connector end faces.
- Page 16 StreetSmart Small Count Fiber Hand-Off Box Installation Manual _________________________________________________________ • Use the hole on end of pad to clean one alignment pin, then press the end of the swab into the other pin to clean. • Check your work with a fiber scope.
- Page 17 StreetSmart Small Count Fiber Hand-Off Box Installation Manual __________________________________________________________ Cleaning Using a Probe-Style Cleaning Tool • The probe style cleaning tools are capable of cleaning a connector end face separately or through the adapter. • Slightly engage probe by pulling back but do not allow to click. Lightly “spot” a QbE-2 wipe on the platen with Elec- tro-Wash PX Fiber Optic Cleaner, this will help alleviate “over saturation”...
-
Page 18: Standard Warranty
Clearfield shall repair or replace the defective Product at its sole option and discretion, and return the repaired or replacement Product to Cus- tomer’s site, freight prepaid Note: If the Product is not found to be defective by Clearfield, the product will be returned to the Customer and the customer billed for freight in both directions. -
Page 19: Proprietary Notice
__________________________________________________________ Proprietary Notice Information contained in this document is copyrighted by Clearfield, Inc. and may not be duplicated in full or part by any person without prior written approval of Clearfield, Inc. Its purpose is to provide the user with adequately detailed documentation to efficiently install the equipment supplied. Every effort has been made to keep the information contained in this document current and accurate as of the date of publication or revision.
