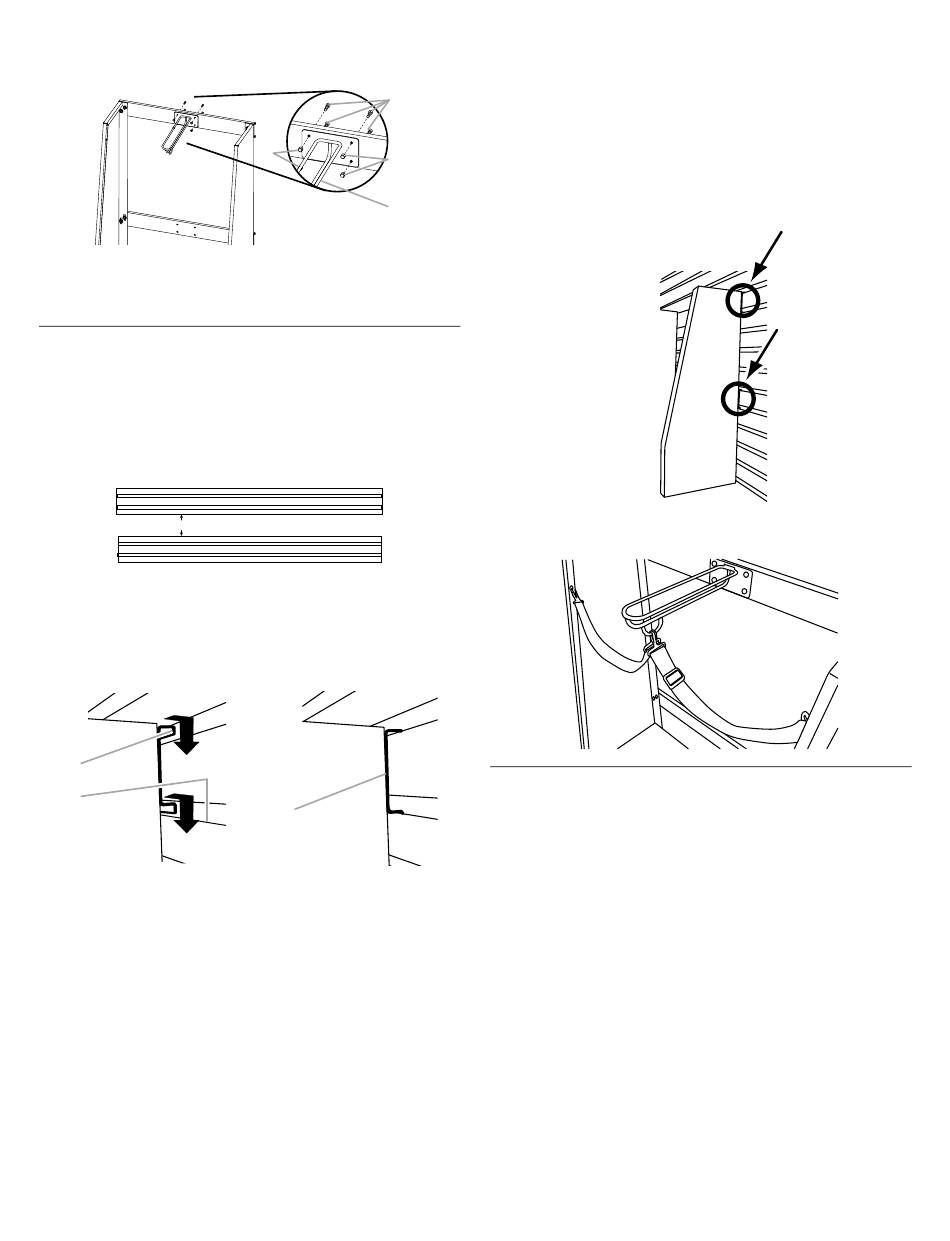

5. Using Phillips-head screws (F3b) and acorn nuts (F10), attach the
golf bag divider to the 4 holes in the center of the upper
mounting bracket.
A. Phillips-head screws (F3b)
B. Acorn nuts (F10)
C. Golf bag divider
Mount the Golf Caddy to the Wall
IMPORTANT:
®
Be sure the Gladiator
GearWall
are installed with mounting screws in every slot and at every stud
location with a maximum of 24" (60.96 cm) horizontally between
screws.
If Gladiator
®
GearTrack
®
channels will be used to mount the golf
caddy, they must be installed 18" (46 cm) apart.
18" (46 cm)
1. Determine caddy mounting location on GearWall
GearTrack
®
channels.
2. Using 2 or more people, engage the upper mounting bracket into
the wall slots by lifting up, pushing toward the wall and lowering
the bracket rims into the slots.
3. Inspect the golf caddy from the side to ensure the upper
mounting bracket rims are fully engaged in the slots as shown.
A
B
A. Bracket rim
B. Slot
A
B
B
C
®
®
panels or GearTrack
channels
®
panel or
C
C. Mounting bracket
fully engaged
4. Grasping the bolts, lift up on the lower mounting bracket to align
the bracket rims with the slots on the GearWall
GearTrack
®
channel.
5. Push the golf caddy toward the wall and lower the lower bracket
rims into the slots.
NOTE: Make sure the lower mounting bracket is fully engaged in
the slots.
6. Using a ¹⁄₂" wrench, tighten the nuts on the lower mounting
bracket.
7. Inspect the golf caddy from the sides to ensure both the upper
and lower mounting brackets are fully engaged in their respective
slots as shown.
8. Attach each strap to the side panel and to the D-ring on the golf
bag divider, as shown.

Warranty

For warranty information:
In the U.S.A. call 1-866-342-4089 or visit our website at
www.GladiatorGW.com
In Canada call 1-800-807-6777 or visit our website at
www.gladiatorgarageworks.ca
®
panel or
