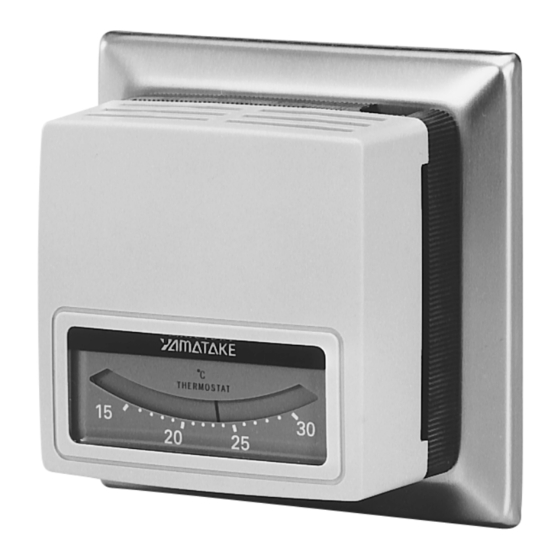

Room Temperature Controller T6065, T9065
Room Humidity Controller H615, H915
Specifications
Control
Model
Provided
T6065A2026
Two-position
T6065B2024
T9065A2020
Proportional
T9065B2028
Model
Control Provided
H615A2036
Two-position
H615B2044
H915A2022
Proportional
Electrical rating:
T6065A, B
125 V AC
Full load
6 A
Locked rotor
36 A
H615A
Dehumidification
125 V AC 250 V AC 125 V AC 250 V AC
Full load
3.0 A
Locked rotor
18.0 A
Resistive load
―
Item
Rated operat-
15 to 40 °C (95 % RH or less)
ing conditions
Transport/
–20 to 50 °C (95 % RH or less)
storage
conditions
Differenitial
T6065A,B : Approx. 1 °C fixed
H615A
: Approx. 5 % RH fixed
Throttling range T9065A,B : Approx. 2 °C fixed
H915A
: Approx. 12 % RH fixed
Element
Temperature controller : Diaphragm
Humidity controller : Nylon ribbon
Neostat
Summer-winter
Range
changeover switch
No
Yes
15 to 30 °C
No
Yes
Range
30 to 80 % RH
50 to 90 % RH
30 to 80 % RH
250 V AC
3 A
18 A
Humidification
1.5 A
4.4 A
2.2 A
9.0 A
26.4 A
13.2 A
8.0 A
4.0 A
―
Specifications
(H615A2036 : at 50 % RH,
H615A2044 : at 65 % RH)
(at 50 % RH)
With baseplate and mounting plate model
Item
Cover
Pale beige (equivalent to Munsell 5Y8/1)
Base
Dark gray (equivalent to Munsell N3.0)
Attachment
Terminal block: 1
●
Mounting screw between body and termi-
●
nal block (M3x8): 1
Tapping screw for mounting terminal block
●
(M2.6x8): 2
Auxiliary
Base plate
(order sepa-
Q6065A1007 ....... T6065A
rately)
Q6065B1005 ....... T6065B
Q9065A1001 ....... T9065A
Q9065B1009 ....... T9065B
Q6150A1003 ....... H615A
Q9150A1007 ....... H915A
Thermo plate for individual room control
QY11A01J1
Thermo plate
DY2000A1003 (One unit, horizontal
mounting)
DY2000A1002 (One unit, vertical mount-
ing)
DY2000A2003 (Two unit, horizontal
mounting)
DY2000A2002 (Two unit, vertical mount-
ing)
Multi-thermo case
TY110A
1
AB-5881
Specifications/Instructions
Specifications
