N A O M I
K I D S

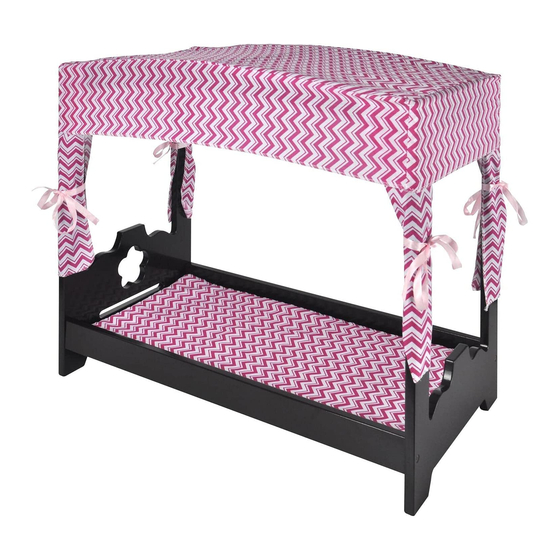

Canopy Doll Bed
Product Dimensions:
22" W x 11.75" D x 20" H
Please take a moment to read through the entire instruction booklet before assembly to
familiarize yourself with this product. Once you feel ready to start, follow the instructions
step by step and this should make this process as easy as we could make it for you.
If you need help or have damaged or missing parts, contact customer service at
www.NaomiHome.com.
© 2016 Naomi Home Inc. - All Rights Reserved.
Page 1 of 8
Advertisement
Table of Contents
Related Manuals for Naomi Kids Canopy Doll Bed
Summary of Contents for Naomi Kids Canopy Doll Bed
- Page 1 N A O M I K I D S Canopy Doll Bed Assembly Instructions Product Dimensions: 22” W x 11.75” D x 20” H Please take a moment to read through the entire instruction booklet before assembly to familiarize yourself with this product. Once you feel ready to start, follow the instructions step by step and this should make this process as easy as we could make it for you.
- Page 2 PARENTAL SUPERVISION IS REQUIRED • This Naomi Kids product is intended for child use age 3+. • Parents or Guardians should supervise use under the intended age specifically regarding children that may have access to it and might climb on the unit.
- Page 3 COMPONENT PARTS Please check that you have all the parts listed below Headboard Bed Rails Canopy Rails Canopy Cross Bar Canopy Canopy Ties Bed Support Footboard Bedding ASSEMBLY HARDWARE Bolt Wood Dowel Pin x 10 x 10 Page 3 of 8...
- Page 4 ASSEMBLY INSTRUCTIONS Select part 2. With the groove side down, insert B wood dowel pin into top holes in part 2. Insert A bolt into head- board 1 and with screwdriver a x part 1 headboard to rail 2, and repeat for 2nd rail.
- Page 5 ASSEMBLY INSTRUCTIONS Select part 4. Insert B wood dowel pin into bottom holes in part 4. Insert A bolt into canopy rail 3 and with screwdriver a x part 4 canopy sup- port to canopy rail Select part 3. Insert B wood dowel pin into top holes in part 3.
- Page 6 ASSEMBLY INSTRUCTIONS Select part 5. With the painted side up, insert 5 bed support into groove of bed rails 2 and slide into place. Select part 6. Insert B wood dowel pin into aligning holes in part 6. Insert A bolt into foot- board 6 and with screwdriver a x...
- Page 7 ASSEMBLY INSTRUCTIONS Select part 7. With the sewn side down, drape canopy over canopy support and rails. Tie canopy to bed posts on head- board and foot- board. Place bed- ding 9 on bed sup- port Page 7 of 8...
- Page 8 ASSEMBLY COMPLETE CONGRATULATIONS, YOUR NAOMI KIDS CANOPY DOLL BED IS COMPLETE! Product Packaging Information Model #: ________________________________ N A O M I Color: __________________________________ K I D S Shipment Ref. #: _________________________ www.NaomiHome.com Date: __________________________________ MADE IN CHINA Page 8 of 8...
