DESCRIPTION
1
INTRODUCTION
For existing hard-wired touch pushplates, most often, only two (2) wires are
installed, running within the wall from the pushplate to the door control for
activation. The 900 MHz Touchless Retrofit Transmitter allows an existing hard-
wired touch pushplate to be retrofitted with a new touchless plate that requires four
(4) wires [2 wires for power and 2 wires for activation] without running additional
wires. This is achieved by use of a powered wireless transmitter and wireless
receiver.
75.5868.01 900 MHZ TOUCHLESS RETROFIT TRANSMITTER 20160412
TOUCHLESS RETROFIT TRANSMITTER

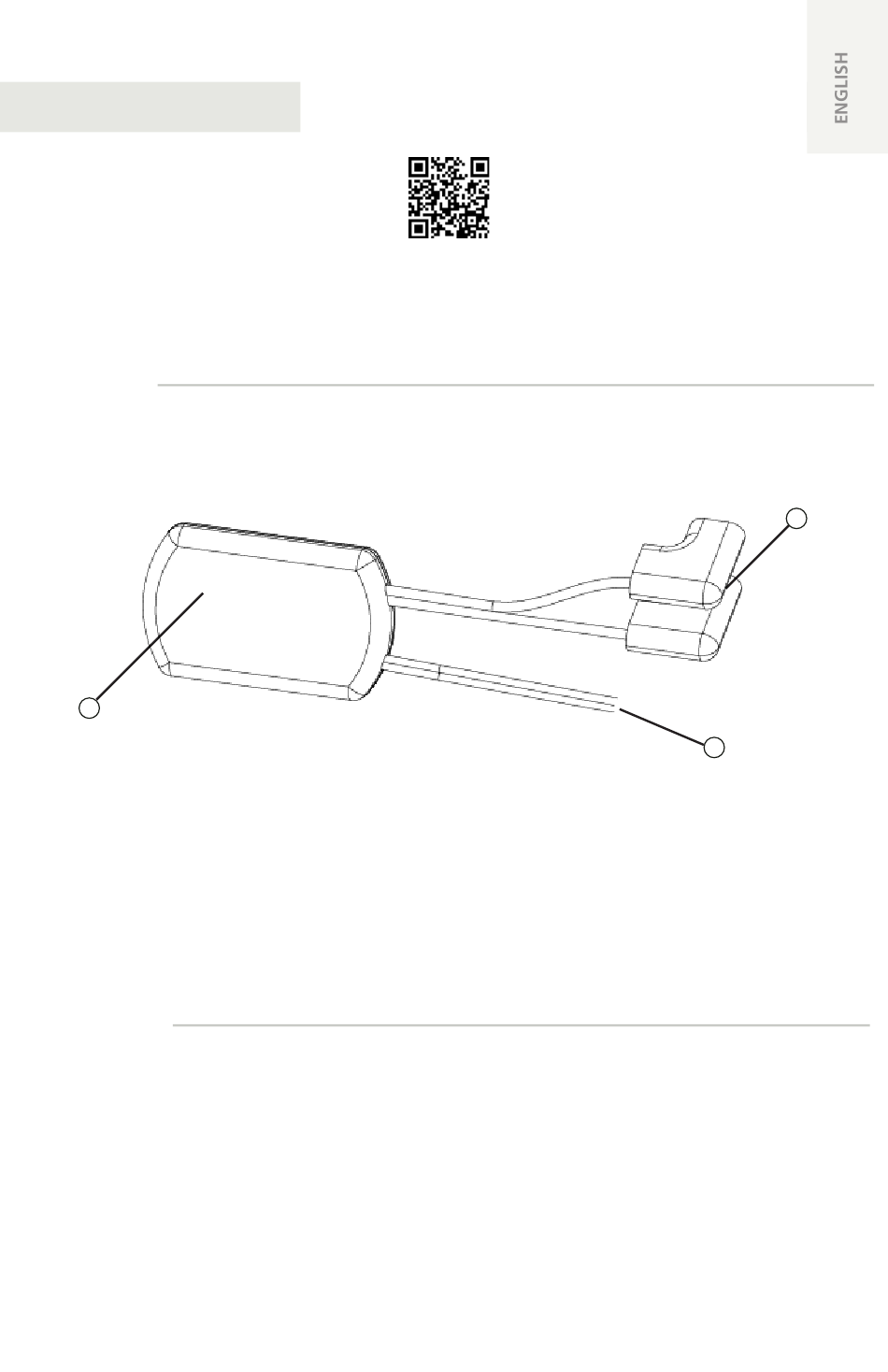

1. 900 MHz Wireless Transmitter
2. White & Green Activation Wires with Flag Connectors
3. Red & Black Power Wires
900 MHz transmitter for
touch-to-touchless plate retrofit
applications
(US version)
2
3
