4 – channel transmitter

Advertisement

The 4-channel radio control transmitter (PN: 10T300HH4) allows independent activation of 4 different radio
PRODUCT
control receivers. The transmitter operates on a 9-volt battery, and at a frequency of 300MHz. All receivers
DESCRIPTION
within the operating system must be of the same 300MHz frequency. Transmitter codes are set by a 10-
position dipswitch.
TECHNICAL
DESCRIPTION
SPECIFICATION
Input Voltage
Operating Frequency
Dimensions (with case)
Code Change Ability
Compliance(s)

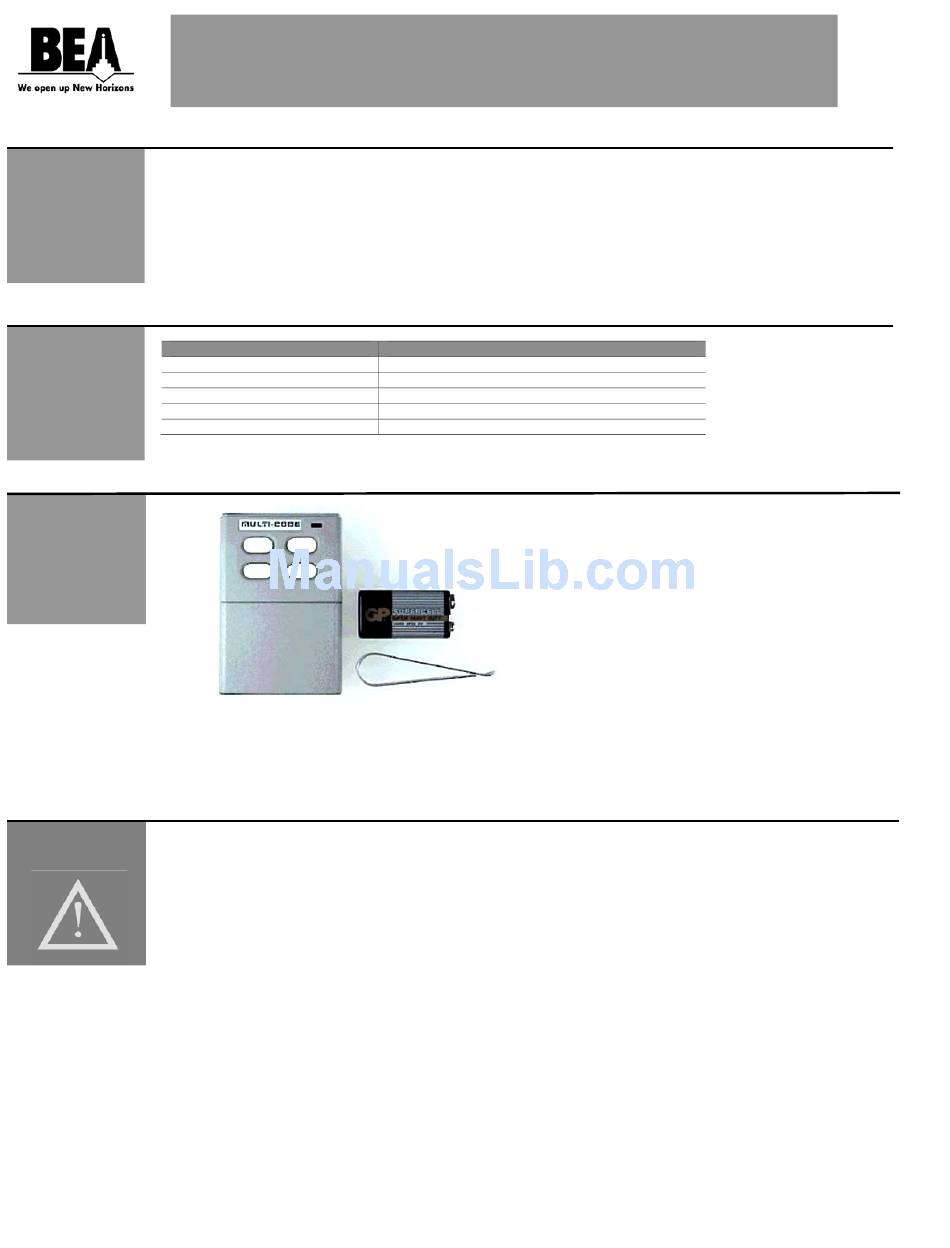

COMPONENT ID
SAFETY
PRECAUTIONS
75.5029 V1 Oct 2005
4 – CHANNEL TRANSMITTER
Shut off all power going to the header before attempting any wiring procedures.
Maintain a clean & safe environment when working in public areas.
Constantly be aware of pedestrian traffic around the door area.
Always stop pedestrian traffic through the doorway when performing tests that may result in unexpected
reactions by the door.
Always check placement of all wiring before powering up to insure that moving door parts will not catch
any wires and cause damage to equipment.
Ensure compliance with all applicable safety standards (i.e. ANSI A156.10) upon completion of
installation.
USERS GUIDE
SPECIFICATION
9 Volt Battery
300 MHz
3 11/16" x 2 3/8" x ¾"
10 Position Dipswitch
FCC ID EF4 NE 02X4 – Part 15
Page 1 of 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 10T300HH4 and is the answer not in the manual?

Questions and answers

Summary of Contents for BEA 10T300HH4

  • Page 1 USERS GUIDE 4 – CHANNEL TRANSMITTER The 4-channel radio control transmitter (PN: 10T300HH4) allows independent activation of 4 different radio PRODUCT control receivers. The transmitter operates on a 9-volt battery, and at a frequency of 300MHz. All receivers DESCRIPTION within the operating system must be of the same 300MHz frequency. Transmitter codes are set by a 10- position dipswitch.
  • Page 2 PROGRAMMING Remove lower access cover from the transmitter housing. Helpful Hint: Use PROCEDURES the enclosed metal clip as a pry tool for this step. Insure that a 9-volt battery is installed and is working. Simply press a button and the red LED should illuminate on the transmitter. There are two sets of dipswitches - both have 10 positions.
