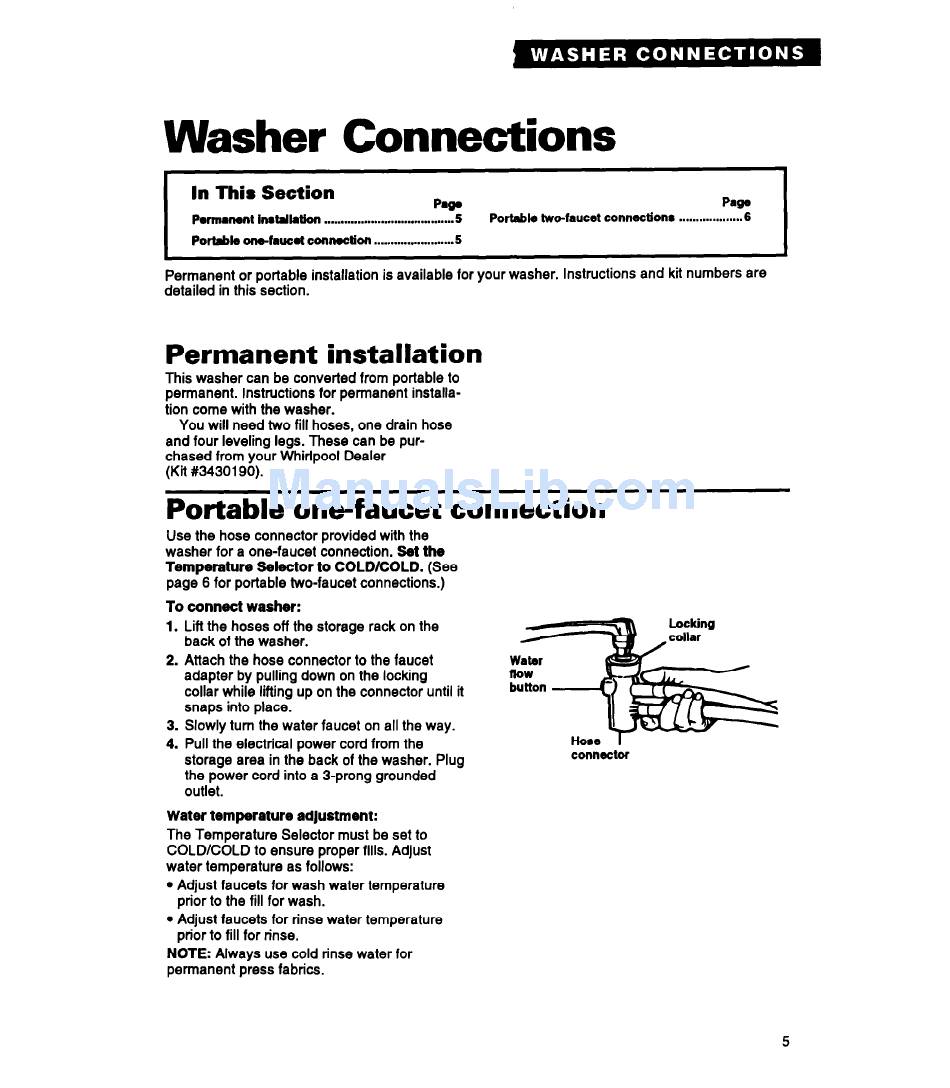

Washer Connections
I
In This Section
Pa!P
Paw
Pemmnent inetdktion
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Port&k two-faucet connectione . . . . . . . . . . . . . . . . . . . 6
Portde olm-fmlcet conMctfon . . . . . . . . . . . . . . . . . . . . . . . . 5
Permanent or portable installation is available for your washer. instructions and kit numbers are
detailed in this section.
Permanent installation
This washer can be converted from portable to
permanent. Instructions for permanent installa-
tion come with the washer.
You will need two fill hoses, one drain hose
and four leveling legs. These can be pur-
chased from your Whirlpool Dealer
(Kit #3430190).
Portable one-faucet connection
Use the hose connector provided with the
washer for a one-faucet connection. Set the
Temperature Selector to COLD/COLD. (See
page 6 for portable two-faucet connections.)
To connect washer:
1.
2.
3.
4.
Lift the hoses off the storage rack on the
back of the washer.
Attach the hose connector to the faucet
adapter by pulling down on the locking
collar while lifting up on the connector until it
snaps into place.
Slowly turn the water faucet on all the way.
Pull the electrical power cord from the
storage area in the back of the washer. Plug
the power cord into a 3-prong grounded
outlet.
connwtor
Water temperature adjustment:
The Temperature Selector must be set to
COLD/COLD to ensure proper fills. Adjust
water temperature as follows:
l
Adjust faucets for wash water temperature
prior to the fill for wash.
l
Adjust faucets for rinse water temperature
prior to fill for rinse.
NOTE: Always use cold rinse water for
permanent press fabrics.
