- Page 1 BEDIENUNG OPERATION UTILISATION Wärmepumpen-Manager | Heat pump manager | Gestionnaire de pompe à chaleur | Quadretto di comando pompa di calore » WPM...
-
Page 2: Table Of Contents
Pass on the instructions to a new user if required. Safety instructions ���������������������������������������������� 17 Test symbols ����������������������������������������������������� 17 Appliance description ������������������������������������� 17 Relevant documents Operation ��������������������������������������������������� 17 WPM commissioning instructions Controls ����������������������������������������������������������� 17 Symbols ����������������������������������������������������������� 19 Safety instructions Entering parameters ������������������������������������������� 19 1.2.1 Structure of safety instructions Selecting operating modes �����������������������������������... -
Page 3: Operation

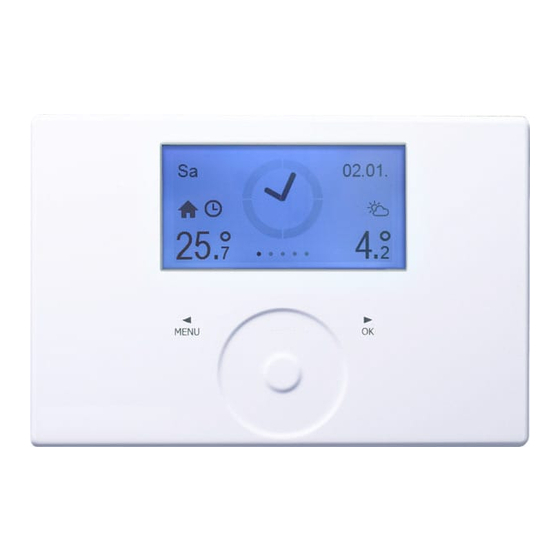

WEDNESDAY 12. APR 17 10:23 TIME Appliance description OUTSIDE TEMPERATURE 27.0 °C The WPM heat pump manager is responsible for the processes ACTUAL WW TEMPERATURE 35.0 °C that control and regulate the heat pump. Using the device, you can 28.0 °C... - Page 4 Alongside navigation within the menu structure, the Touch-Wheel is also used to set parameters. Increase the values with a clockwise motion. Reduce the values with an anti-clockwise motion. | WPM www.stiebel-eltron.com...
-
Page 5: Symbols
Set the year, hours and minutes the same way. Compressor and fan are stopped. The second heat source provides the heating. f Tap MENU to go up one menu level. Note: This operating mode results in higher operating costs. www.stiebel-eltron.com WPM |... -
Page 6: Selecting Operating Modes
Set the comfort temperature for the relevant heating circuit f Set the comfort temperature under SETTINGS / DHW / DHW under SETTINGS / HEATING / HEATING CIRCUIT/COMFORT TEMPERATURES / COMFORT TEMPERATURE. TEMPERATURE. | WPM www.stiebel-eltron.com... -
Page 7: Menu
… DIFFERENTIAL CONTROLLER 1 „ … DIFFERENTIAL CONTROLLER 2 „ … THERMOSTAT FUNCTION 1 „ … THERMOSTAT FUNCTION 2 „ „ „ COMMISSIONING … „ SOURCE … „ HEATING … „ … „ COMPRESSOR … „ SILENT MODE www.stiebel-eltron.com WPM |... -
Page 8: Menu Description
… „ SILENT PROGRAM 1 Confirm the selection with OK. f Use the Touch-Wheel to select the start or end time that you … „ SILENT PROGRAM 2 wish to change. Confirm the selection with OK. | WPM www.stiebel-eltron.com... -
Page 9: Heating Program
Confirm the selection with OK. f Follow the same procedure in HOLIDAYS ENDING. After the period has expired, the heat pump switches to the op- erating mode applicable at the time. www.stiebel-eltron.com WPM |... -
Page 10: Pasteurisation Program
Both of these options can be set by your qualified f Use the Touch-Wheel to set the day, the month, the year or contractor independently of one another. the time. Confirm the selection with OK. | WPM www.stiebel-eltron.com... -
Page 11: Heating
If the WPE heat pump extension is connected, you can Ask your qualified contractor whether cooling is possible with specify separate values for heating circuit 4 and heating your heat pump. circuit 5. Your qualified contractor can set the other parameters for you. www.stiebel-eltron.com WPM |... -
Page 12: Settings
Switching time pair I pair II pair III Use these tables to note down the times you have programmed. Program: Switching time Switching time Switching time pair I pair II pair III Mon-Fri Sat-Sun Mon-Sun Mon-Fri Sat-Sun Mon-Sun | WPM www.stiebel-eltron.com... -
Page 13: Notifications
TIME DATE 30007 08:23 15. APR 17 Care WPM heat pump manager in wall mounted enclosure A damp cloth is all you need to care for the plastic parts. Never Guarantee use abrasive or corrosive cleaning agents. The guarantee conditions of our German companies do not apply to appliances acquired outside of Germany. - Page 14 Deutschland Verkauf Tel. 05531 702-110 | Fax 05531 702-95108 | info-center@stiebel-eltron.de STIEBEL ELTRON GmbH & Co. KG Kundendienst Tel. 05531 702-111 | Fax 05531 702-95890 | kundendienst@stiebel-eltron.de Dr.-Stiebel-Straße 33 | 37603 Holzminden Ersatzteilverkauf Tel. 05531 702-120 | Fax 05531 702-95335 | ersatzteile@stiebel-eltron.de Tel.
