Camera and Electronic Products for Integrators

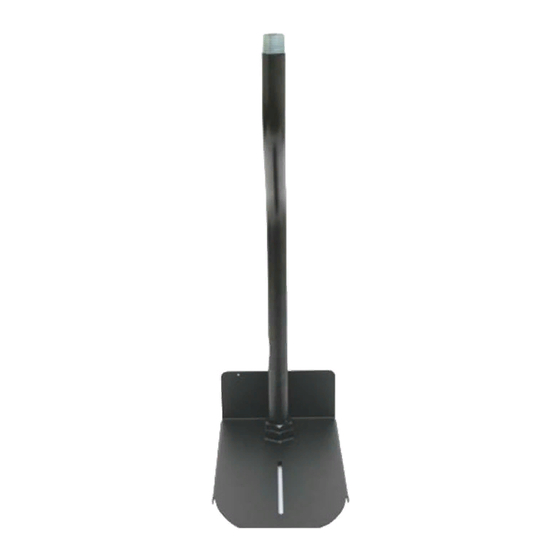

Offset Drop Down Mount for
Large PTZ Cameras
Model # 535-2000-294 (for Sony Cameras)
Model # 535-2000-295 (for Panasonic Camera)

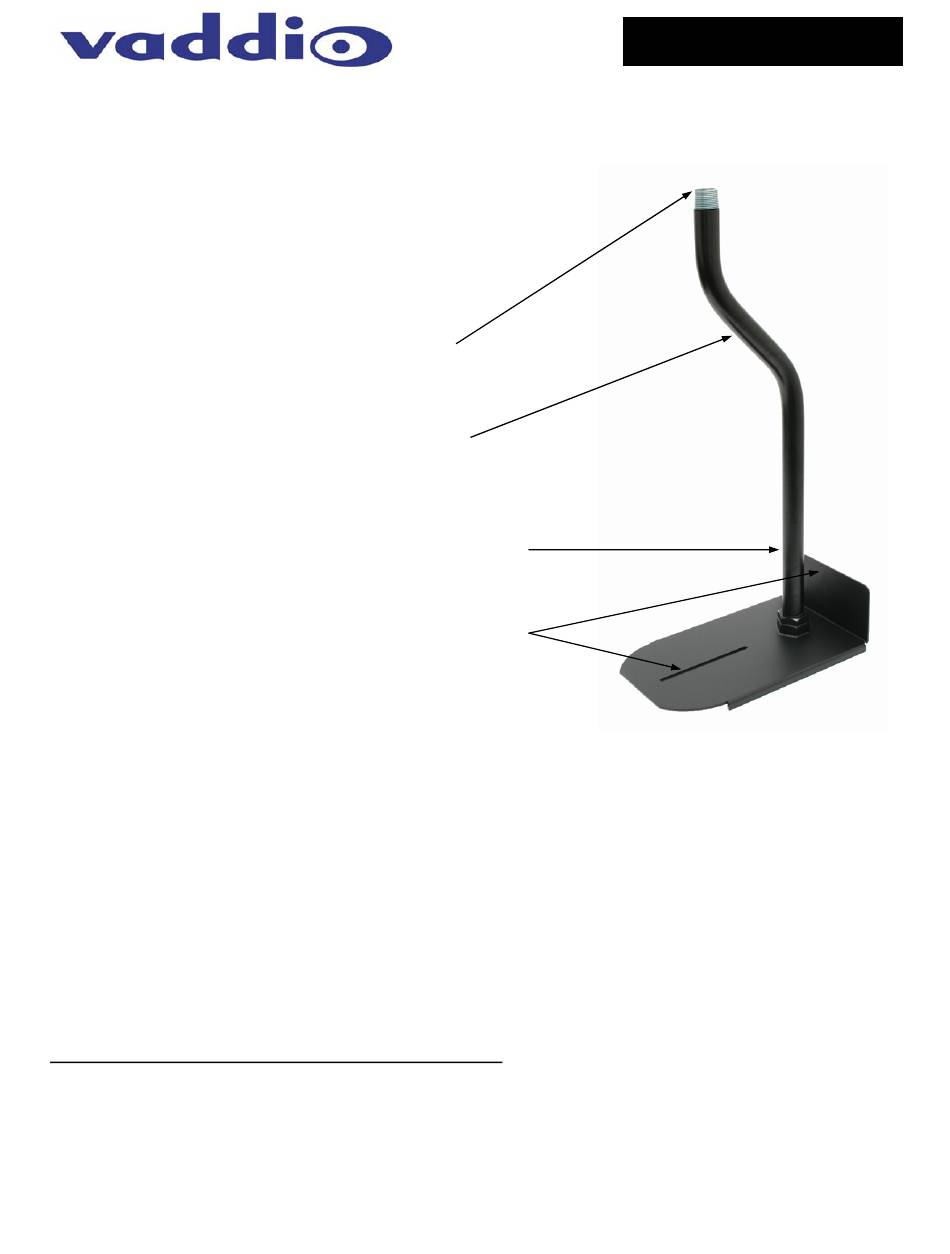

Figure 1:
Offset Drop Down Mount
with features highlighted
NOTE: The Offset Drop Down Mount is intended to be attached
to a third-party manufacturer's (i.e. Peerless®, Chief®, PDR®,
etc.) pipe mounting hardware. If third party hardware includes
1.5" NPT pipe, a 1.5" to 1" reducer will be required to connect to
the Vaddio Offset Camera Mount.
Step 1:
After installing the third-party mounting hardware that the Offset Pipe Mount is to be connected
to, installation of the Vaddio Offset Drop Down mount may proceed.
Step 2:
Tighten the offset pipe onto the third-party pipe mount hardware using a strap wrench to
prevent damaging paint on the offset pipe.
Step 3:
For Vaddio WallVIEW PRO and CCU Installations: Place the EZIM box on the inside of the
back panel of the camera platform, and attach the EZIM with the supplied screws.
Step 4:
Thread the 1.25" - 12 x 7/16" hex jam nut onto the bottom threads of the offset pipe.
©2008 Vaddio - All Rights Reserved Reproduction in whole or in part without written permission is prohibited. Specifications are subject to change
without notice. Vaddio is a registered trademark of Vaddio. All other trademarks are property of their respective owners. Toll Free: 1-800-572-2011,
Main: 763-971-4400, FAX: 763-971-4464. vaddio.com Document Number 341-710 Rev. B
1" NPT Pipe Thread
Heavy gauge steel with
durable black powder
coat finish (paintable to
match any décor)
Cable pass-thru (side of pipe) for
Quick-Connect Cat. 5 cabling
Mounting holes for PTZ cameras
and the WallVIEW EZIM
Installation and User Guide
Advertisement
Table of Contents
Related Manuals for VADDIO 535-2000-294
Summary of Contents for VADDIO 535-2000-294
- Page 1 Thread the 1.25” - 12 x 7/16” hex jam nut onto the bottom threads of the offset pipe. ©2008 Vaddio - All Rights Reserved Reproduction in whole or in part without written permission is prohibited. Specifications are subject to change without notice.
- Page 2 Tighten the jam nut until it is seated against the mounting nut on the camera platform. Using a wrench, tighten the jam nut down onto the camera platform (see Figure 3). Step 7: For Vaddio WallVIEW PRO and CCU Installations: Connect the EZIM Break-out cable to the EZIM. Step 8: Place the camera onto the camera platform and connect all necessary cabling to the back of the camera.
- Page 3 Customer Service, Technical Support, Return Material Authorizations (RMA), Voided Warranty, Shipping and Handling and Products Not Under Warranty. The Vaddio Warranty Statement supercedes all other published warranty statements in content and coverages. Vaddio Technical Support can be contacted through the Vaddio website or through e-mail support at support@vaddio.com.
- Page 4 Offset Drop Down Mount 9433 Science Center Drive ▪ New Hope, MN ▪ 55428 Toll Free: 800-572-2011 ▪ Phone: 763-971-4400 ▪ FAX: 763-971-4464 www.vaddio.com Document Number 341-710 Rev. B Page 4 of 4...
