VADDIO IN-WALL Installation And User Manual

IN-W ™ R
ALL
Recessed Camera Mounting Systems for Vaddio™, Sony®, Polycom®, LifeSize®, Cisco®
PTZ Cameras and Vaddio™ EZCamera™ Cable System Packages

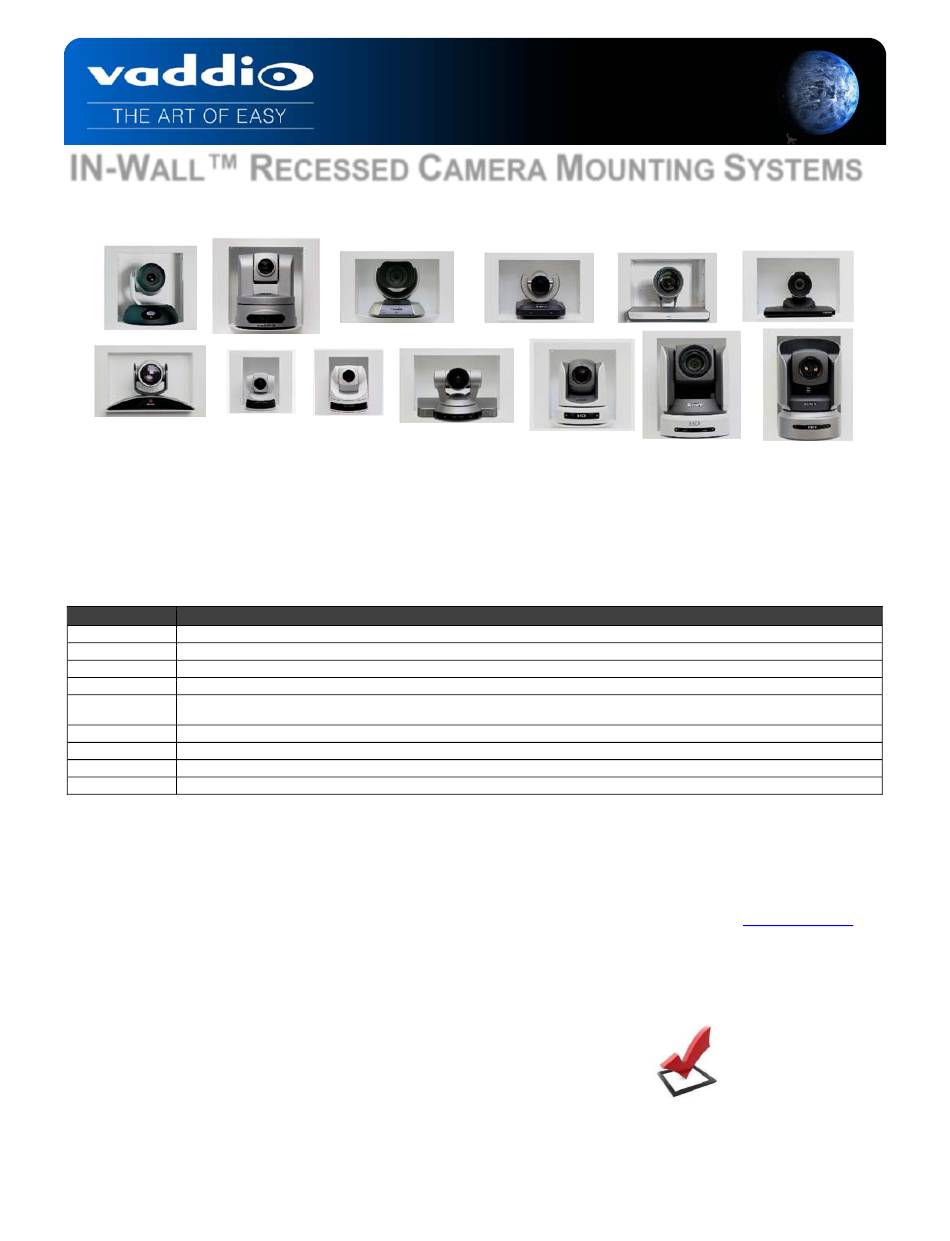

Images: IN-Wall Systems - Top Row (left to right) Vaddio RoboSHOT™ and HD-Series (HD-18/19/20/22/30/USB), LifeSize 10X and 4X, Cisco Precision
60 and PrecisionHD. Bottom Row (left to right): Polycom EagleEye, Sony EVI-D100, EVI-D70, EVI-HD1, BRC-Z330, Sony BRC-Z700 and BRC-H700.

OVERVIEW:

The Vaddio IN-Wall camera mounting systems are an attractive way to mount PTZ cameras on a wall where room aesthetics
are critical. These mounting systems use the depth of the wall cavity to minimize the camera's extension into the room while
providing a finished look to the installation. Each system consists of an in-wall mounting box, camera platform and face frame,
which are powder coated white, but can be painted to match any décor.

IN-Wall Enclosure Supported Cameras and Part Numbers

Part Number Compatible Camera Systems
999-2225-018 Vaddio ClearVIEW™, PowerVIEW™, WallVIEW™ HD Series or RoboSHOT Series Systems
999-2225-012 Vaddio ZoomSHOT and WideSHOT Sony EVI-D70 , Vaddio WallVIEW 70 System
999-2225-014 Sony EVI-HD1, Vaddio WallVIEW CCU or PRO HD1 PTZ System, WallVIEW EagleEye 1080 HD and Polycom EagleEye 1080 HD
999-2225-015 Polycom EagleEye and EagleEye IV, Vaddio WallVIEW PRO EagleEye, Cisco PrecisionHD, Cisco PrecisionHD 1080p and LifeSize 4X
Sony BRC-H700, Vaddio WallVIEW CCU or PRO H700 PTZ System
999-2225-016
Sony BRC-Z700, BRC-H900 Vaddio WallVIEW CCU or PRO Z700 PTZ System
999-2225-011 Sony EVI-D100, Vaddio Model & WallVIEW 100 System
999-2225-019 Sony BRC-Z330, Vaddio WallVIEW CCU or PRO Z330 PTZ System, EVI-D80 EVI-D90, EVI-H100, Vaddio WallVIEW 80 & 90
999-2225-020 Cisco Precision 60
999-2225-220 LifeSize 10X PTZ
Intended Use: Please read the entire manual thoroughly. The IN-Wall Enclosure was designed, built and tested for use indoors
and for a particular camera listed above. Mounting the wrong camera in the IN-Wall may create a potentially unsafe operating
condition.
Save These Instructions: The information contained in this manual will help you install and operate your product. If these
instructions are misplaced, Vaddio keeps copies of Specifications, Installation and User Guides and most pertinent product
drawings for the Vaddio product line on the Vaddio website. These documents can be downloaded from
of charge.

UNPACKING:

Carefully remove the product and all of the parts from the packaging and identify the following parts:
One (1) Back Box Enclosure
One (1) Camera Platform
One (1) Face Frame
One (1) Set Mounting Hardware and Screws

Four (4) 8-32 X ¼" White Pan Head Screws (for Face Frame attachment)

Four (4) 10-32 x ¼" Flat Head Screws (for Camera Platform attachment)

Four (4) Self-Drilling Drywall Anchors

Four #8 x 1.25" Screws for Wall Anchors

One (1) ¼" x 20 Camera Mounting Screw (for those cameras that use ¼" x 20 screws)

Four (4) M3x6mm Camera Mounting Screws for Polycom EagleEye Cameras (non-Sony)
©2014 Vaddio - All Rights Reserved. IN-Wall Enclosures - Document Number 341-744 Rev F
C
ECESSED AMERA
-OR-
Installation and User Guide
M
OUNTING
S
YSTEMS
www.vaddio.com free
Note: Cameras are
not included with the
IN-Wall mounts.
