inforce 6601 Quick Start Manual

PACKAGE CONTENTS
BASE KIT
System On Module (SOM)
Carrier Board
Power Adaptor
Micro USB Cable
19
20
21
22
23
24
25
26
27
28
29
30
31
1
2
3
4
Your use of this document is subject to and governed by those terms and conditions in the Inforce
6601 Development Kit from Inforce ® Computing Inc. ("Agreement"). You may use this document, which shall be considered part of the defined term "Documentation" for purposes of the Agreement, solely in support of your permitted use of the Inforce 6601 Development Kit under the Agreement. Distribution of this document
Inforce ® Computing is a trademark of Inforce
Qualcomm and Snapdragon are trademarks of Qualcomm Incorporated, registered in the United States and other countries, used with permission. Qualcomm Snapdragon is a product of Qualcomm Technologies, Inc.
PERIPHERALS
ACC1H70 Camera Module
ACC1B50 MIPI-DSI display
18 17 15
16
5 7 8 9 10 11
6
® Computing Purchase and Software License Agreement for the APQ8096 based Inforce 6601 Development Kit, which you or the legal entity you represent, as the case may be, accepted and agreed to when purchasing a Inforce
is strictly prohibited without the express written permission of Inforce
® Computing Inc., registered in USA and other countries. Other product and brand names used herein may be trademarks or registered trademarks of their respective owners.
This document contains technical data that may be subject to U.S. and international export, re-export, or transfer ("export") laws. Diversion contrary to U.S. and international law is strictly prohibited.

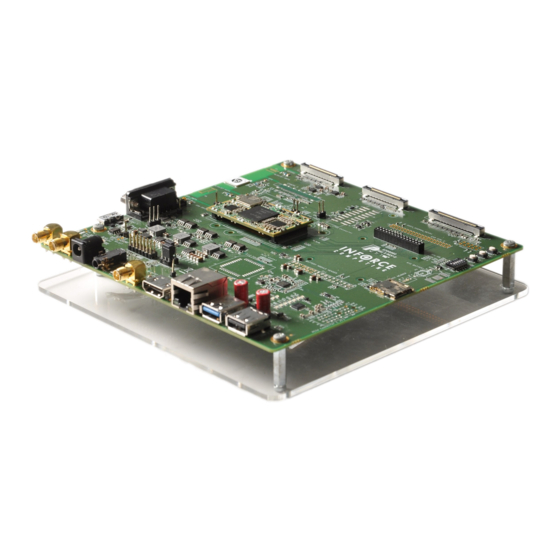

Inforce 6601™ Development Kit
Quick Start Guide

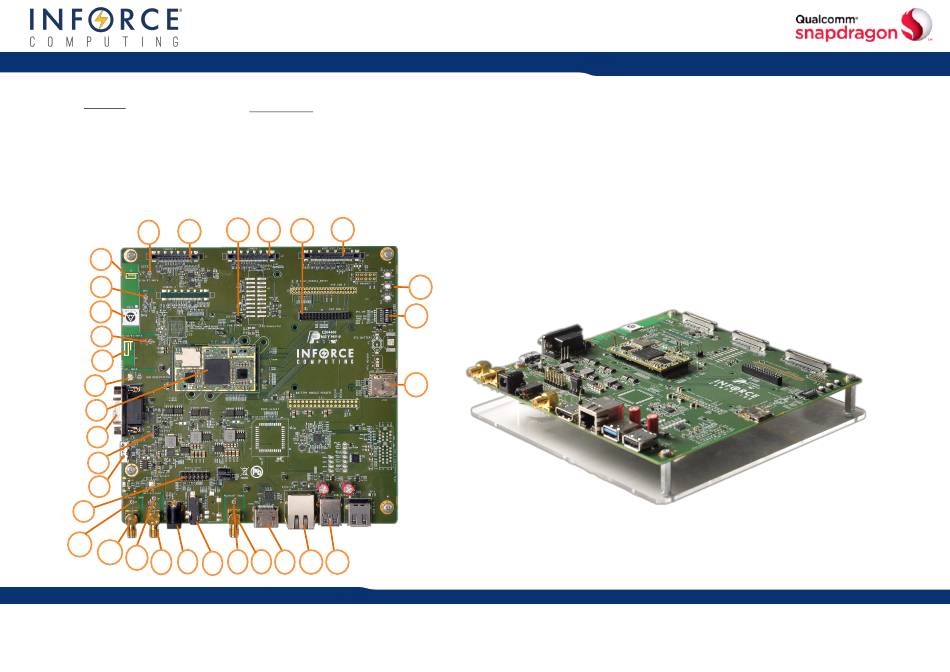

LOCATIONS – Inforce 6601
1 Wi-Fi/BT SMA Connector-MHF4 12 MicroSD Card Slot
2 Wi-Fi/BT SMA Connector 13 Boot Selection Switches
3 GPS SMA Connector-MHF4 14 Power, Vol-, Vol+ Switches
4 GPS SMA Connector 15 DSI Display Connector
5 12V DC Jack 16 Expansion Connector 1
6 Audio combo jack 17 Camera 1 Connector
7 Wi-Fi/BT SMA Connector-MHF4 18 Fan Header
8 Wi-Fi/BT SMA Connector 19 Camera 2 Connector
9 HDMI Type A Connector 20 Wi-Fi/BT PCB Antenna-MHF4
10 RJ45 Ethernet Jack 21 Wi-Fi/BT PCB Antenna
11 USB 3.0 Connector 22 GPS PCB Antenna-MHF4
23 GPS PCB Antenna
14
13
12
®
Computing Inc. and its respective licensors, which they can withhold, condition or delay in its sole discretion.
24 Wi-Fi/BT PCB Antenna-MHF4
25 Wi-Fi/BT PCB Antenna
26 MHF4-UFL Connector
27 Inforce 6601 SOM
28 DB9 Serial port Connector
29 UART Header
30 MicroUSB (HS) Connector
31 Audio Expansion Header
