PORA PR-DTC-3000 Setting Manual

Taper tension controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

TH
T
TH
H
H E
E
QU
Q
QU
U
U A
A
A L
A
T
TR
TR
B
B E
B
E
E S
E
S
S
S T
T
LT
LI
L
IT
I
I
T
TY
Y
AN
AN
A
N
N D
D
R
RU
U
U S
U
S
S T
S
T

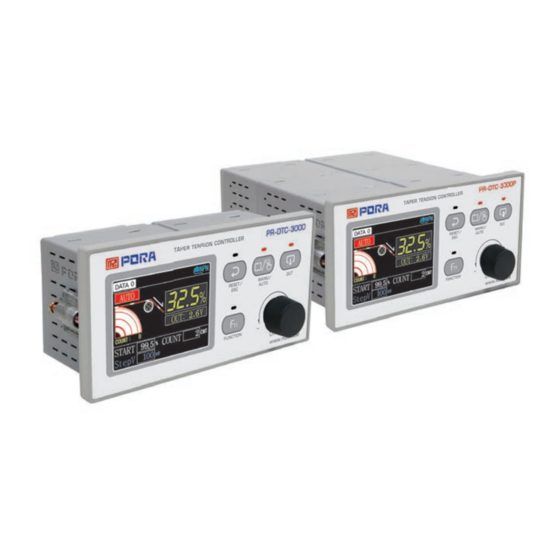

Taper Tension Controller
PR-DTC-3000
PR-DTC-3000P
PORA ELECTRIC MACHINERY CO.,LTD.
www.p o ra .c o m
Setting manual
Rev 2.3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PR-DTC-3000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PORA PR-DTC-3000

Summary of Contents for PORA PR-DTC-3000

  • Page 1 PORA ELECTRIC MACHINERY CO.,LTD. www.p o ra .c o m Setting manual Rev 2.3 Taper Tension Controller PR-DTC-3000 PR-DTC-3000P...

  • Page 3: Table Of Contents

    Taper Tension Controller PR-DTC-3000 제품 이미지 제품 이미지 제품 이미지 제품 이미지 PR-DTC-3000P CONTENTS Feature of the Product and Safety Precautions Installation & Wiring 1. Controller Installation ················· 5 2. Arrangement of the Terminals ············· 6 3. Functions of the Contacts ··············· 7 Chapter 1_ Before Use 1.
  • Page 5 Features of the product and Precautions (Carefully read the following before using the unit) The“PR-DTC-3000 Type”Tension Controller is a semi-automatic tension control device in the voltage controlled OPEN-LOOP method. This method presets the starting voltage and the potential gradient of the controller beforehand, and it calculates current voltage by deducting (Unwinding) or adding (Rewinding) the potential gradient from or to the starting voltage per every revolution of the spindle.
  • Page 6 Precautions for Use - Unwarranted operation of the controller may cause the defects of the object materials. - Pora shall NOT be responsible for any damages to the controller caused by such operations. PORA ELECTRIC MACHINERY CO.,LTD.

  • Page 7: Controller Installation

    The controller can be installed in various methods as below. ② Please Coupled to the bracket and tighten the screws ① Firmly fasten the unit on the panel Install the product in places which guarantee the user’s convenience, management and maintenance. PORA ELECTRIC MACHINERY CO.,LTD.

  • Page 8: Arrangement Of The Terminals

    (And also, the 24V NPN or PNP type sensor) Precaution : Check the sensor connecting terminals Due to the potential risks of malfunctioning and damages to the unit, make sure to check the above terminals and match their respective colors. PORA ELECTRIC MACHINERY CO.,LTD.

  • Page 9: Functions Of The Contacts

    The unit can be seriously damaged by the wrong connection (observe the diagram of load connection) of the power terminal, contacts between the DC input/output wiring and power line, and the short circuit of the output line. Before supplying power, ensure the appropriate connection between power and grounding, and the input/output wiring. PORA ELECTRIC MACHINERY CO.,LTD.

  • Page 10: Control Descriptions

    - Press once (auto/manual mode): It enables setup of the starting voltage and the number of FUNCTION Button revolutions. Whenever it is pressed, the starting voltage and the number of revolutions are activated to configurable state. PORA ELECTRIC MACHINERY CO.,LTD.

  • Page 11: Lcd Display Descriptions

    It shows the starting voltage of output. COUNT It indicates the number of revolutions of the fabric (the axis of rotation) Status Indicator It displays the ‘unwinding’ or ‘rewinding’ condition. MODE It displays ‘auto mode’ or ‘manual mode’ condition. PORA ELECTRIC MACHINERY CO.,LTD.

  • Page 12: Specifications

    (When the output is 50.0 %, 5.0 V is generated.) I_OUT Current The current proportional to the output is generated between 4 and 20 mA. output (When the output is 50.0 %, 12㎃ is generated.) 4. External Connection Diagram PR-DTC-3000 PR-DTC-3000P 22~26Vdc 100~240Vac PORA ELECTRIC MACHINERY CO.,LTD.

  • Page 13: Dimensions

    PR-DTC-3000 Type 5. Dimensions PR-DTC-3000 Cutting Size PR-DTC-3000P Cutting Size PORA ELECTRIC MACHINERY CO.,LTD.

  • Page 14: Basic Set Up

    Press the dial long to enter the setup item, and turn it to change the set value FUNCTION button Press long(manual mode): It enables selection of fabric information (data 0 to 9) Fabric information (DATA 0~9) 32.5 PORA ELECTRIC MACHINERY CO.,LTD.
  • Page 15 2.Number of revolutions : It shows the voltage changing during the set number of revolutions. 3.Variable voltage : Shows for how many revolutions the set variable voltage is applied. Variable voltage ■Voltage algorithm = Number of revolutions PORA ELECTRIC MACHINERY CO.,LTD.
  • Page 16 It is the function which remembers the current condition. The current condition is maintained when the power is suddenly cut off or turned off. 5.Screen brightness : The brightness of the LCD is adjusted. 6.Button sound : Button sound: It sets whether to use the button sound or not. PORA ELECTRIC MACHINERY CO.,LTD.
  • Page 17 - Turn the dial button in setup menu to move to ‘Factory initialization' -To move to ‘ERASE ALL’, press the dial button - Select ‘YES’ in ‘Execute Initialization’ using the DIAL to initialize all set data. PORA ELECTRIC MACHINERY CO.,LTD.

  • Page 18: Simple Use Of The Product

    3. If the data number is required to be changed, press Fn button long to activate DATA, and then change the number by turning the dial. Nullify all activations by pressing Fn button once. If the button is not activated to violet color, there will be no change when the dial is turned. PORA ELECTRIC MACHINERY CO.,LTD.

  • Page 19: Operation Example

    Fn button.(※ The values which can be changed will turn violet. When the work is completed, switch to manual mode and then reset it to the initial value by Completion of the work pressing the RESET button long before starting the work again. PORA ELECTRIC MACHINERY CO.,LTD.

  • Page 20: Operation Details

    Revolution Number Setup below. - The maximum range of the number of revolution which can be set is 999. 3)When the number of revolutions in the basic setup is changed PORA ELECTRIC MACHINERY CO.,LTD.

  • Page 21: Check Up, Trial Run & Adjustment

    4)Automatic Operation - With all power ON Conduct the automatic operation as described on In order to prevent any malfunctioning during operation. However, set up the parameters and select the materials after the machine stops. PORA ELECTRIC MACHINERY CO.,LTD.

  • Page 22: Trouble Shooting

    2) Are any foreign or conductive objects inside the unit? 3) Has any wiring or terminal loosened, or any other trouble occurred? Trouble Phenomenon PR-DTC-3000 Trouble shooting PR-DTC-3000P Trouble shooting * Check whether the power voltage * Check whether the power voltage...
  • Page 23 Terms of Quality Assurance 1.   E verypurchaserofPora'sproductsiseligibleforcomplimentaryafter-salesservicesforanydefectsorerrors thatmayhaveoccurredunderthenormalconditionsofusefortheprescribedperiodoftime. 2.  Pora'sproductsareguaranteedforoneyear(12months)fromthetimeofpurchase. 3.   I fyouwanttohaveyourservicedasperthiscertificate,pleasecontactyournearestdealerorPora'sheadoffice.    P rovided,youareresponsibleforalltheexpensesthatmaybeincurredbysending,bringingortransportingthe producttoyourdealerortous. 4.   Y oumaynotbeeligibleforourcomplimentaryservicesevenwithinthecomplimentaryserviceperiodunderthe followingcases. 1)  Troublesordamagescausedbythemishandlingorincorrectuseoftheproduct. 2)   T roubles or damages caused by the maintenance, modifications or disassembling by any other than our designateddealersorPora'sheadoffice.
  • Page 24 PORA ELECTRIC MACHINERY CO.,LTD. www.p o ra .c o m As to the latest information, please refer to the Website of Pora. 1. The content of this manual may be changed without prior notice, for which we request your kind understanding.
