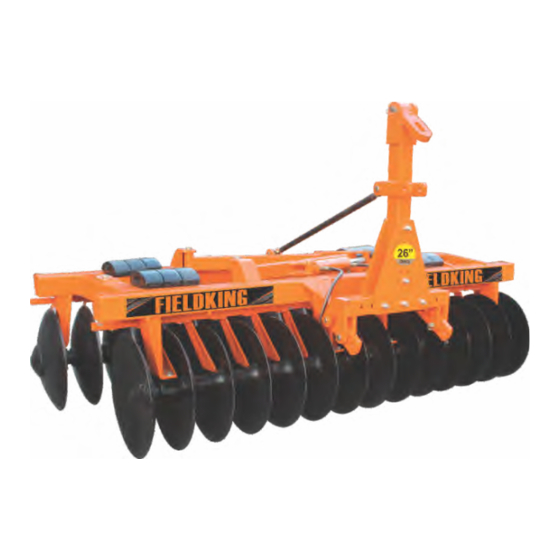

Compact model disc harrow
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Compact Model Disc Harrow
Operator Manual
Part Catalogue
†
†
†
Service Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8x8 and is the answer not in the manual?

Questions and answers

Related Manuals for FIELDKING 8x8

Summary of Contents for FIELDKING 8x8

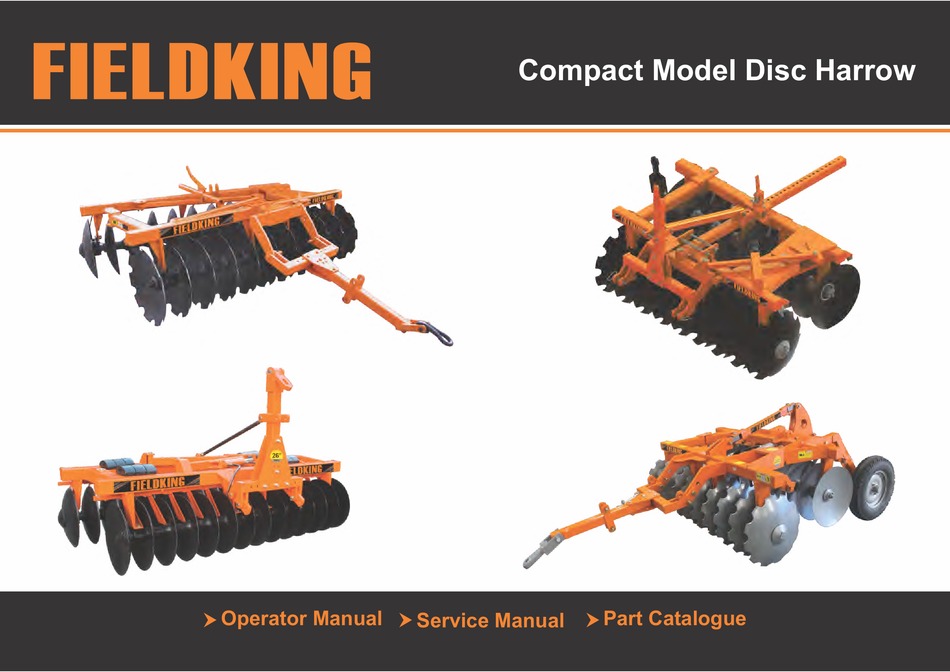

  • Page 1 Compact Model Disc Harrow Operator Manual Part Catalogue † † † Service Manual...
  • Page 2 Keep this manual in a convenient place for quick and easy reference. Study it If your manual is lost or destroyed, “FIELDKING” will be glad to provide you a new carefully. You have purchased a dependable and sturdy compact model disc harrow copy.
  • Page 3 2.1 Before Use & Adjustments 4. Return the equipment or parts to the authorized “FIELDKING” dealer from where 2.2 Attaching Harrow to the tractor it was purchased for service or replacement of defective parts that are covered by 2.3 Warning for driver...

  • Page 4: Technical Data

    1. TECHNICAL DATA 1.4 WARNING Thoroughly read the instruction manual before proceeding with the various 1.1 INTRODUCTION operations. This handbook contains the use and maintenance instructions with a list of the Maintain the harrow as per the instructions of this handbook to be entitled for spare parts of the Disc Harrow.
  • Page 5 Gang angle (Angle between two gangs) ranges from 0° to 50°. The angle can Depth control be increased for better penetration in dry soil while it should be reduced to avoid The depth can be controlled by increasing or decreasing the gang angle of the clogging in wet soil as shown in fig.
  • Page 6 The centre joint assembly frame have two holes for vertical adjustment of drawbar, this assembly is used for better fit in different tractor models. This adjustment also slightly changes the depth of cut. Choose the hole that better fits your tractor drawbar. The upper hole (A) allows a deeper penetration than the lower (B) hole of the centre joint assembly frame.
  • Page 7 Attach the lower right arm; turn the screw until the mounting pin is at the In order to protect yourself always wear adequate same level the hole on the tractor arm. If the gap between the hole and clothes and shoes during the operations. mounting pin is too close or too distant.

  • Page 8: Maintenance

    3. MAINTENANCE 4. OPERATIONAL GUIDELINES FOR HARROW No need to lift the harrow on turning. 3.1 MAINTENANCE INSTRUCTIONS Adjust internal /external check tractor chains to obtain implement swing If you have to work on the stony land then maintenance of the Disc harrow also range within 50 mm (2”) when raised.

  • Page 9: Troubleshooting Chart

    5. TROUBLE SHOOTING CHART POSSIBLE CAUSES POSSIBLE REMIDIES Side Draft Adjust using leveling lever Disc not running level Set the gangs Gangs improperly angled Swing the hitch to the left Too much left hand offset Excessive field slippage Reduce angle, reduce depth Tractor overloaded Add wheel weight or liquid Not enough tractor ballast...
  • Page 10 COMPACT MODEL DISC HARROW (8X8 TO 12X12) PART NO. QTY. SR. NO. DESCRIPTION 10X10 11X11 12X12 10X10 11X11 12X12 COMPACT MODEL FRONT FRAME ASSY. 74090001 74160001 74210001 74130001 76440001 COMPACT MODEL REAR FRAME ASSY. 74100001 74140001 74170001 74220001 76450001 SQUARE BUSH ASSY.
  • Page 12 COMPACT MODEL DISC HARROW (8X8 TO 12X12) HEAVY DUTY PART NO. QTY. DESCRIPTION 10X10 11X11 12X12 10X10 11X11 12X12 COMPACT MODEL FRONT FRAME ASSY. 74160001 74210001 74090001 74130001 76440001 COMPACT MODEL REAR FRAME ASSY. 74100001 74140001 74170001 74220001 76450001 SQUARE BUSH ASSY.
  • Page 15 MEDIUM DUTY COMPACT MODEL DISC HARROW (MANUAL TYPE) PART NO. ITEM NO. PART DESCRIPTION QTY. FRONT FRAME ASSEMBLY 74130010 REAR FRAME ASSEMBLY 74130011 BEARING HUB ASSEMBLY (34MM) 72060002 PLAIN SPOOL (34MM) 10340037 GANG ADJUSTMENT PIPE HOLDER ASSEMBLY 74070007 GANG ADJUSTMENT PIPE ASSY. 74060003 HITCH PIPE ASSEMBLY 74020005...
  • Page 16 COMPACT HARROW WITH AUTO ANGLE ADJUSTMENT PART NO. QTY. Sr. NO PART DESCRIPTION 10X10 10X10 "FRONT FRAME ASSEMBLY" 74130052 74160005 REAR FRAME ASSEMBLY 74140022 74170002 DRAWBAR PIPE ASSEMBLY 74030001 CENTER JOINT ASSEMBLY 74010007 HITCH PIPE ASSEMBLY 74020007 LEVER PIPE ASSEMBLY 74140028 GANG ADJUSTMENT PIPE ASSEMBLY 74050007...

  • Page 17: Delivery Checklist

    5. The customer agrees that it is his Corporate Office : Plot No. 235-236 & 238-240, Sec-3, HSIIDC, responsibility to read and carry out the Comments..................safety, maintenance and operation as per Karnal- 132001 (Haryana), India +91-184-2221571/ 72/ 73 ....................... this operator’s manual......................marketing@fieldking.com, exports@fieldking.com, www.fieldking.com...
  • Page 18 YEAR OF Mfg. SERIAL NO. REGISTRATION NO. DATE OF PURCHASING NAME OF DEALER Customer`s Signature Dealer`s Signature Beri Udyog Pvt. Ltd. 9001:2015 Corporate Office : Plot No. 235-236 & 238-240, Sec-3, HSIIDC, Karnal- 132001 (Haryana), India +91-184-2221571/ 72/ 73 marketing@fieldking.com, exports@fieldking.com, www.fieldking.com...
  • Page 19 YEAR OF Mfg. SERIAL NO. REGISTRATION NO. DATE OF PURCHASING NAME OF DEALER Customer`s Signature Dealer`s Signature Beri Udyog Pvt. Ltd. 9001:2015 Corporate Office : Plot No. 235-236 & 238-240, Sec-3, HSIIDC, Karnal- 132001 (Haryana), India +91-184-2221571/ 72/ 73 marketing@fieldking.com, exports@fieldking.com, www.fieldking.com...

This manual is also suitable for:

9x910x1011x1112x12
