Nexmosphere XPERIENCE XM-350 Quick Start Manual

Xperience platform

All of Nexmosphere's controllers are built on the same platform principles. If this is your first time using a Nexmosphere
controller, we recommend to first read
our platform and its terminology.

XM-350 with SM-100 ShopBus Module

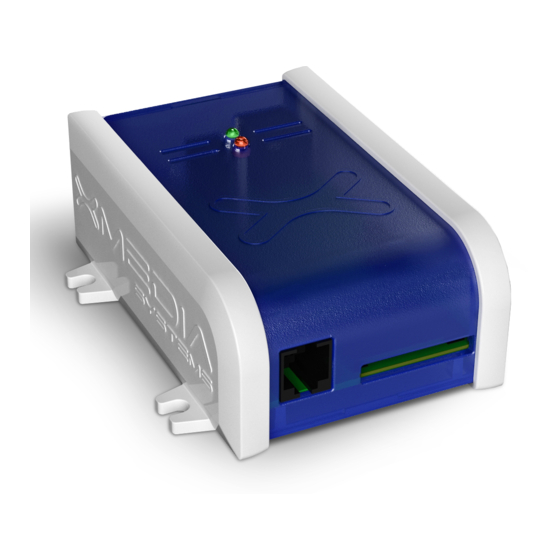

The XM-350 is an Xperience controller with 1 X-talk interface and a ShopBus interface. To the ShopBus interface, up to 8
ShopBus modules can be connected. An SM-100 ShopBus module has 8 X-talk interfaces. The API address of an X-talk
interface is determined by adding the number of the X-talk interface to the base address of the XM or ShopBus module. For
example if a message is sent to X-talk interface 7 of the ShopBus module closest to the XM-controller, the API address of
the X-talk interface is 217.
SM-100
DC
IN
API. API interface (RJ9)
SD. SD card slot for bootloading
LED. Green status LED
ERR. Red error LED

Hardware setup

1. Connect one or more Elements to any of the X-talk interfaces on the XM-350 or SM-100 module(s).
2. Connect a serial cable* to the API interface and to a 3rd party device** (e.g. Digital Signage Player or PC).
3. Connect the SM-100 Module(s) to the XM-350 interface using ShopBus cables.**
4. Connect a 5VDC power supply to the DC power sockets of each SM-100 module.**
5. Connect 5VDC power supplies to the DC power sockets of the XM-350 module.
6. Wait until the green status LED on the XM-350 controller stops blinking. This lasts about 10 seconds.
*Nexmosphere has 2 serial cables available which are compatible with the XM-350: CA-9J9B (RJ9 to 3.5mm jack) and CA-9D9B (RJ9 to DB-9). Next to these
serial cables, a compatible Serial-to-USB cable is also available: CA-9U9B (RJ9 to USB-A). The driver for this cable can be downloaded here.
**Nexmosphere has 2 types of ShopBus cables available which are distinguished by their color: black (CAS-N..B) and red (CAS-N..R). Black ShopBus cables don't
have power feedthrough and are the default choice. Red ShopBus cables do have power feedthrough and can be an option for small, compact setups. When
using Red shopbus cables, the SM-100 module to which the ShopBus cable is connected (IN socket), does not need an additional 5VDC power supply.

Software setup for testing (Terminal)

Typically, the XM-350 controller is connected to a 3rd party device, such as a Digital Signage Player, on which CMS software is installed which has built-in
Functionality for sending and receiving Serial Events. However, if you want to do a first test on a PC or Mac, follow the instructions below:
1. Download a terminal program. For example Termite,
2. Open the Terminal program and go to settings. Choose the COM port to which the XM-350 controller is connected*.
3. Set the COM port settings to the following values
Baudrate
Parity
Data
Stop
4. Set the COM port to "Open". The controller is now ready for use.
5. When sending consecutive API serial commands to the XM-350 controller, place a 50mS delay between each command.
*In case the XM-350 controller is connected via a Serial-to-USB cable or adapter, typically this is the highest available number in the COM port drop-down setting.
N e x m o s p h e r e
H i g h Te c h C a m p u s 1 0 ( M μ b u i l d i n g )
5 6 5 6 A E E i n d h o v e n • T h e N e t h e r l a n d s
https://nexmosphere.com/technology/xperience-platform/
SM-100
DC
OUT IN
DC. 5VDC Power input (2.5mm DC socket)
OUT. ShopBus Interface OUT (RJ25)
IN. ShopBus Interface IN (RJ25)
Hercules
115200
None
Bits 8
Bits 1
T + 3 1 4 0 2 4 0 7 0 7 0
E s u p p o r t @ n e x m o s p h e r e . c o m
XM-350 XPERIENCE CONTROLLER WITH
SM-100
DC
OUT
or SerialTools.
Flow Control None
EOL CR+LF
Protocol ASCII
All content contained herein is subject to change without prior notice.
QUICK START GUIDE
SM-100 SHOPBUS MODULE
to learn the basics about
SM-100
DC
IN OUT IN
OUT
1 DC
LED
ERR
00X
API SD
XM-350
© 2020 Nexmosphere. All rights reserved. v1.0 / 08-20
1
