Summary of Contents for Phoenix Mecano WIENER MTCA.4 1000W PS

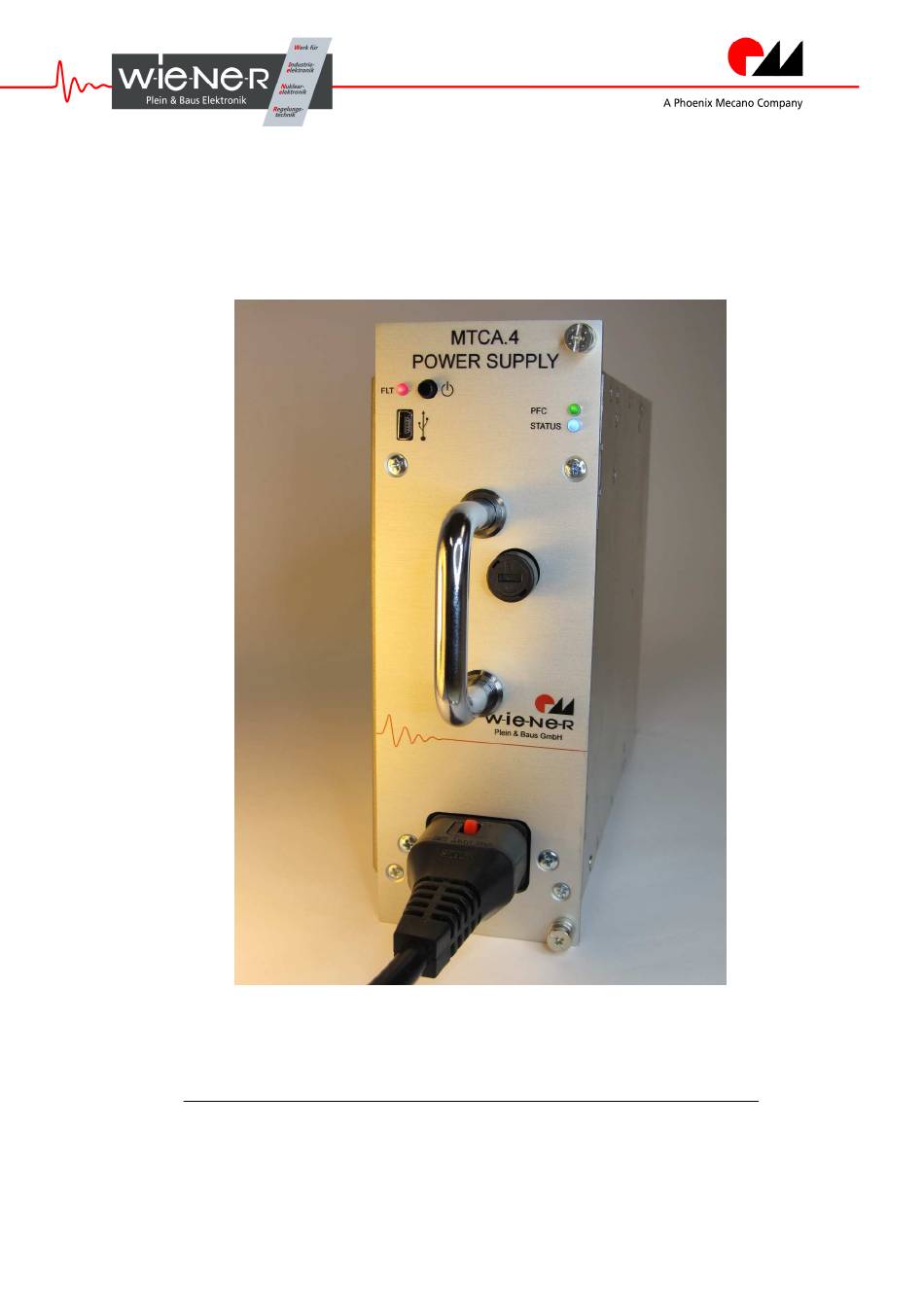

- Page 1 –N MTCA.4 1000W PS 1000W Auto Ranging 90-265 VAC MicroTCA™ Power Supply User’s Manual V1.2 W-IE-NE-R Plein & Baus GmbH www.wiener-d.com Rev. 1.3, April 2, 2015...
- Page 2 General Remarks The only purpose of this manual is a description of the product. It must not be interpreted as a declaration of conformity for this product including the product and software. -R revises this product and manual without notice. Differences between the description in manual and the product are possible.
-
Page 3: Table Of Contents
Table of contents: GENERAL DESCRIPTION ..............4 MAIN FEATURES ................4 TECHNICAL SPECIFICATION ............5 FUNCTIONAL DESCRIPTION ............6 DIGITAL POWER CONTROLLER ..........6 UTILIZATION ..................8 FIRMWARE ..................10 USB™ LABVIEW™ SOFTWARE ............. 11 NATIONAL INSTRUMENTS SOFTWARE ........11 USB™... -
Page 4: General Description
1 General Description MTCA.4 is a low noise and ripple high power density power supply in a double height / double width form factor designed according to the PICMG MTCA-4 standard. It provides continuously up to 1000W for 12V payload power as well as 3.3V management power. MTCA.4 includes the AC mains filter, the low noise AC-to-DC converter in switching technology as well as the digital power controller for up to 16 slots. -
Page 5: Technical Specification
1.2 Technical Specification 12V Payload Power 1000W MTCA.4 Power Supply Input voltage, 47-63 Hz 90V-265V, <16A sinusoidal Output Ripple and Noise: Full load / 80% rated output (0-20 MHz < 4 mVpp / < 2 mVrms Bandwidth) Regulation static: Change of output voltage versus load change 10- <... -
Page 6: Functional Description
2 Functional Description First stage of the MTCA.4 Power Supply is a chambered high performance two-stage AC-mains input filter blocking all differential and common mode EMI from the inside to levels beyond the EN 55 022 - CLASS B. The second stage is a high efficient intelligent PFC with low noise and ripple. - Page 7 3.3 V Outputs (Management Power) Input Voltage Setpoint 3.3 Vdc typical Total Regulation Range 3.16 to 3.63 Vdc Extracted from 12 V Input Voltage Rated Load 1.6A / 6W per Power Adapter 200 mA / 0.7W per Module (clamped by channel controller) SMP (Shared Management Power) Output Voltage 4.5 ..
-
Page 8: Utilization
3 Utilization The W-I -R MTCA.4 is intended for stationary use in MTCA.1 or MTCA.4 crates under normal operating conditions. For more rugged or other implementations please contact the factory. By default the AC mains is fused by a standard 20 mm slow-blow fuse of 10A for input protection of the power supply. - Page 9 The MTCA Crate starts automatically after powering of the W-I -R MTCA.4 power supply. Shortly after the W-I -R MTCA.4 power supply is at mains the PFC needs some seconds to fill the capacitor banks while the green PFC LED shows a short fast blink, see fig 1. When fully operational the PFC LED shows steady green state.
-
Page 10: Firmware
4 Firmware At the time of writing, a standard IPMI Firmware Refresh is only supported via the NatView™ software, http://www.nateurope.com/, which has to be registered to the user by N.A.T. In NatView™ the update/upgrade process is called “HPM Update” and can be invoked by first selecting of the corresponding W-I -R MTCA.4 power supply, called “PM-AC 1000”... -
Page 11: Usb™ Labview™ Software
5 USB™ LabVIEW™ Software Using the LabVIEW™ monitoring or workshop software is another way to get view or access to some intrinsics of the W-I -R MTCA.4 Power Supply Controller. 5.1 National Instruments Software Basically you need the LabVIEW Run-Time Engine 2012 residing on your computer. If not please refer to the corresponding home pages from National Instruments (www.ni.com, the path be e.g. - Page 12 If the USB connection has been found there must be some “MTCA.4 Power Supply” statement under “COM and LPT connections”, with or probably without an exclamation mark. If it has exclamation mark the corresponding driver is just not in your portfolio of W-I -R registered USB drivers.
-
Page 13: Labview™ Program: Mtca.4 Control
5.3 LabVIEW™ Program: MTCA.4 Control This software is available in the W-I -R file server archive (http://file.wiener-d.com/ software/MTCA.4). The MTCA.4 program is simply consisting of following three files: Starting the executable leads to one single LabVIEW Front Panel from which everything can be monitored, see fig. - Page 14 Sometimes if allocation of severe system problems is needed the or a MTCA crate may simply run without a hub for tests the W-I -R Mode can be activated by simply plugging the Run Mode Button within the USB Settings Block. The internal system reboots which needs some time and the USB run LED gets green after some seconds.
-
Page 15: User Interaction And Led Blink Codes
5.4 User Interaction and LED blink codes The user interface of the power supply in the broadest sense consists of some LEDs, the hot-swap button and the main cord jack. The button or the main cord jack for example could be used to change the state of the power supply. -
Page 16: Understanding Trip Philosophies
Table 2: Blink-Codes in W-Ie-Ne-R Mode LEDs Blink code Description blue Power supply switched off. blue Power supply switched on. blue 2 sec on, 0.2 sec off Power supply switched on, at least one channel off (For example because of overload). blue + red 3 times: Power supply starts-up in W-Ie-Ne-R Mode. - Page 17 Additionally the maximum trip current can be defined either to allow for a variable general lower power limit per slot as which can be delivered by the power supply, e.g. by 7,6 A for 80 W as it is defined within the MTCA.4 specification. To change those reference values from the defaults the MTCA.4 Control Software has to be invoked from a console with the additional command line parameter: “MTCA.exe -- /mode “.
-
Page 18: Crate Off Function
5.6 Crate Off Function The W-I -R MTCA.4 power supply Hot Swap Button by default intends to switch off the whole crate if or “even if” this power supply is working lonely as a primary power supply without any other redundant power supplies situated in the crate or with those but which would not be able to take over the crate supply promptly (Power Good States of redundant supplies are OFF). -
Page 19: Backup & Restore
5.7 Backup & Restore The W-I -R MTCA Power Supply as is full of highly sophisticated firmware with a bundle of hardware and software settings. Hence it is wise to make a backup of those settings when the user made changes to the defaults as described in this chapter and is finally convinced of these settings to work properly in his setup.
