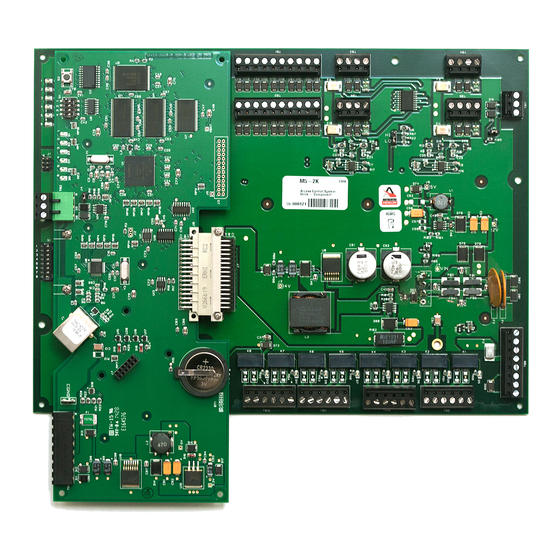

M5-2K Four Reader Interface Board
Installation and Specifications:
1. General:
Mercury's M5-2K board for the Micro/PX-2000, Micro/PXN-2000, and MicroPXNplus
enclosure) is part of Mercury Security's bridging hardware technology and provides four reader interface
ports. The M5-2K board accepts data from readers with F/2F, and supervised F/2F signaling and door
hardware. The M5-2K board provides ten inputs (un-supervised/supervised), eight Form-C control relays,
12 Vdc power supply to power readers and other devices.
The M5-IC controller board can be mounted directly on the M5-2K board or in a Micro5
If the M5-IC is mounted on the M5-2K board, it is powered by the M5-2K board's internal power supply.
Power for the M5-2K board is supplied from an 18 Vac transformer. The M5-2K supports the charging of
an optional 12 Volt, 7 Ah rechargeable sealed lead-acid battery for UPS operation.
This installation manual does not contain the M5-IC controller board configuration information; see
the M5-IC Controller Board Installation and Specifications manual, DOC 10107-0040.
2. Installing the M5-2K Board:
The M5-2K and M5-IC boards replace the current M2000 enclosure's circuit boards.
MOUNTING
HOLES 4X
M5-IC
RESET
SWITCH
M5-IC
DIP SWITCHES
M5-2K
STATUS
LEDs
M5-IC
STATUS LEDs
REPLACE CARD
PULLER WITH
MOUNTING SCREWS,
2 EACH
M5-2K
DIP SWITCHES
CONNECT TO
CHASSIS GROUND
CONNECT TO EARTH
GROUND HERE
NO CONNECTIONS
ON M5-IC TB1
Mercury Security © 2014
2355 MIRA MAR AVE. LONG BEACH, CA 90815-1755, (562)986-9105 FAX (562) 986-9205
TB3, PIN1
TB1, PIN 1
READER 1
INPUTS 1 - 5
TB5, PIN 1
TB2, PIN 1
READER 3
INPUTS 6 - 10
1
2
3
4
5
6
M5-IC
GND
TR-
TR+
S1
1
2
3
4
ON
5
6
7
8
VIN
GND
VIN
GND
VIN
GND
TMPR
PFLT
TB12, PIN 1
TB11, PIN 1
K7 & K8 RELAYS
K5 & K6 RELAYS

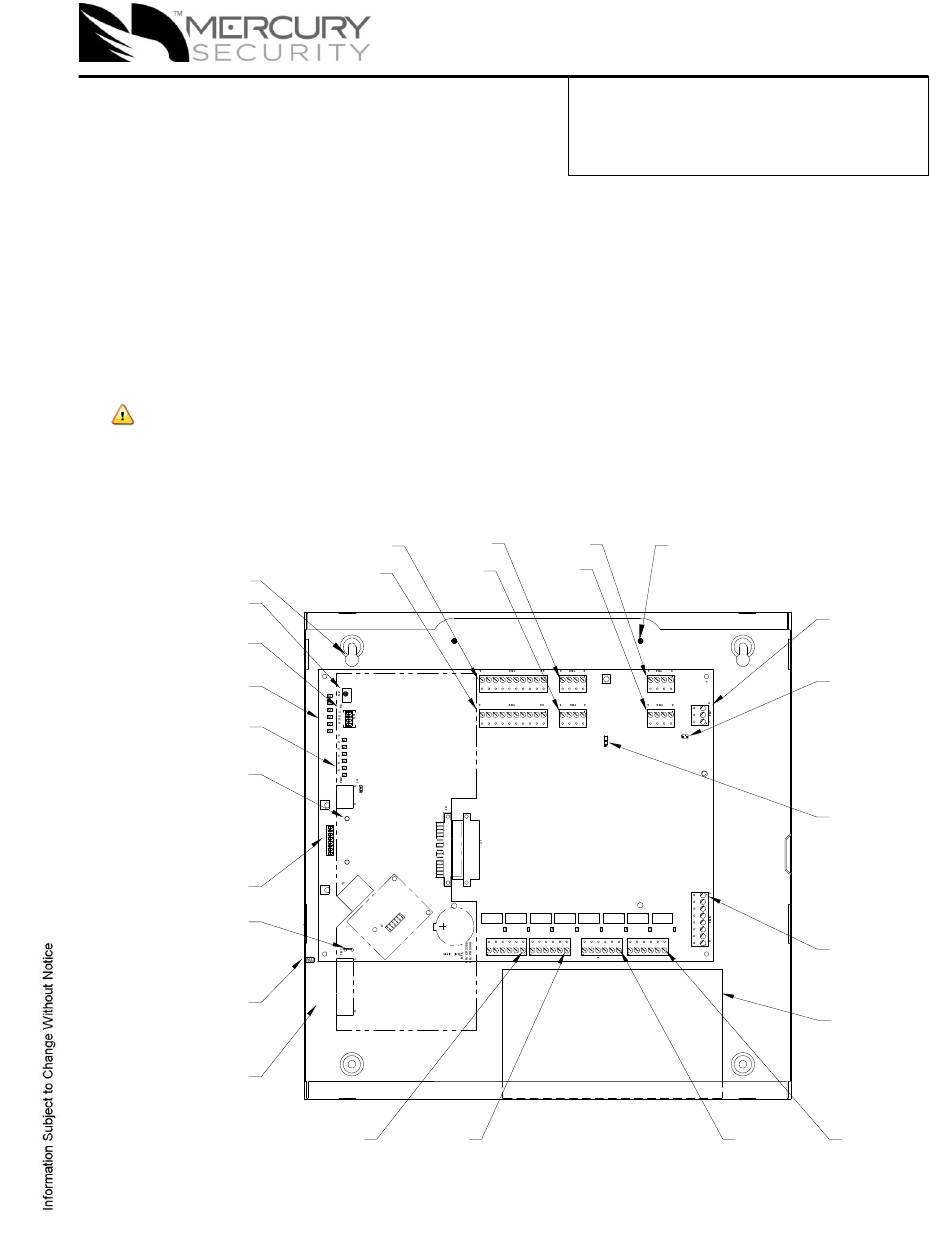

M2000 Enclosure with M5-IC and M5-2K
M5-2K
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
TB4, PIN 1
READER 2
TB6, PIN 1
READER 4
HI
LO
JP2
M5-2K
K8
K7
K6
K5
K4
K3
K2
K1
K8
K7
K6
K5
K4
K3
K2
TB12
TB11
TB10
TB9
6
1
6
1
6
1
6
DOC 10107-0048
REV 1.02
www.mercury-security.com
®
systems (M2000
®
enclosure.
INTERNAL GROUND STUD
2 PLACES
TB7, PIN 1
DOWNSTREAM COMM.
PORT 1, RS-485
JP1, PORT 1 RS-485
TERMINATION
JP1
JP2: SET TO LO
K1
TB8, PIN1
POWER CONNECTIONS
1
12 VOLT BATTERY
TB10, PIN 1
K3 & K4 RELAYS
TB9, PIN 1
K1 & K2 RELAYS
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M5-2K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mercury Security M5-2K

Summary of Contents for Mercury Security M5-2K

  • Page 1 The M5-IC controller board can be mounted directly on the M5-2K board or in a Micro5 enclosure. If the M5-IC is mounted on the M5-2K board, it is powered by the M5-2K board’s internal power supply. Power for the M5-2K board is supplied from an 18 Vac transformer. The M5-2K supports the charging of an optional 12 Volt, 7 Ah rechargeable sealed lead-acid battery for UPS operation.
  • Page 2 3 REQUIRED. RICHO, INC. P/N LMSP-7-01 M5-IC Board The card puller must be removed from the M5-IC before mounting on the M5-2K board. Install two mounting screws in the holes made vacate from the card puller. Mercury Security © 2014...

  • Page 3: Rs-485 Communication Wiring

    3. Input Power, 12 Vdc Output, Tamper Switch, and 12 Volt Battery Wiring: Input power for the M5-2K/M5-IC assembly is provided by a wall mount 18 Vac transformer @ 2.78 A (334 VA) connected to TB8 pins 1 and 2. The internal supply supplies power to the M5-2K/M5-IC assembly, and charging current for a 12 volt, 7 Ah rechargeable battery.

  • Page 4: Dip Switch Usage

    Address 25 Address 26 Address 27 Address 28 Address 29 Address 30 Address 31 115,200 BPS 119,600 BPS 19,200 BPS 38,400 BPS Encrypted communication not required Encrypted communication required Mercury Security © 2014 M5-2K DOC 10107-0048 REV 1.02 Page 4...

  • Page 5: Reader Wiring

    1. Supervised F/2F readers: door contacts and REX inputs are to be wired through the reader 2. F/2F readers: door contacts and REX inputs must be wired to the M5-2K inputs, see Section 9 Typically, the door position monitor switch uses the Normally Close (NC) contact and the REX uses the Normally Open (NO) contact.

  • Page 6: Input Wiring

    When an input circuit is configured for supervision, the M5-2K board also monitors the following abnormal circuit conditions: open circuit, shorted circuit, grounding of either side of the circuit*, or the introduction of a foreign voltage*.

  • Page 7: Important Note

    M5-2K Input Wiring – Supervised and Non-supervised Door position monitor and REX inputs must be wired to the M5-2K when using F/2F readers. EOL resistors are typically two 1K ohm resistors as shown below. The EOL resistors should be installed as close to the switch as possible.
  • Page 8 (12 inches [30cm] maximum recommended). The circuit's effectiveness decreases if it is located further away. Use sufficiently large gauge wire for the load current to avoid voltage loss. M5-2K Relay Terminal Block Definitions: TB9: Relays K1 & K2 TB10: Relays K3 & K4 TB11: Relays K5 &...

  • Page 9: Status Leds

    LED 5: Reader Port 3: Flashes when receiving data on the reader port 3, including supervision acknowledgment LED 6: Reader Port 4: Flashes when receiving data on the reader port 4, including supervision acknowledgment Mercury Security © 2014 M5-2K DOC 10107-0048 REV 1.02...

  • Page 10: Specifications

    13. Specifications: The M5-2K is for use in low voltage, Class 2 Circuits only. Primary power: 18 Vac, ± 15 %, 2.8 A maximum 12 Vdc output 10.8 to 13.2 Vdc, 550 mA maximum UPS battery (optional) 12 volt, 7 Ah rechargeable sealed lead-acid, 1 each supported Battery’s approximate dimensions:...
  • Page 11 This product is not intended for, nor is rated for operation in life-critical control applications. Mercury Security is not liable under any circumstances for loss or damage caused by or partially caused by the misapplication or malfunction of the product. Mercury Security’s liability does not extend beyond the purchase price of the product.
