QUICK START GUIDE
RC400T
Ref. RC400T
Thank you for choosing
up and use your event controller for LivePremier™ 4K/8K multi-screen presentation system within minutes.
WHAT'S IN THE BOX
• 1 x RC400T
• 1 x Power supply cord
• 1 x XLR lamp (optional)
• 1 x Quick start guide*
* User manual and Quick start guides are also available on
OVERVIEW

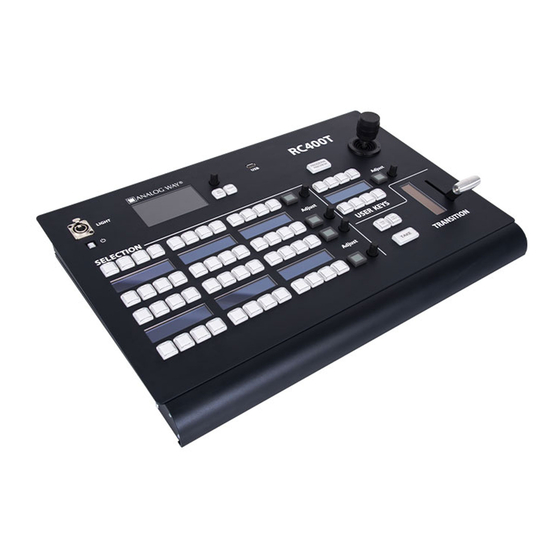

The RC400T event controller has been designed to greatly increase the level of operational efficiency and
to give instant access to the crucial functionalities of the LivePremier™ image processor such as screens,
layers, sources and memories. The RC400T offers 56 user programmable buttons, a high-resolution T-bar
and a three-axis joystick for easy and fast programming (assign source in layers, load memories, etc.).
INSTALLATION
The RC400T has been designed to be used directly on a table. It is equipped with a wrist rest and four anti-
slip rubber feet. The wrist rest can be removed for a recessed installation of the RC400T.
• Recessed installation - Remove the wrist rest
1. Turn the rear panel power switch off and disconnect the power supply.
2. Remove the screws of the wrist rest on both sides of the RC400T using a T10 Torx screwdriver.
3. Safely remove the wrist rest.
The RC400T is ready for recessed installation. Before embedding the RC400T, connect all cables and turn
the rear panel power switch on or make sure they can be accessed.
RC400T dimensions:
- L 570 mm x H 122.5 mm x P 382 mm (W 22.44'' x H 4.82'' x D 15.04'')
FIRMWARE UPGRADE
Download the RC400T updater and the latest LivePremier™ firmware on
1. Put the updater file on a USB drive.
2. Connect the USB drive on the front panel.
3. The updater file is automatically detected. Otherwise, go to Console Control > Update from USB.
4. Extract the updater file.
5. Install the new firmware.
Analog Way
and the RC400T. By following these simple steps, you will be able to set
Go on our website to register your product(s)
Register
and be notified about new firmware versions:
your product
http://bit.ly/AW-Register
www.analogway.com
www.analogway.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Analog way RC400T
Summary of Contents for Analog way RC400T
- Page 1 (assign source in layers, load memories, etc.). INSTALLATION The RC400T has been designed to be used directly on a table. It is equipped with a wrist rest and four anti- slip rubber feet. The wrist rest can be removed for a recessed installation of the RC400T.
- Page 2 CONTROLLER DESCRIPTION • Top area The top area is used mainly for configuring the RC400T (status, network, upgrade, factory reset, etc.). Use the rotary encoder to move the selection and use the buttons to Confirm / Cancel the choices. The Program/Preview key toggles between Program and Preview modes (this key is related to the Selec- tion area).
- Page 3 • Check that the LivePremier™ unit and RC400T have the latest firmware version installed. • Check the network cables. If connecting the RC400T and the LivePremier™ unit directly, make sure to use an Ethernet crossover cable. If a hub or switch is involved, use straight or crossed Ethernet cables.
- Page 4 3. On the Transition area, trigger the transition. The selected Preview Screens are sent to Program. WARRANTY AND SERVICE This Analog Way product has a 3 year warranty on parts and labor (back to factory). Broken connectors are not covered by warranty. This warranty does not include faults resulting from user negligence, special modifications, electrical surges, abuse (drop/crush), and/or other unusual damage.
